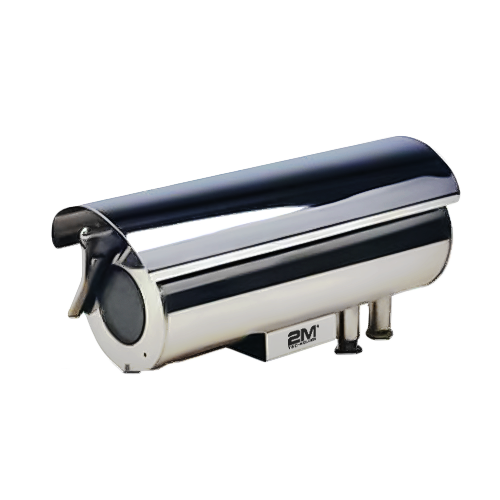

2M Technology 2MEXH-4016WS-L 316L Explosion Proof Integrated Camera with Wiper and Sun Shield

  • IP-68, NEMA-4X Enclosure rating
  • AISI 304 or 316L stainless steel construction (available)
  • Includes wiper and sun shield

Product Documents

Availability:

Out of stock

2M Technology 2MEXH-4016WS-L 316L Explosion Proof Integrated Camera with Wiper and Sun Shield

Features:

  • IP-68, NEMA-4X Enclosure rating
  • Operating temperature range from -40°C to 60°C (-40°F to 140°F)
  • Ex d IIC T6 Gb explosion-proof marking
  • AISI 304/316L stainless steel construction (available)
  • Includes wiper and sun shield
Model                             Material
2MEXH-4016WS AISI 304 stainless steel
2MEXH-4016WS-L AISI 316L stainless steel

Matching Accessories:

2MEXB-2915: Explosion Proof Wall Housing Bracket ( 304 ) 2MEXPTB-3623: Heavy Explosion Proof Pan and Tilt Unit ( 304 ) 2MEXB-2915-L: Explosion Proof Wall Housing Bracket ( 316L ) 2MEXPTB-3623-L: Heavy Explosion Proof Pan and Tilt Unit ( 316L )

Stainless Steel Types

316L

Specifications
Manufacturers Standard En60079-0:2009, En 60079-1:2007, En60079-31:2009 GB3836.1–2000, GB383.2–2000, Gb12476.1-2000
Configuration Mode Front and rear caps with explosin-proof thread
Explosion-proof Mark II2G Ex d IIC T6, Ta: -40°C ≤Ta≤+60° ; II2D Ex IIIC T80°C Db.
IP Ratio IP-68
Operating Temperature -40°C to 60°C (-40°F to 140°F)
Cable Entries 2XG1/2’’ Explosion-proof cable entries, Dia. of inner hole Ø
Outside Dimension ( W x H x L ) ( 450 x 160 x 200 mm ) (15.94 x 6.29 x 7.87 In )
wiper Outside
Weight 9 Kg ( 20 lb )

.

Material .AISI 304 stainless steel 2MEXH-4016WS

AISI 316L stainless steel 2MEXH-4016WS-L

Suitable installation dimension Less than Ø 10.5 cm x 33 cm
Voltage ( Optional ) ( AC110V to AC 240V, 50/60 Hz ) ( AC24V, 50/60 Hz )
Current ( Optional ) ≤500mA
