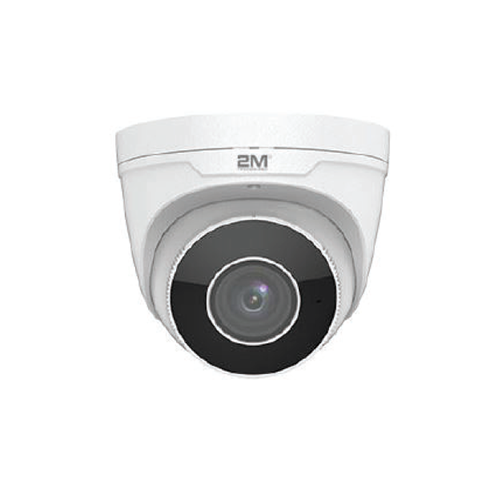

2M Technology 2MTIP-2MIR30ZUAST-P 2MP Starview VF Turret Network IR Camera

  • Super Starlight illumination
  • Smart IR, up to 30m (98ft) IR distance
  • Built-in motorized lens for remote zoom
  • Ultra 265, H.264, MJPEG
  • ONVIF Conformance
  • Support PoE power supply
  • IP67
  • Available with 2.7-13.5mm F1.2 Motorized lens or 2.8-12mm F1.2 Motorized lens

Product Documents

Key Features

Optics

  • Super Starlight illumination
  • Day/night functionality
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Smart IR, up to 30m (98ft) IR distance
  • 2D/3D DNR (Digital Noise Reduction)
  • Built-in motorized lens for remote zoom

Compression

  • Ultra 265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor mode

Network

  • ONVIF Conformance

Structure

  • Support PoE power supply
  • Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
  • Wide voltage range of ±25%
  • IP67
  • 3-Axis
Weight1.48 lbs
Dimensions5.08 × 5.08 × 4.3 in
Series

Professional Series

Resolution

2 Megapixel (1920 x 1080)

Signal Type

Lens

Motorized 2.8-12mm Lens

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Features

Ultra WDR 120DB, Starlight, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input

Behavior Detection

, ,

Edge Storage

,

Ingress Protection

IP67

Camera
Sensor1/2.8″, 2.0 megapixel, progressive scan, CMOS
Lens2.7 ~ 13.5 mm, AF automatic focusing and motorized zoom lens




DORI Distance

Lens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.741.916.88.44.2
13.5309.58 3.841.920.9
Angle of view (H)121.36° ~ 33.51°
Angle of View (V)74.1° ~ 13.2°
Angle of View (O)157.8° ~ 41.2°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 90°Rotate: 0° ~ 360°
ShutterAuto/Manual, shutter time: 1 ~ 1/100000s


Minimum Illumination

Colour: 0.0005Lux (F1.2, AGC ON)

0Lux with IR

Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile


Frame Rate

Main Stream: 2MP (1920*1080), Max 30fps, ; Sub Stream: 2MP (1920*1080), Max 30fps;

Third Stream: D1 (720*576), Max 30fps

9:16 Corridor FormatSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas





Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
RecognitionFace detection, Audio detection
Intelligent IdentificationDefocus, Scene Change, Object Left, Object Moving
Statistical AnalysisPeople counting


General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR
Network


Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
Built-in MicSupported
General


Power

DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.16W
Dimensions (Ø x H)Φ129 x 110mm (Ø5.08” x 4.3”)
Weight0.67kg (1.48lb)
Working Environment-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
Reset ButtonSupported
