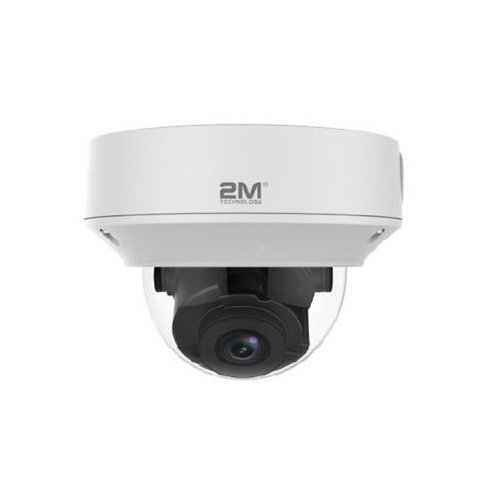

2M Technology 2MVIP-2MIR30Z-E Vandal-resistant Network IR Fixed Dome Camera (DISCONTINUED)
- Smart IR
- 2D/3D DNR
- Triple Streams Compression
- ONVIF Conformance
- IK10 Vandal-resistant
- IP67
Note: Due to our continued product research and development, 2mtechnology Inc. reserves the right to amend all the technical specifications without prior notice.
Product Documents
The 2M Technology 2MVIP-2MIR30Z-E Vandal-resistant Network IR Fixed Dome Camera comes with a 2MP lens. Additionally, the camera features Smart IR technology. This allows for an IR distance out to 30m or 98ft. Further, the camera comes with 2D/3D digital noise reduction to ensure optimal quality footage. The network camera is Ik10 vandal resistant and IP67 rated. Moreover, the network camera offers triple stream compression and day/night functionality.
| Weight | 1.7 lbs |
|---|---|
| Resolution | 2 Megapixel (1920 x 1080) |
| Signal Type | |
| Lens | Motorized 2.8-12mm Lens |
| Series | Essential Series |
| Features | D-WDR, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI |
| Night Vision Distance | 30 Meters (100 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Camera | ||||||||
| Sensor | 1/2.7″, 2.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8 ~ 12mm, manual zoom lens | 2.8 ~ 12mm, motorized zoom lens | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 42 | 16.8 | 8.4 | 4.2 | ||||
| 12 | 180 | 72 | 36 | 18 | ||||
| Angle of View (H) | 116.5° ~ 31.1° | |||||||
| Angle of View (V) | 58.8° ~ 17.3° | |||||||
| Angle of View (O) | 151.5° ~ 38.2° | |||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour: 0.01Lux (F1.6, AGC ON) 0Lux with IR |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| Defog | Digital Defog | |||||||
| WDR | DWDR | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile | |||||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (704*576), Max 30fps |
|||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 2 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
| Interface | ||||||||
| Network | 10M/100M Base-TX Ethernet | |||||||
| Edge Storage | MicroSD, up to 256GB | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 6.5W | ||||||||
| Dimensions (Ø x H) | Φ148 x 111.3mm (Ø5.8” x 4.4”) | |||||||
| Weight | 0.92kg (2.0lb) | |||||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Ingress Protection | IP67 | |||||||
| Vandal Resistant | IK10 | |||||||
| Reset Button | Supported | |||||||
