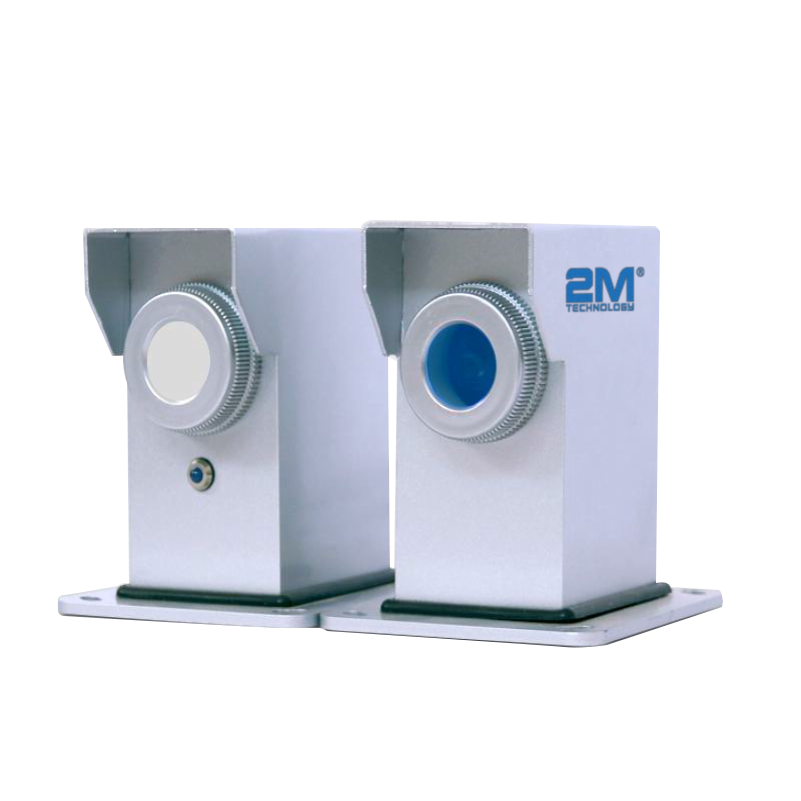

2M1PLD Miniature Laser Beam Perimeter Detector

  • 1x laser Detectors
  • 4.7″ in. tall
  • Laser wave length: 650nm, 808nm, 980nm
  • Guard distance 0 ~ 500m/1640.42ft
  • Response time 5ms-500ms (five gears adjustable)
  • Laser light source: Type A/Class Ⅰ

This is a special order item. Allow 4-6 weeks for delivery.

Product Documents

2M1PLD Miniature Laser Beam Perimeter Detector

Features:

  • 1x laser Detector
  • 4.7″ in. tall
  • Laser wave length: 650nm, 808nm, 980nm
  • Guard distance 0 ~ 500m/1640.42ft
  • Working voltage DC10-30V or  AC220V (customized)
  • Product size (LxWxH) 60 x 80 x 120 (mm)/2.4” x 3.1” x 4.7” (in.)
  • Alarm time 2s ± 1s (1-30s optional)
  • Response time 5ms-500ms (five gears adjustable)
  • Working environment -40°C to 70°C
  • Protection class IP67
  • Laser light source: Type A/Class Ⅰ

Detection Ranges Available:

Model NumberDetection Range
2M1PLD-100100m/ 328ft
2M1PLD-300300m/1146ft
2M1PLD-500500m/1911ft

Specifications

Weight471 lbs
Dimensions2.4 × 3.1 × 4.7 in
Detector Height

4.7" inches

Materials

Model2M1PLD-1002M1PLD-3002M1PLD-500
Laser Wave Length650nm808nm980nm
Detect Range100m/ 328ft300m/ 1146ft500m/ 1911ft
Guard Distance0 – 500m / 0 – 1640ft
Working VoltageDC10-30V or AC220V (customized)


Product Size

60mm (L) x 80mm (W) x 120mm (H) 236in (L) x 314in (W) x 472in (H)
Alarm Time2s ± 1s (1-30s optional)
Response Time5ms-500ms (five gears adjustable)
Working Environment Temperature-40 to 70 °C / -40 to 158 °F
Protection ClassIP67
Laser Light Source TypeA safety laser light source, class I
MTBF120,000H
MaterialAluminum alloy
Product Weight214kg / 471lbs
Alarm ModeBeam blocking alarm
Alert LevelSingle-Layer alert
