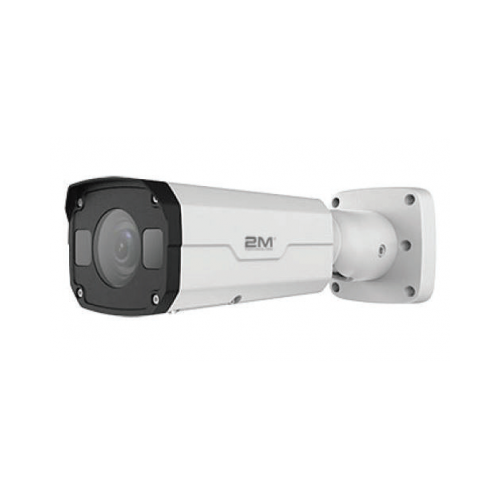

2MBIP-2MIR50VUA-P 2MP VF Network IR Bullet Camera (DISCONTINUED)
- Sensor: 1/2.8?, progressive scan, 2.0 megapixel, CMOS
- Shutter: Auto/Manual, 1~1/100000 s
- WDR: 120dB
- IP Rating: IP67
Product Documents
2M brings you our 2MP VF Network IR Bullet Camera. This camera comes fully loaded with many advanced features. For example, the product comes with 2D/3D DNR (Digital Noise Reduction). This helps to remove noise interference from the camera signal. In addition to this feature, the camera offers Smart IR illumination to help ensure the best quality images. Lastly, the device supports PoE power supply.
Key Features
Optics
- Day/night functionality
- Smart IR, up to 50m (164ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- 2D/3D DNR(Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- IP67
- IK10 vandal resistant
- 3-Axis
| Weight | 2.2 lbs |
|---|---|
| Series | Professional Series |
| Resolution | 2 Megapixel (1920 x 1080) |
| Signal Type | |
| Lens | Fixed 2.8mm Lens |
| Night Vision Distance | 50 Meters (165 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Features | Ultra WDR 120DB, Audio Input |
| Alarm I/O | |
| Behavior Detection | |
| Edge Storage | |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Camera | |||||||
| Sensor | 1/2.8″, progressive scan, 2.0Megapixel, CMOS | ||||||
| Lens | 2.8~12mm@F1.6 | ||||||
|
DORI Distance |
Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||
| 2.8mm | 45 | 18 | 9 | 4.5 | |||
| 12mm | 192.9 | 77.1 | 38.6 | 19.3 | |||
| Angle of View(H) | 94.0° ~ 28° | ||||||
| Angle of View (V) | 56.7°~14.4° | ||||||
| Angle of View (O) | 122.2°~34.4° | ||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, 1~1/100000s | ||||||
|
Minimum Illumination |
Colour: 0.002 Lux (F1.6, AGC ON)
0 Lux with IR |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >52dB | ||||||
| IR Range | Up to 50m (164 ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120 dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
|
Frame Rate |
Main Stream:2MP (1920×1080): Max. 30 fps; Sub Stream: 2MP (1920×1080): Max. 30 fps; Third Stream:D1 (720×576): Max.30 fps | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Two-way audio | Supported | ||||||
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Behavior Detection | Intrusion, cross line, motion detection |
| Intrusion | Enter and loiter in a pre-defined virtual region |
| cross line | Cross a pre-defined virtual line |
| motion detection | Moving within a pre-defined virtual region |
| Recognition | Face detection,Audio detection |
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving |
| Statistical Analysis | People counting |
|
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR |
| Network | |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Interface | |
|
Audio I/O |
Audio cable |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 1/ 1 |
| Network | 1 RJ 45 10M/100M Base-TX Ethernet |
| General | |
|
Power |
12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 9W | |
| Dimensions (L × W × H) | 253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”) |
| Weight | 1.0kg (2.2lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing) |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
