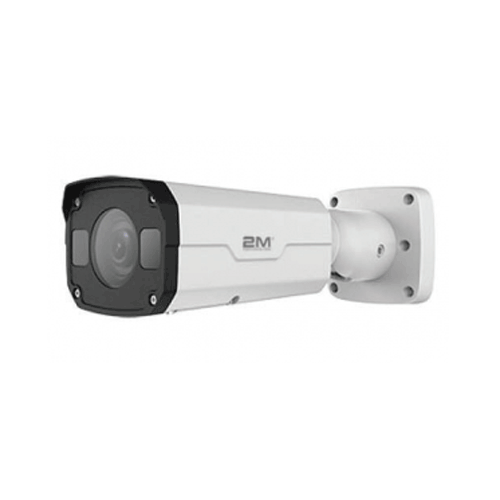

2MBIP-4KIR50ZUA-P 8MP VF Network IR Bullet Camera

WDR: 120dB
IP Rating: IP67
Power Consumption: Max 10W
Shutter: Auto/Manual, 1/6~1/100000 s
Sensor: 1/2? progressive scan, 8.0 megapixel, CMOS

Product Documents

The 2MBIP-4KIR50ZUA-P 8MP VF Network IR Bullet is a smart serviceable surveillance camera. The product comes with 8 megapixel resolution recording and “Smart IR” illumination to help optimize the user’s experience when shooting indoors and outdoors. In addition, the camera includes 2D/3D DNR (Digital Noise Reduction) and up to 120 dB Optical WDR (Wide Dynamic Range). Lastly, the IR Bullet Camera has a durability rating of IP67.

Key Features

Optics

  • Day/night functionality
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Smart IR, up to 50m (164 ft) IR distance
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • 2D/3D DNR(Digital Noise Reduction)

Compression

  • Ultra 265, H.265, H.264, MJPEG
  • Embedded smart algorithm Triple streams
  • ROI (Region of Interest) 9:16 corridor mode

Network

  • ONVIF Conformance

Structure

  • Support PoE power supply
  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
Weight 1.28 lbs
Dimensions 5.76 × 3.4 × 2.8 in
Series

Professional Series

Resolution

4 Megapixel (2592 x 1520)

Signal Type

Lens

Motorized 2.8-12mm Lens

Night Vision Distance

50 Meters (165 feet)

Night Vision Type

Infra Red (IR) LED

Features

Ultra WDR 120DB, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input, 2 Way Audio

Ingress Protection

IP67

Alarm I/O

Behavior Detection

, ,

Edge Storage

,

Camera
Sensor 1/2″, 8.0 megapixel, progressive scan, CMOS
Lens 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63 25.2 12.6 6.3
12 270 108 54 27
Angle of View (H) 114.8° ~ 47.3°
Angle of View (V) 75.3° ~ 20.4°
Angle of View (O) 141.2° ~ 55.8°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.003Lux (F1.5, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 50m (164ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 8MP (3840*2160), Max 20fps; 5MP (2592*1944), Max 30fps; 5MP (2944*1656), Max 30fps;
4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/O Audio cable
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output 1 BNC, impedance 75Ω; amplitude 1V [p-p]
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 10W
Dimensions (L × W × H) 253.4 × 86.4 × 78.7mm (57.6” × 3.4” × 2.8”)
Weight 1.0kg (2.2lb)
Working Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
