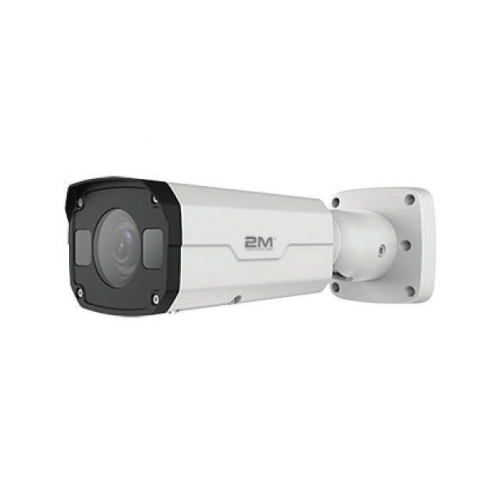

2MBIP-4MIR30ZUA-P 4MP VF Network IR Bullet Camera

  • Day/night functionality
  • Smart IR, up to 30m (98 ft) IR distance
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • 2D/3D DNR (Digital Noise Reduction)
  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest) 9:16 corridor mode Customized OSD

Product Documents

The 4MP VF Network IR Bullet Camera is an effective professional security camera. The product offers many beneficial features to ensure the best user experience with the camera. For example, the device is 4 megapixels and has the ability to capture images in day and night settings. In addition, the Bullet camera comes with 2D/3D DNR (Digital Noise Reduction) as well as “Smart IR” illumination features.

Key Features

Optics

  • Day/night functionality
  • Smart IR, up to 30m (98 ft) IR distance
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest) 9:16 corridor mode Customized OSD

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
  • IK10 vandal resistant
  • 3-Axis
Weight 2.2 lbs
Series

Professional Series

Resolution

4 Megapixel (2592 x 1520)

Signal Type

Lens

Motorized 2.8-12mm Lens

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Features

Ultra WDR 120DB, Starvis, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input, 2 Way Audio

Alarm I/O

Behavior Detection

, ,

Edge Storage

,

Ingress Protection

IP67

Vandal Resistant

IK10

Camera
Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63 25.2 12.6 6.3
12 270 108 54 27
Angle of View (H) 91° ~ 27°
Angle of View (V) 54.4° ~ 13.7°
Angle of View (O) 118.3° ~ 33.2°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Color: 0.005Lux (F1.4, AGC ON) 0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52 dB
IR Range Up to 30m (98ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/O Audio cable
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 9W
Dimensions (L × W × H) 253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”)
Weight 1.0kg (2.2lb)
Working Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
