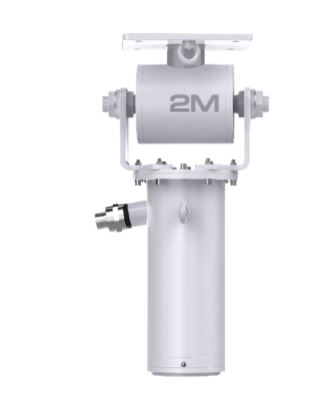

2MEC16-5MP5X Explosion-Proof 5MP Network Crane Camera 5X Zoom with Built-In Heater & Wiper

Key Features:

  • Material: 304/316 Stainless Steel
  • Heater Control: Built-in (optional)
  • Wiper: Optional
  • Mount: On crane
  • Camera Resolution: 5MP
  • Lens Type: Motorized
  • IP Rating: IP68

Product Documents

Spec Sheet

Add to Wishlist
Compare

Add to Wishlist
Compare
  • Dimensions (W x H x L): 526 x 200 x 249.6 mm
  • Weight: 25.9 kg
  • Material: 304/316 Stainless Steel
  • Heater Control: Built-in (optional)
  • Wiper: Optional
  • Mount: On crane
  • IP Rating: IP68
  • Impact Speed: 5m/s
  • Swing Angle: ≤2.5°
  • Return Back Time: ≤1.5s
  • Ambient Temperature: -25 to +60℃
  • Air Pressure: 80Kpa to 106Kpa
  • Relative Humidity: ≦95% (no condensation)
SKU: 2MEC16-5MP5X Categories: ,

Specifications:

  • Dimensions: 526 x 200 x 249.6 mm (W x H x L)
  • Weight: 25.9 kg Material: 304/316 Stainless steel
  • Heater Control: Built-in (optional)
  • Wiper: optional
  • Mount: On crane
  • IP: IP68
  • Impact speed: 5m/s
  • Swing angle: ≤2.5°
  • Return back time: ≤1.5s
  • Ambient temperature: -25 to +60℃
  • Air pressure: 80Kpa to 106Kpa
  • Relative Humidity: ≦95% (no condensation)

Camera

  • Image sensor: 1/2.8” Progressive Scan CMOS
  • Max. Resolution: 5MP
  • Electronic Shutter: Auto/Manual, 1/5 ~ 1/20,000s
  • Min. illumination:
    • Color: 0.03 Lux @ (F1.6, AGC ON)
    • B/W: 0 Lux @ (IR LED ON)
  • Day & Night: IR cut filter
  • Lens type: Motorized
  • Iris: Fixed iris
  • Focal length: 2.7 ~ 13.5 mm
  • F Number: F1.6
  • Angle of view: H: 87.5°~ 26°, V: 64.8°~ 19.9°

Video

  • Streaming Capability: 3 streams
  • Stream/frame rate:
    • Stream1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @25/30fps
    • Stream2: D1, VGA, CIF @ 25/30fps
    • Stream3: VGA, CIF, QVGA @25/30fps
  • Bit Rate Control: CBR/VBR
  • Bit Rate:
    • Stream1: 200kbps~12Mbps
    • Stream2: 100kbps~6Mbps
    • Stream3: 100kbps~3Mbps
  • Region of Interest: Off/On (8 Zone, Rectangle)
  • Smart Encode: Support


  • Image Adjustment: Brightness, Sharpness, Contrast, Saturation adjustable
  • Aisle mode: Support
  • Mirror: Support
  • White balance: Auto/manual
  • Day/Night setting: Auto, Day, Night, Time
  • Smart IR: Support
  • Noise reduction: 2D/3D DNR
  • Image enhancement: HLC, BLC, Defog
  • Wide dynamic range: True WDR
  • S/N ratio: 55db
  • Motion Detection: Support
  • Privacy Masking: Support

Audio

  • Compression: G.711, RAW _PCM
  • Bit Rate: 8kbps, 16kps, 64kbps

Network

  • Protocols: IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL
  • Interoperability: ONVIF, SDK, CGI
  • Max. User Access: 10 users
  • Web viewer: <IE11, Chrome, Firefox, Microsoft Edge
  • Interface:
    • Network interface: 1 Ethernet (10/100 Base-T) RJ-45 Connector
    • Audio/alarm interface: 1ch Input, 1ch Output
  • Reset button: support
  • SD Card slot: built-in, up to 256 GB

Electrical

  • Power supply: AC100-240V, AC24V, PoE, DC12V
  • Power consumption: Max 25 W
