Features
Engineered for Class II, Division 1 Hazardous Dust Locations

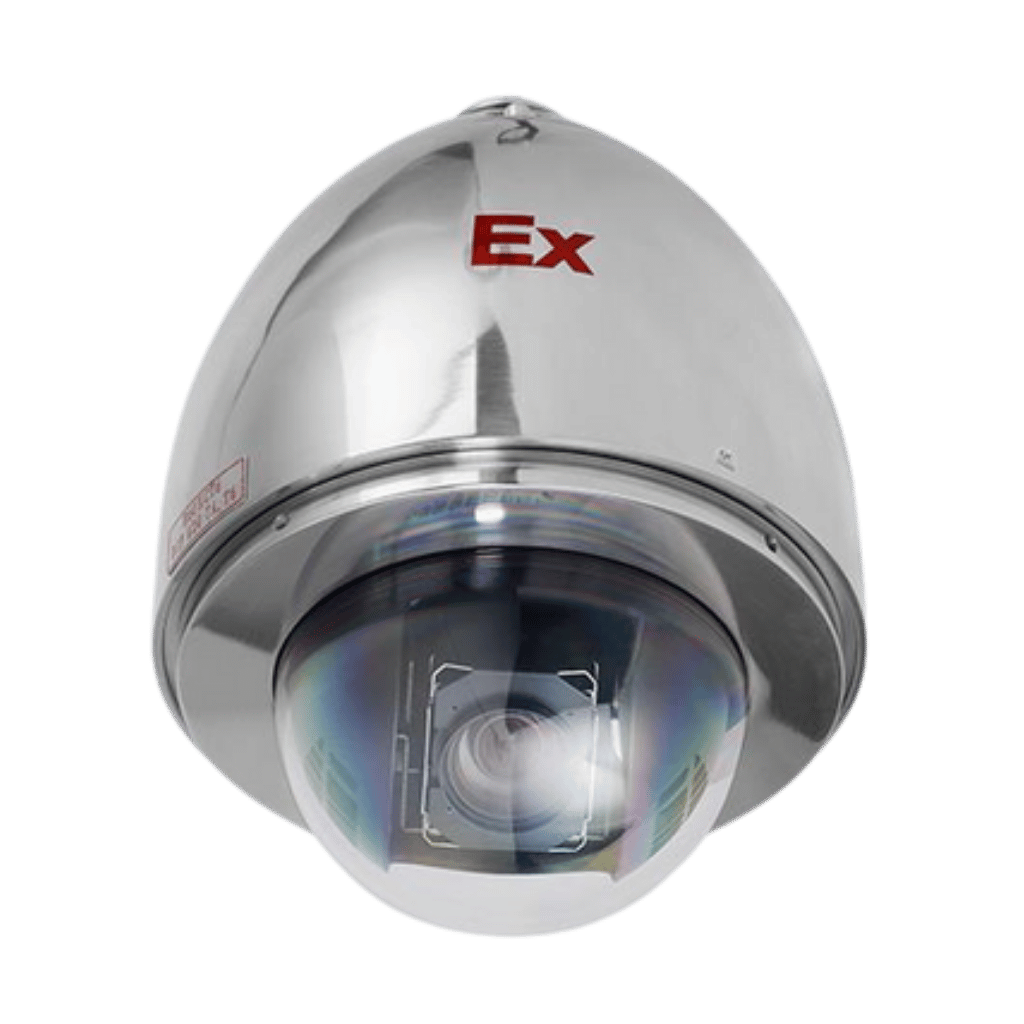

The 2MEXH-2430 is designed specifically for facilities where combustible dust is present during normal operations, making it fully compliant with Class II, Division 1 requirements. Whether the environment includes grain dust, metal powders, carbon dust, flour, sugar, pharmaceuticals, or polymer particulates, this housing provides safe, certified containment for PTZ camera modules.
Its explosion-proof certification, Ex d IIC T6 Gb / Ex tD A21 IP68 T80°C, ensures the enclosure can withstand and contain internal ignition, preventing dust ignition in high-risk locations such as mills, silos, blending rooms, bagging lines, and powder-processing areas.
Rugged Stainless-Steel Housing for Dust-Intensive Environments
Constructed from 304/316L stainless steel, the 2MEXH-2430 resists corrosion, abrasion, and dust accumulation common in Class II, Div 1 zones. With optional electropolishing, the surface offers enhanced resistance to corrosive chemicals found in industrial processing.
The high-performance sealing structure provides:
- IP68 dust-tight and submersion protection
- Full environmental resistance against fine particulates
- Reliable operation in –30°C to +70°C (–22°F to 158°F)
- Humidity tolerance up to 95% RH
This ensures continuous operation in dusty production plants, grain storage facilities, industrial mixers, and powder-handling systems.
Full PTZ Capability for Wide-Area Dust Hazard Monitoring
The integrated PTZ mechanism offers smooth, industrial-grade positioning:
- 360° continuous horizontal rotation
- –90° to +90° vertical tilt
- High-speed movement: 1–300°/s pan, 1–180°/s tilt
- 256 programmable presets
- Automatic cruise and patrol modes
This makes it ideal for monitoring conveyors, dust collectors, hoppers, packaging lines, silo tops, ignition-risk equipment, and busy industrial zones where constant movement tracking is required.
Explosion-Proof Protection for Internal Camera Modules
Designed as a universal housing for PTZ camera cores, the 2MEXH-2430 safely encloses the internal camera and wiring using:
- Reinforced dome enclosure
- Sealed M25 cable entry
- Integrated 0.8 m armored cable
- AC 24V power support with ≤2A current
Every component is built to maintain compliance in Class II, Division 1 locations while ensuring optimal imaging performance.
Versatile Installation Options for Industrial Facilities
The housing supports multiple mounting configurations for complex environments:
- Wall-mount installation
- Suspended/lifting installation
Its flexible installation approach allows deployment on towers, silos, elevated platforms, processing lines, and hazardous-area building exteriors.
Ideal Applications (Class II, Div 1 Dust Environments)
- Grain, flour, feed, and agricultural processing
- Sugar, cocoa, coffee, and food powder facilities
- Metal powder & machining dust operations
- Pharmaceutical and chemical powder blending
- Plastics, resin, and polymer dust production
- Sawmills, woodworking, pellet plants
- Cement, gypsum, and mineral processing
- Battery manufacturing (carbon & metal dust)
