Features
DESCRIPTION

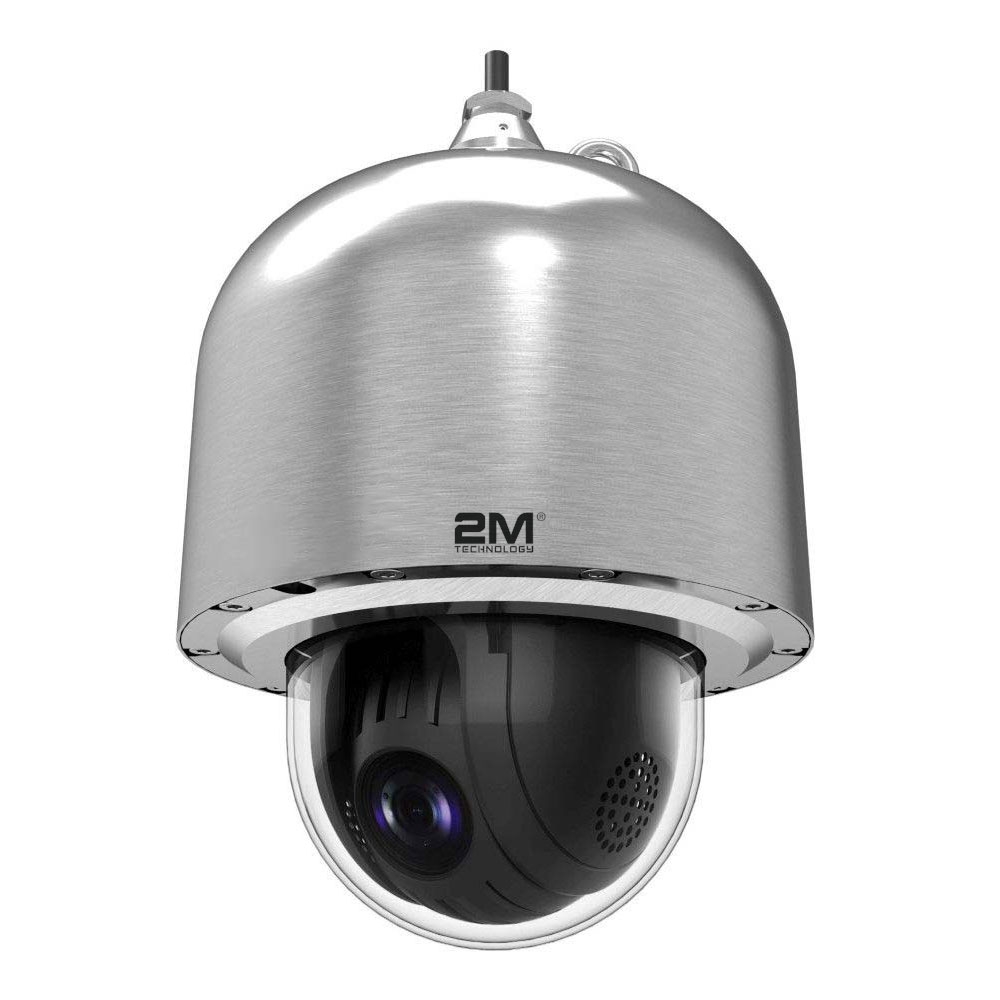

2MEXHP-20-L Series Explosion-proof Dome Camera (Camera for short) is used in the places, where is classified as Zone1 or Zone2, contained Group II-A, Group II B, and Group II C gases, contained the mixture circumstance with the explosive gas atmospheres and flammable mists or dust, where is classified as Zone21 or Zone 22. Temperature group T1~T6. Its explosion-proof quality is in accordance with EN60079-0:2009, EN60079-1:2007, EN60079-31:2009 standard.
Explosion-proof Mark: EX112G Ex d IIC T6, Ta:-40°C≤Ta≤+60°C; II2D Ex t IIIC T80°C Db.
Dome camera has integrated internal structure with compact circuit design and little heat release for operation in high temperature. Based on high integration, It achieves functions of high-speed tracking, 360° endless rotation, 180° auto flips, random scan, pattern track memory, and On-Screen-Display menu, etc. The Pan/Tilt adopts stable step motor driving to achieve accurate image catching and multi-speed ability, suitable for monitoring large areas. As Ex high-end surveillance product, it has powerful functions, stable operation, and easy installation with good cost performance.
FEATURES
- Dual-cast stainless steel design, used in either indoor or outdoor locations
- Omni-directional Pan/Tilt has stable operation, without dithering and noises
- Integrated multi-protocol decoder controller
- Dome enclosure adopts GE aerospace materials to achieve 99% above light transmittance; Fit for all kinds of the atmosphere; More than 10 years’ design lifetime
- Optional Network communication/signal transmission by optical cable
- Embed in TVS surge and lightning protector to prevent pulse signal attack
- Optional quick fit interface, with hotplug function
- Electric conduction link with ALPS structure to attain 10,000,000 rpm service life
- Compatible with all the controlling devices such as DVR, matrix, etc.
- Running track memory function: can memory a certain PTZ operate process within the 40s, no data lost during power shortage
- Auto-reposition, Soft-address edit, Long focus speed limited, Alarm function
