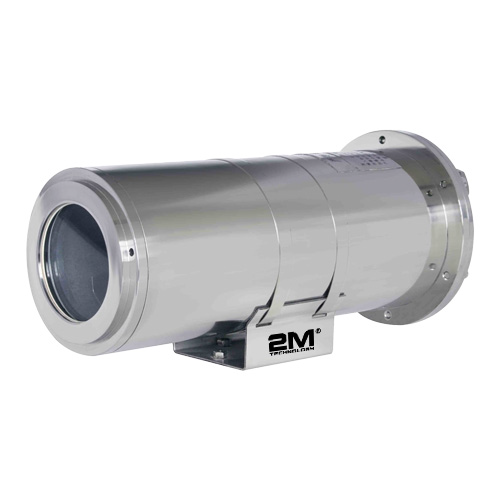

2M Technology 2MEXH-3616-L Explosion Proof Camera Housing
REQUEST QUOTE (for best price)
- IP-68, NEMA-6P Enclosure rating
- Operating temperature range from -25°C to 60°C (-13°F to 140°F)
- Ex d IIB T6 Gb explosion-proof marking
- AISI 304 or 316L stainless steel construction (available)
- Brand New Product with 1 Year Warranty
- Free Technical Support on Products bought from 2M Technology
- Note: This is a special order item and may take 4-6 weeks for delivery
Product Documents
Downloads
The 2MEXH-3616-L Explosion Proof Camera Housing has an IP68 rating and a NEMA-6P enclosure rating. This housing can be used in a hazardous environment to prevent explosions and prevent damage to an enclosed camera. There is ( 260 x 80 x 80 mm ) (10.24 x 3.15 x 3.15 In ) internal space and a total dimension of ( 365.5 x 163 x 169.5 mm ) (14.39 x 6.42 x6.67 In ).
Features:
- IP-68, NEMA-6P Enclosure rating
- Operating temperature range from -25°C to 60°C (-13°F to 140°F)
- Ex d IIB T6 Gb explosion-proof marking
- AISI 304 or 316L stainless steel construction (available)
| Weight | 12.13 lbs |
|---|---|
| Stainless Steel Types | |
| Country of Origin | China |
| Specifications | |
| Atmospheric Pressure | 80 kPa 106 kPa |
| Operating Ambient Temp | -25°C to 60°C (-13°F to 140°F) |
| Relative Humidity | 5 % to 95 % non-condensing |
| Input Power | 220 V AC, 50 Hz (optional )
. |
| Protection rating | Ex d IIB T6 Gb Explosion-proof marking IP68, NEMA-6P enclosure rating |
| Dimensions ( W x H x L ) | ( 365.5 x 163 x 169.5 mm ) (14.39 x 6.42 x6.67 In ) |
| Internal Usable Size ( W x H x L ) | ( 260 x 80 x 80 mm ) (10.24 x 3.15 x 3.15 In ) |
| Window Viewing Area (Ø) | 79mm (3.11 in) |
| Weight | 5.5 Kg (12.13 lb )
. |
| Material | .AISI 304 stainless steel 2MEXH-3616WS
AISI 316L stainless steel 2MEXH-3616WS-L |
| Heater Control | On at 1 °C ± 3 °C (34 °F ± 5 °F) (optional) |
