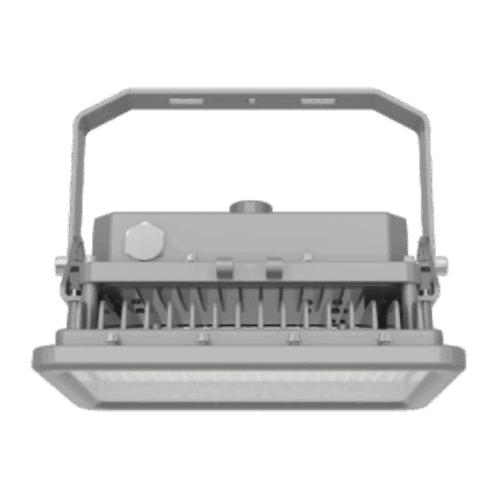

2MEXL-FA1 Explosion Proof LED Floodlight (60–100W)

SKU: 2MEXL-FA1
  • Available Power Ratings: 60W / 80W / 100W
  • Lumen Output: 8400 Lm / 11200 Lm / 14000 Lm
  • Luminous Efficacy: 140 Lm/W
  • Protection Ratings: IP66 / IP67 / IK08 (glass cover) / IK10 (wire guard)
  • Mounting Options: Ceiling, Wall, Hook, Pole, Stanchion, Trunnion (CID2 only)

Features

Rugged Floodlighting for Hazardous Industrial Zones

The 2MEXL-FA1 Explosion-Proof LED Floodlight (60–100W) is designed for use in hazardous environments where explosive gases or dust may be present, including Class I, Division 2 (CID2) and Zone 2/21/22 areas. Ideal for refineries, chemical plants, grain silos, and offshore platforms, it delivers powerful and uniform illumination across wide areas.

The fixture features a die-cast aluminum body, tempered glass lens, and stainless steel hardware to withstand corrosion, impact, and extreme weather. Rated IP66/IP67 with IK08 (glass cover) or IK10 (with wire guard) impact resistance, this floodlight is purpose-built for high-risk industrial settings.

High Efficiency and Wide Beam Coverage

Available in 60W, 80W, or 100W, this floodlight offers up to 14,000 lumens with an outstanding 140 lm/W efficacy, significantly reducing energy usage without compromising brightness.

Choose from multiple beam angles (40°, 60°, 90°, 120°) to suit the lighting layout of open yards, wall-mounted zones, and targeted work areas. A CCT range of 3000K–6500K and CRI >70 ensure high visibility and clear color rendering for operational safety.

Optional 0–10V dimming enables adjustable output levels to match specific site requirements.

Built to Withstand Extreme Environments

This floodlight operates reliably in challenging temperature ranges:

  • CID2 Areas: -40°C to +40°C (-40°F to +104°F)
  • Zone 2/21/22 Areas (T3): -40°C to +55°C (-40°F to +131°F)

With L70 lumen maintenance exceeding 78,000 hours at 55°C, it reduces maintenance frequency in inaccessible or remote locations.

Multiple Mounting and Wiring Options

Designed for flexibility, the fixture supports a wide variety of mounting styles, including ceiling, wall, hook, pole, trunnion, and stanchion (varies by certification type).

Cable Entry Options:

  • CID2: Side (3/4″ NPT standard; optional M20, M25, 1/2″ NPT), Top (3/4″ NPT standard)
  • Zone 2/21/22: Side (M20 standard; optional M25, 1/2″ NPT, 3/4″ NPT), Top (3/4″ NPT standard)

A gray RAL7040 finish and optional visor complete the robust, industrial-grade design.

Key Specifications:

  • Wattage Options: 60W / 80W / 100W
  • Lumen Output: 8400 / 11200 / 14000 lumens
  • Efficacy: 140 lm/W
  • CCT Range: 3000K – 6500K
  • Beam Angles: 40°, 60°, 90°, 120°
  • CRI: >70
  • Dimming: 0–10V optional
  • Housing: Die-cast aluminum
  • Lens: Tempered glass & polycarbonate
  • Protection: IP66 / IP67 / IK08 / IK10
  • Ambient Temperature:
    • CID2: -40°C to +40°C
    • Zone 2/21/22: -40°C to +55°C
  • Mounting: Ceiling, Wall, Hook, Pole, Trunnion, Stanchion
  • Cable Entry Options: Multiple NPT/M-thread types (side/top)
  • Lumen Maintenance: L70 >78,000 hours @55°C
  • Warranty: 5-Year Standard Warranty

Applications:

  • Oil refineries and petrochemical plants
  • Grain handling and storage facilities
  • Chemical processing and loading terminals
  • Offshore platforms and shipyards
  • Mining operations
  • Hazardous warehouses and staging zones

Specifications

Light Type

LED

Hazardous Area Type

Class I, Div 2, Class II, Div 1, Class II, Div 2, Zone 2, Zone 21, Zone 22

Light Power

100W, 60W, 80W

Lumen Output

8,400 Lm, 11,200 Lm, 14,000 Lm

Luminous Efficacy

140 Lm/W

Ingress Protection

IP66, IP67

Vandal Resistant

IK10, IK08

Country of Origin

China
