Features
Ultra-Bright Floodlight for Large-Scale Hazardous Locations

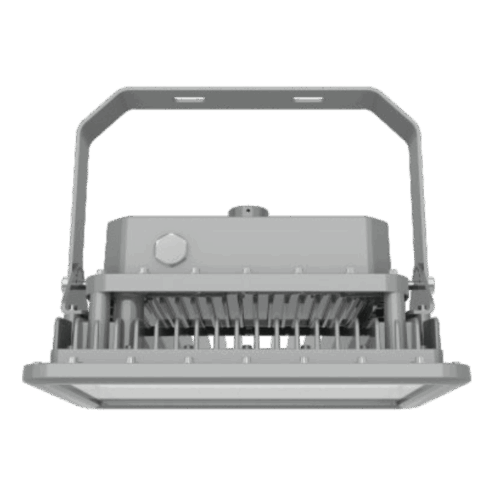

The 2MEXL-FA4 Explosion-Proof LED Floodlight (250–400W) is designed for maximum brightness in industrial areas where explosive gases, vapors, or combustible dusts may be present. Certified for Class I, Division 2 (CID2) and Zone 2/21/22, this fixture is ideal for oil refineries, LNG facilities, high-risk manufacturing, and other Class-rated locations that demand intense and reliable lighting.
Made with die-cast aluminum housing, tempered glass & PC lens, and stainless steel hardware, the fixture is protected by IP66/IP67 ingress ratings and IK08/IK10 impact resistance. A durable visor is also available to minimize glare and improve beam direction.
Extreme Output, High Efficiency
With models in 250W, 300W, and 400W, this light outputs up to 56,000 lumens at 140 lumens per watt, making it one of the most powerful explosion-proof LED solutions available. Choose from beam angles of 40°, 60°, 90°, or 120° depending on your application—whether spotlighting narrow zones or flooding large open areas.
The fixture offers CCT options from 3000K to 6500K and CRI >70, ensuring clarity in both visual inspections and general illumination tasks.
Optional 0–10V dimming allows tailored control to reduce energy consumption without compromising performance.
Wide Compatibility and Configurable Cabling
Compatible with both 120–277 VAC and 277–480 VAC (CID2) or 100–277 VAC (Zone rated), this floodlight supports flexible site installations.
Cable Entry Options:
- CID2: Side (3/4″ NPT standard; optional M20, M25, 1/2″ NPT) | Top: 3/4″ NPT
- Zone 2/21/22: Side (M20 standard; optional M25, 1/2″ NPT, 3/4″ NPT) | Top: 3/4″ NPT
Mounting Types include ceiling, wall, hook, pole, and stanchion for maximum adaptability across industrial sites.
Engineered for Heat and Hazard Zones
- CID2 Ambient Ratings:
- 250–300W: -40°C to +50°C (-40°F to +122°F)
- 250–400W: -40°C to +40°C (-40°F to +104°F)
- Zone 2/21/22 Ambient Rating: -40°C to +55°C (-40°F to +131°F)
With a lumen maintenance of L70 > 78,000 hours @55°C, this light minimizes downtime and extends operational life in the harshest conditions.
Key Specifications:
- Power Options: 250W / 300W / 400W
- Max Lumen Output: 56,000 lumens
- Efficiency: 140 lm/W
- Color Temperature: 3000K–6500K
- CRI: >70
- Beam Angles: 40°, 60°, 90°, 120°
- Dimming: 0–10V optional
- Emergency Backup: Not available
- Protection: IP66 / IP67 / IK08 (glass) / IK10 (with wire guard)
- Housing: Die-cast aluminum
- Lens: Tempered glass + PC
- Ambient Temp Range:
- CID2: Up to +50°C (250–300W), +40°C (400W)
- Zone 2/21/22: Up to +55°C
- Mounting: Ceiling, Wall, Hook, Pole, Stanchion
- Cable Entries: CID2 & Zone options available
- Warranty: 5-Year Standard
- Lumen Maintenance: L70 > 78,000 hours @55°C
Applications:
- Oil & gas terminals
- Chemical refineries
- Power plants
- Grain silos and mills
- Paint booths
- Hazardous zone warehouses
- LNG & petrochemical facilities
- Offshore marine platforms
