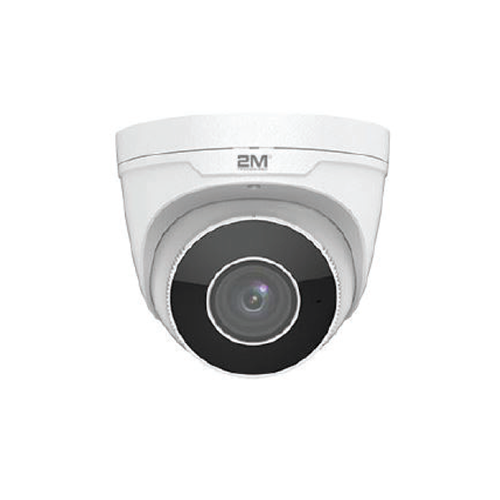

2MTIP-4KMIR30ZUA-P 8MP WDR (Motorized) VF Eyeball Network IR Camera

  • Sensor: 1/2″ progressive scan, 8MP CMOS
  • Shutter: Auto/Manual, 1/6~1/100000 s
  • Power Supply: 12 V DC±25% / PoE (IEEE802.3 af)
  • WDR: 120dB WDR

Note: Due to our continued product research and development, 2m technology Inc. reserves the right to amend all the technical specifications without prior notice.

Product Documents

This 8MP VF Eyeball Network IR Camera is designed for professional shooting in indoor or outdoor environments. The product has many features to increase usability and performance of the device. For example, the camera includes PoE power supply support along with Optical glass window with higher light transmittance. The day/night capabilities allow the “Smart IR” illumination to capture images in areas up to 98 feet IR distance. In addition, the Eyeball IP IR Camera comes with IR anti-reflection window to increase the infrared transmittance and 2D/3D DNR (Digital Noise Reduction) features as well.

Key Features

Optics

  • Day/night functionality
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Smart IR, up to 30 m (98 ft) IR distance
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265, H.265, H.264, MJPEG
  • smart algorithm
  • Triple streams
  • ROI (Region of Interest)
  • 9:16 corridor mode

Network

  • ONVIF Conformance

Structure

  • Support PoE power supply
  • Wide temperature range: -40°C to 60°C (-40°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
Weight1.48 lbs
Dimensions5.08 × 5.08 × 4.3 in
Series

Professional Series

Resolution

4k – 8 Megapixel (3840 x 2160)

Signal Type

Lens

Motorized 2.8-12mm Lens

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Features

Ultra WDR 120DB, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input

Ingress Protection

IP67

Behavior Detection

, ,

Edge Storage

,

Camera
Sensor1/2″, progressive scan, 8.0 megapixel, CMOS
Lens2.8~12mm,AF automatic focusing and motorized zoom lens




DORI Distance

LensDetect(m)Observe(m)Recognize(m)Identify(m)
2.8mm6325.212.66.3
12mm2701085427
Angle of view(H)114.8° ~ 47.3°
Angle of View (V)75.3°~20.4°
Angle of View (O)141.2°~55.8°
Adjustment anglePan: 0°~360°Tilt: 0°~90°Rotate: 0°~360°
ShutterAuto/Manual, 1/6~1/100000 s


Minimum Illumination

Color: 0.003 Lux (F1.5, AGC ON)

0 Lux with IR

Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264,MJPEG




Frame Rate

Main Stream: 8MP (3840*2160): Max. 15 fps;5MP(2592*1944) : Max. 30fps; 5MP(2944*1656) : Max. 30fps; 4MP(2560*1440) : Max. 30fps;2MP (1920*1080): Max. 30fps

Sub Stream: 2MP (1920*1080): Max. 30fps

Third Stream: D1 (720*576): Max. 30 fps

9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection





IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
RecognitionFace detection, Audio detection
Intelligent IdentificationDefocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageMicro SD, up to 128 GB
Network StorageANR
Network


Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible IntegrationONVIF(Profile S, Profile G), API
Interface
Built-in MicSupported
Network1 RJ45 10M/100M Base-TX Ethernet
General


Power

12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 8.16W
Dimensions (Ø x H)(1129 x 110 mm (05.08″ x 4.3″)
Weight0.67 kg (1.48lb)
Working Environment-40°C ~ +60°C (-40°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Reset ButtonSupported
Ingress ProtectionIP67
