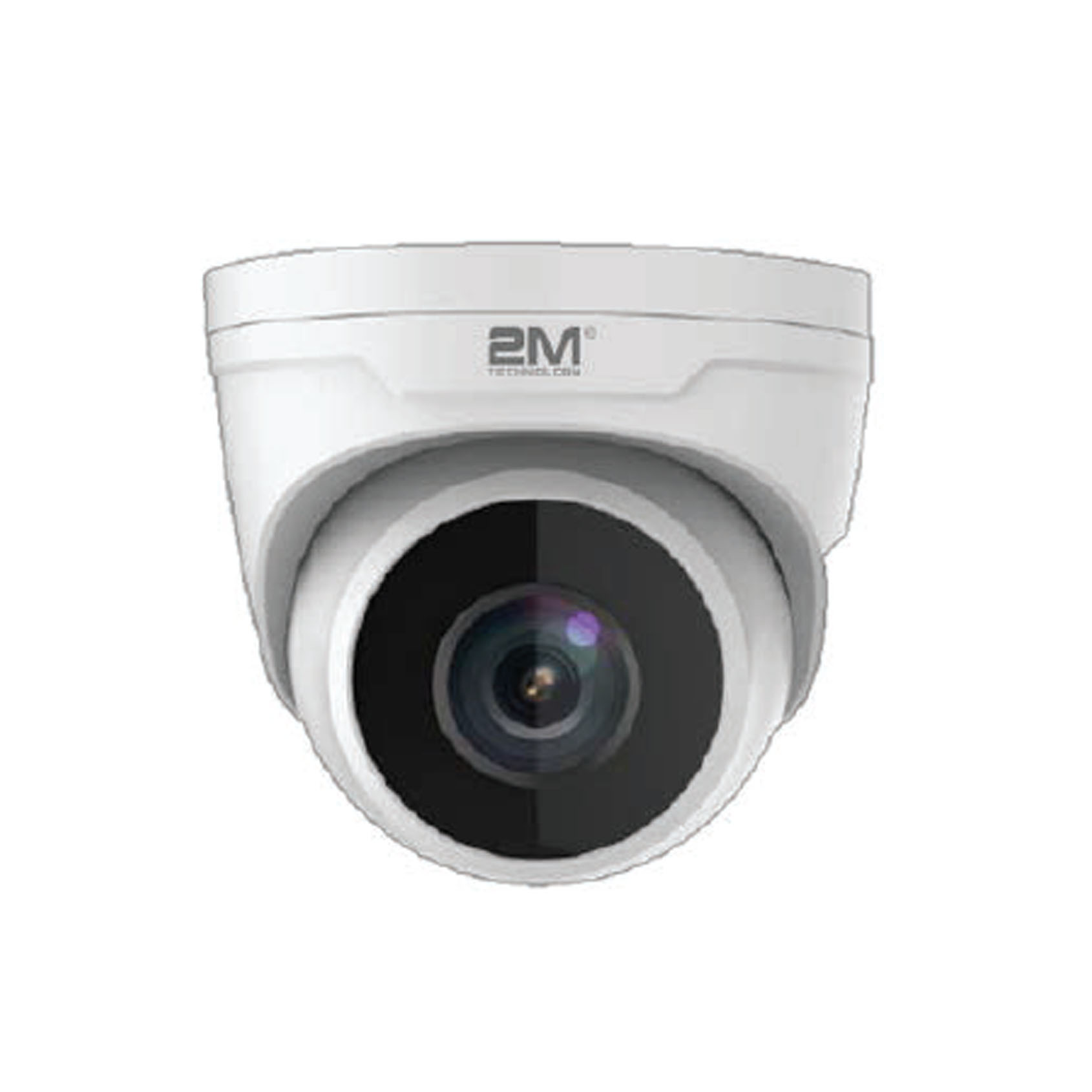

2MTIP-4MIR30ZUA-P 4MP WDR (Motorized) VF Eyeball Network IR Camera
- Sensor: 1/3?, 4 megapixel, progressive scan CMOS
- IP Rating: IP67
- WDR: 120dB WDR
- Power Supply: 12 V DC±25% / PoE (IEEE802.3 af)
Note: Due to our continued product research and development, 2mtechnology Inc. reserves the right to amend all the technical specifications without prior notice.
Product Documents
The VF Eyeball Network IR Camera is an effective professional security camera. This product comes with an Optical glass window with higher light transmittance and day/night functionality. For example, this feature allows you to capture footage in total darkness in areas up to 98 feet IR distance. Lastly, the camera includes 3D DNR (Digital Noise Reduction) and supports PoE power supply.
Key Features
Optics
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Smart IR, up to 30 m (98 ft) IR distance
- 3D DNR (Digital Noise Reduction)
Compression
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- 9:16 corridor mode
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Wide temperature range: -40°C to 60°C (-40°F to 140°F)
- Wide voltage range of ±25%
- IP67
| Weight | 1.48 lbs |
|---|---|
| Series | Professional Series |
| Resolution | 4 Megapixel (2592 x 1520) |
| Signal Type | |
| Lens | Motorized 2.8-12mm Lens |
| Night Vision Distance | 30 Meters (100 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Features | Ultra WDR 120DB, Audio Input |
| Behavior Detection | |
| Ingress Protection | IP67 |
| Edge Storage |
| Camera | |
| Sensor | 1/3″, 4 megapixel, progressive scan, CMOS |
| Lens | 2.7~12 mm@F1.4 |
| Angle of view(H) | 91.0°~27.0° |
| Zoom/Focus | Motor drive |
| Shutter | Auto/Manual, 1/6~1/100000 s |
|
Min. Illumination |
Colour: 0.02 Lux (F1.4, AGC ON)
0 Lux with IR |
| IR Range | Up to 30m (98 ft) IR range |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| WDR | 120dB |
| Noise Reduction | 2D/3D |
| Video | |
| Max. Resolution | 2592×1520 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 4MP (2592×1520): Max.20 fps; 4MP (2560×1440): Max.25 fps |
| Video Streaming | Triple |
| 9:16 Corridor Format | Supported |
| ROI | Supported |
| Evaluative Metering | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Smart | |
| Behavior Detection | Intrusion, crossing line, motion detection |
| Intelligent Identification | Face detection, Defocus, Scene Change |
| Statistical Analysis | People counting |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
|
Protocols |
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
| Compatible Integration | ONVIF,API |
| Interface | |
| Built-in Mic | Supported |
| Network | 10M/100M Base-TX Ethernet |
| General | |
|
Power |
12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: Max 8.16W | |
