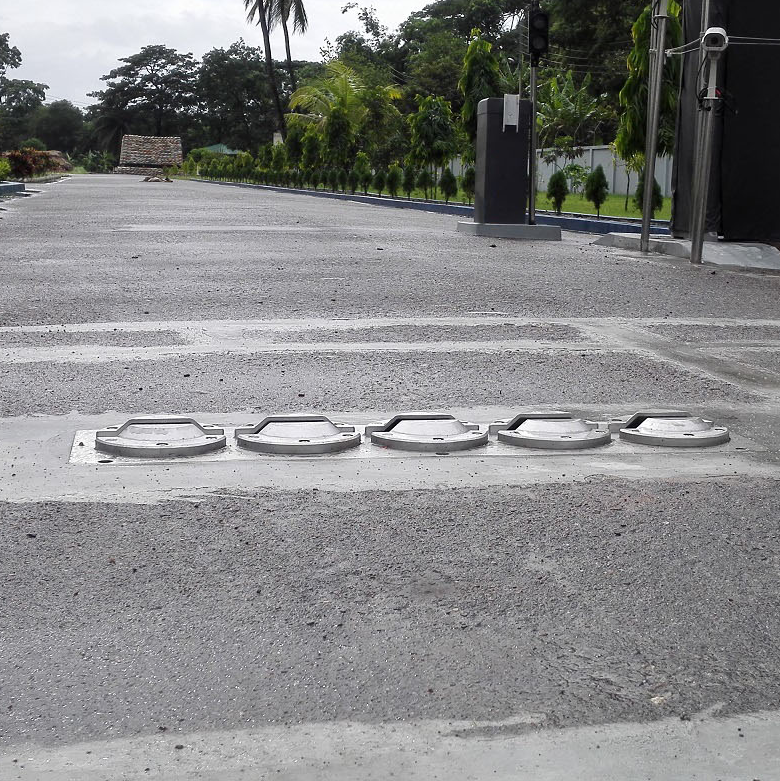

2MUVS-C Inground Under Vehicle Surveillance System

  • Multi entrance management model

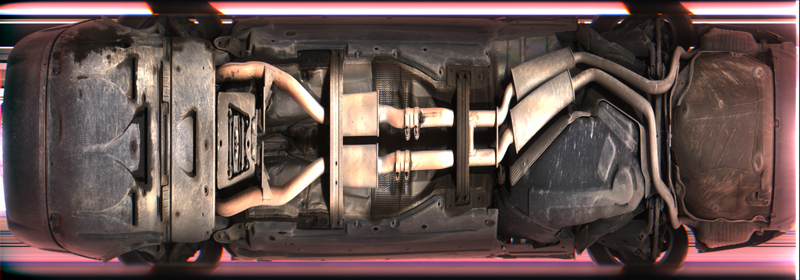

  • High resolution color undercarriage imaging
  • Easy to use

Note: This is a special order item. Allow 4-6 weeks for delivery.

Product Documents




2MUVS-C Under Vehicle Inspection System Overview: 2M’s Under Vehicle Inspection System provides an easier and more efficient way of inspecting entering and exiting vehicles. The system automatically scans moving vehicles to capture high-resolution color images of the undercarriage to identify any contraband, foreign objects, or potential threats. Undercarriage images can be stored and compared to other images to detect any vehicle modifications or suspicious objects. System is suited for all vehicles and designed to withstand harsh weather and extreme environments.


Airport Entrances, Parking Lots, Border Crossings, Military Checkpoints, Parking Garages, Seaports, Government Facilities, Industrial Factories, Nuclear Power Plants, Suitable for all vehicles, wide vision.


  • Multiple entrance management model, management and statistics of entering and exiting vehicles
  • Auto digital line scan, high resolution undercarriage imaging
  • High automation, easy to use
  • Test will be completed during the vehicle maneuvers without stopping, adapted to different speeds
  • Undercarriage image can be stored, retrieved and searched or compared with other
  • Variety of image processing: enlarge, stitching, and cutting
  • ALPR – Automatic License Plate Recognition software (optional) RFID
  • Driver face capture camera
  • Screen video display


Weight 53 lbs
Vertical resolution 5000 x 2048 px
Vehicle Speed <30 km/h with ALPR (Automatic License Plate Recognition)
Effective FOV Less than 170°
Auxiliary Light 100W
Weight Capacity <30 tons
Communication Interface RS232 / RS422
CPU Intel® Core™ 2 Duo CPU P8600@2.4GHz or higher
Memory 2GB (optional 4GB)
Graphics Inter(R) Gen. 5.0 Integrated Graphics Engine
Hard Disk SATA2 Hard Disk 500G


Dual LAN (At least one Intel Gigabyte)
USB 2.0 (up to 4 ports)
Monitor 22” in. LCD, resolution up to 1920 x 1080 px
Recorder 4 CH
Video Compression H264
Operating Voltage 100-240V AC, 50-60Hz
Operating Temperature -10°C to 55°C
Storage Temperature -40°C to +75°C

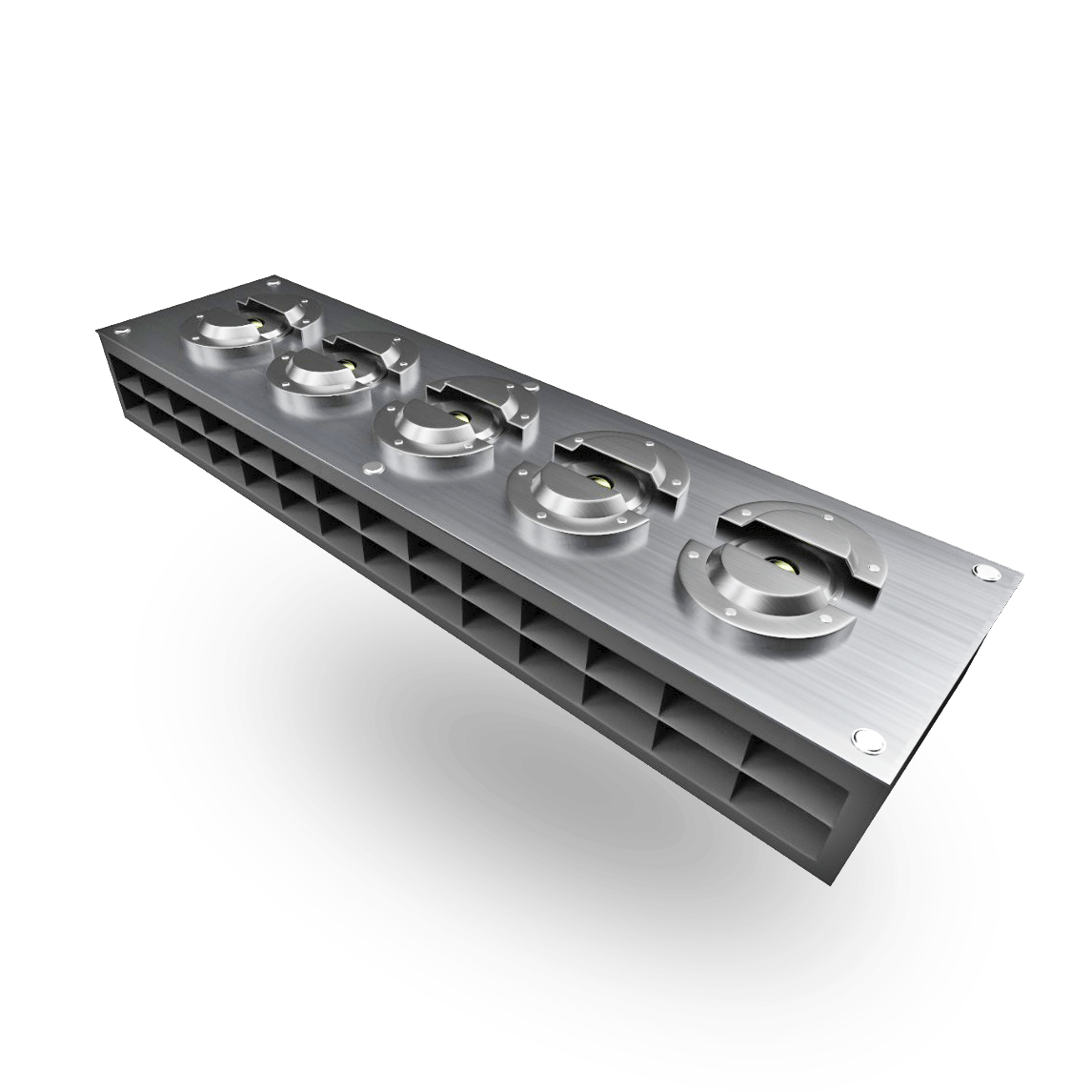

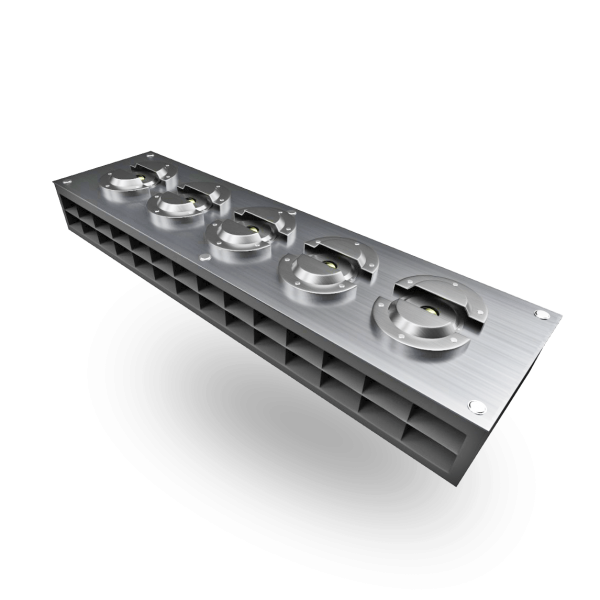

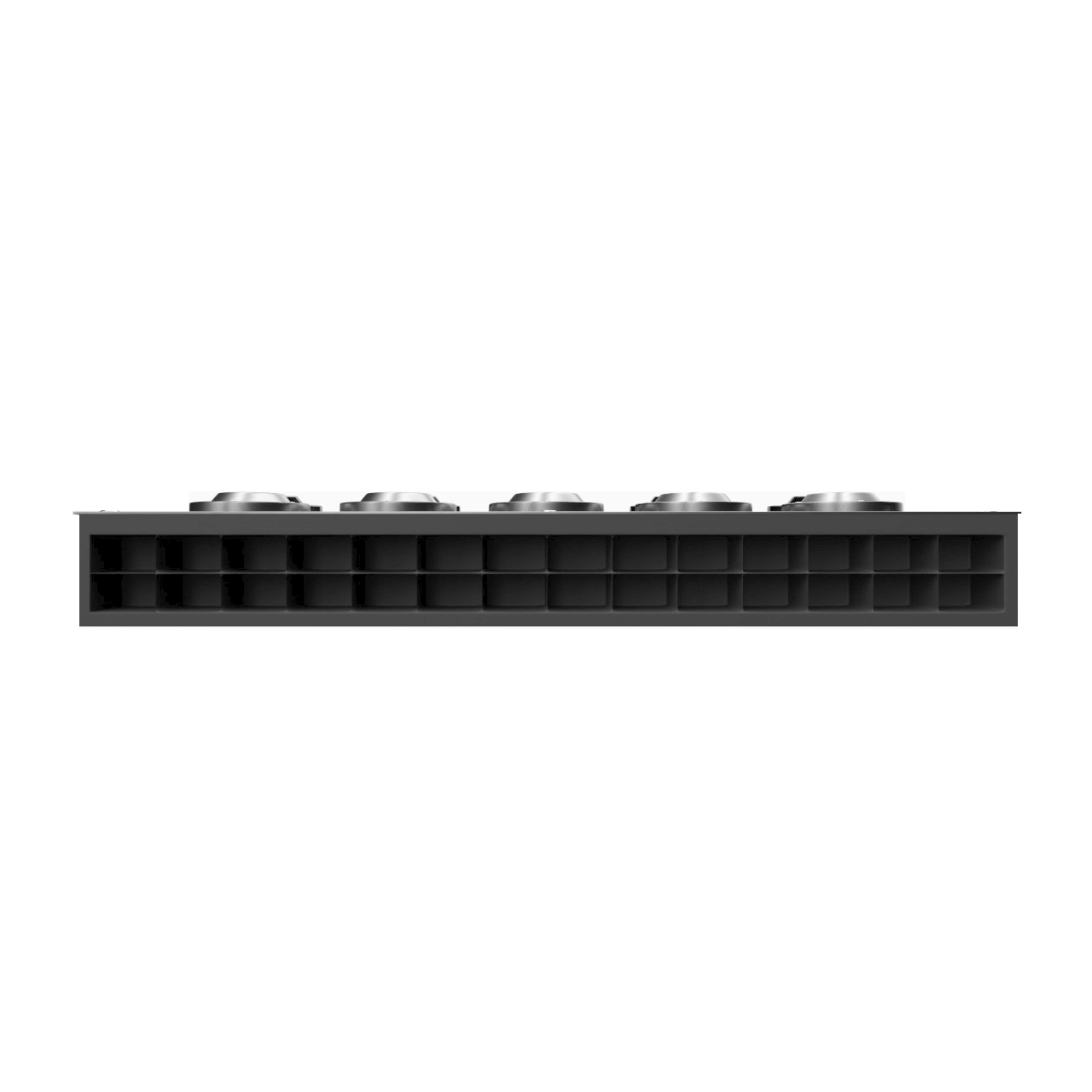

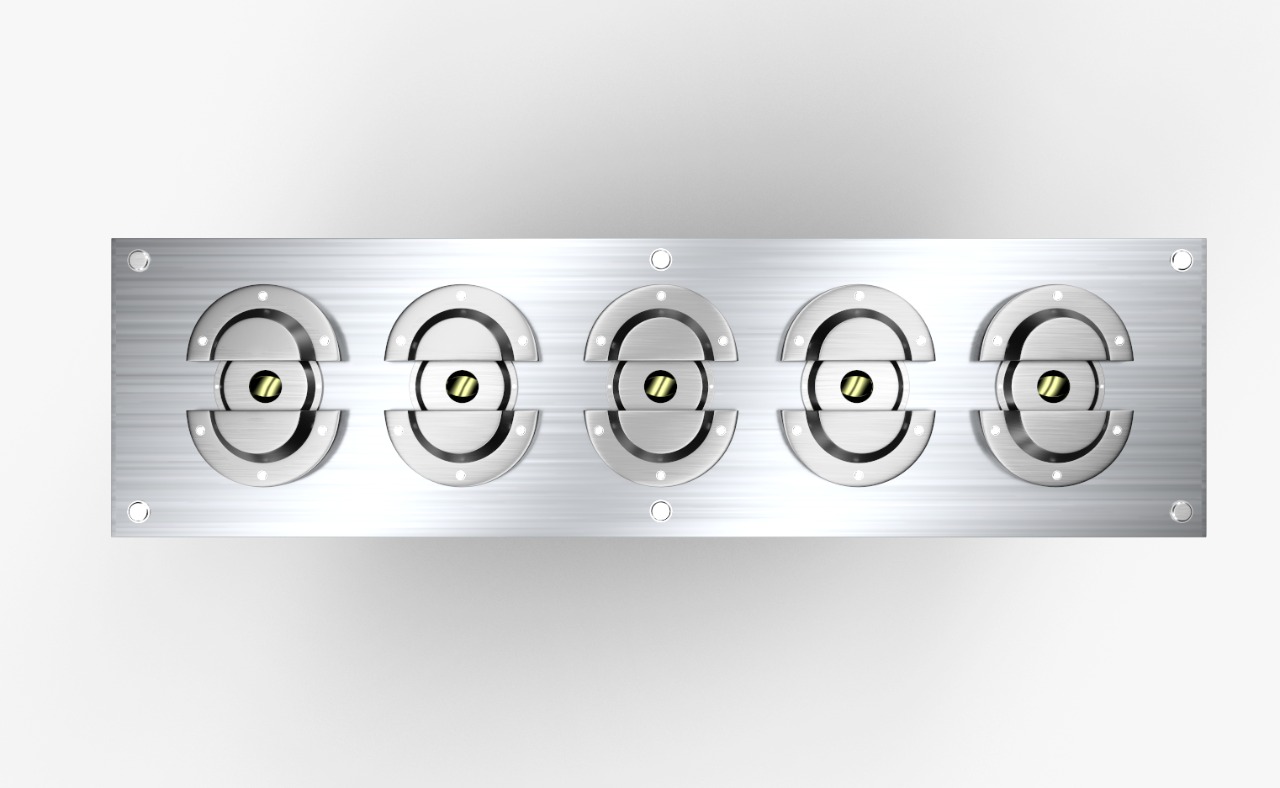

Scanning Device Dimensions 450 x 400 x 88 (mm)/17.7” x 15.7” x 3.5” (in.)
Scanning Device Weight 24 kg/52.9 lbs
Ingress Protection Rating IP68
