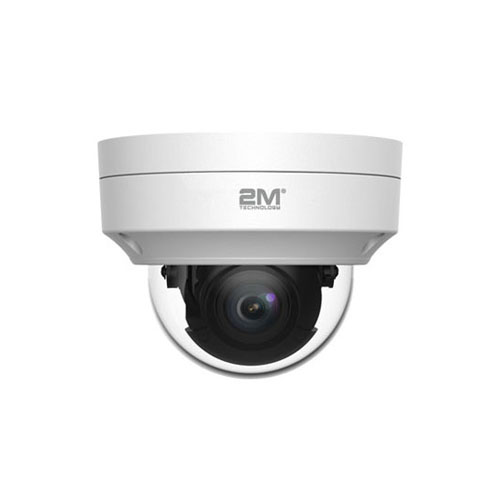

2MVIP-4KIR30-E 4K Vandal-resistant Network IR Fixed Dome Camera
REQUEST QUOTE
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- Ultra 265,H.265, H.264, MJPEG
- IK10 vandal resistant
- IP67
Product Documents
Optics
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
| Dimensions | 4.3 × 4.3 × 3.2 in |
|---|---|
| Lens | Fixed 2.8mm Lens |
| Ingress Protection | IP67 |
| Night Vision Distance | 30 Meters (100 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Resolution | 4k – 8 Megapixel (3840 x 2160) |
| Series | Essential Series |
| Vandal Resistant | IK10 |
| CAMERA | |||||
| Sensor | 1/3″, 8.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8mm@F2.0 | ||||
|
DORI Distance |
Lens |
Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8mm | 84 | 33.6 | 16.8 | 8.4 | |
| Angle of view(H) | 112.7° | ||||
| Angle of View (V) | 60.1° | ||||
| Angle of View (O) | 146.5° | ||||
| Adjustment angle | Pan: 0°~360°; Tilt: 0°~68°; Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||
| Adjustment angle | Pan: 0°~360°, Tilt: 0°~80°, Rotate:0°~360° | ||||
|
Min. Illumination |
Color: 0.05 Lux (2.0, AGC ON)
0 Lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| S/N | >56dB | ||||
| IR Range | Up to 30m (98 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| VIDEO | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline Profile, Main Profile | ||||
|
Frame Rate |
Main Stream: 8MP (3840 x 2160): Max. 20 fps; 5MP (2944 x 1656):
Max. 30 fps; 4MP (2560 x 1440): Max. 30 fps; 2MP (1920 x 1080): Max. 30 fps Sub Stream: 720P (1280 x 720): Max. 20 fps Third Stream: 4CIF (704 x 576): Max. 20 fps |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 2 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| IMAGE | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | NA | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| NETWORK | |||||
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile T), API |
|
Client |
EZStation EZView EZLive |
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |
| INTERFACE | |
| Network | 10/100M Base-TX Ethernet |
| CERTIFICATIONS | |
|
Certifications |
CE: EN 60950-1 FCC: FCC Part 15 |
| GENERAL | |
|
Power |
DC12V±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 5.5w | |
| Dimensions (Ø x H) | Ø 108.7 x 81.1 (mm) (Ø 4.3″ x 3.2″ (in)) |
| Net Weight | 0.45kg (0.99lb) |
| Material | Metal + Plastic |
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F),
Humidity: ≤95% RH(non-condensing) |
| Storage Environment | -35°C ~ 60°C (-31°F ~ 140°F),
Humidity: ≤95% RH(non-condensing) |
| Surge Protection | 2KV |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
