2MX-280300-320KVU Vehicle Inspection System with Conveyor Belt

  • Conveyor: Advanced track-and-convey design to move the vehicles automatically through the x-ray scanning unit without a driver.
  • Radiation safety: The driver and passengers exit the vehicle to avoid injury when the vehicle is scanned.
  • Downward x-ray and U-shaped detectors design: Brings high penetration and optimized viewing angle, providing high penetration, optimized viewing angle and high definition images.
  • High-quality scanning imaging: Track-carrying vehicles ensure that the vehicle travels at a constant speed through the scanning device, which helps the machine produce high-quality images.

Product Documents

Overview:

The 2M Technology vehicle security screening system can is designed to screen passenger vehicles (including minibuses), it can quickly detect dangerous goods and contraband hidden in vehicles, such as weapons, explosives, drugs, smuggled goods, etc. It features a track conveyor which moves the car through the scanner. The driver and passengers can wait outside the vehicle to fully protect them from radiation. Equipped with the latest x-ray generator on the top and U-shaped detectors, the scanner provides high penetration, optimized viewing angle and high definition images.
This vehicle security screening system is predominantly used at the entrance of parking lots and important government buildings, road traffic checkpoints, customs, border inspection ports, large event venues. The system can be customized to meet customer requirements and conditions of the installation site. It can be integrated with our License Plate Recognition System, real-time video and real-time capture to meet different project requirements.

Features:

  • Conveyor: Advanced track-and-convey design to move the vehicles automatically through the x-ray scanning unit without a driver.
  • Radiation safety: The driver and passengers exit the vehicle to avoid injury when the vehicle is scanned.
  • Downward x-ray and U-shaped detectors design: Brings high penetration and optimized viewing angle, providing high penetration, optimized viewing angle and high definition images.
  • High-quality scanning imaging: Track-carrying vehicles ensure that the vehicle travels at a constant speed through the scanning device, which helps the machine produce high-quality images.
  • High penetration: 2MX-280300-320KVU is equipped with a high-energy x-ray generator with a typical 70 mm steel penetration, appropriate for
    scanning medium-sized passenger vehicles.
  • Dual-energy imaging: The 2MX-280300-320KVU can perform automatic substance identification, which can distinguish between organics, inorganic matters and difficult-to-penetrate metal objects. It helps operators quickly identify a variety of dangerous items.
  • Automatic License Plate Recognition(ALPR): License plate recognition can be integrated to meed a customers needs.

Imaging:

  • Password protected login.
  • Checked vehicle information list, data query, user management, real-time curve, playback, etc.
  • Image function: color / black and white, increase, over increase, inverse color, highlight / darken, local enhancement, super enhancement, organic stripping, inorganic stripping, brightening, darkening, zoom in/out (1-64), etc.
  • Real-time video; real-time capture (Optional).
  • Organic and inorganic matter color image display.
  • 30 images pullback
  • Up to 500,000 images stored automatically

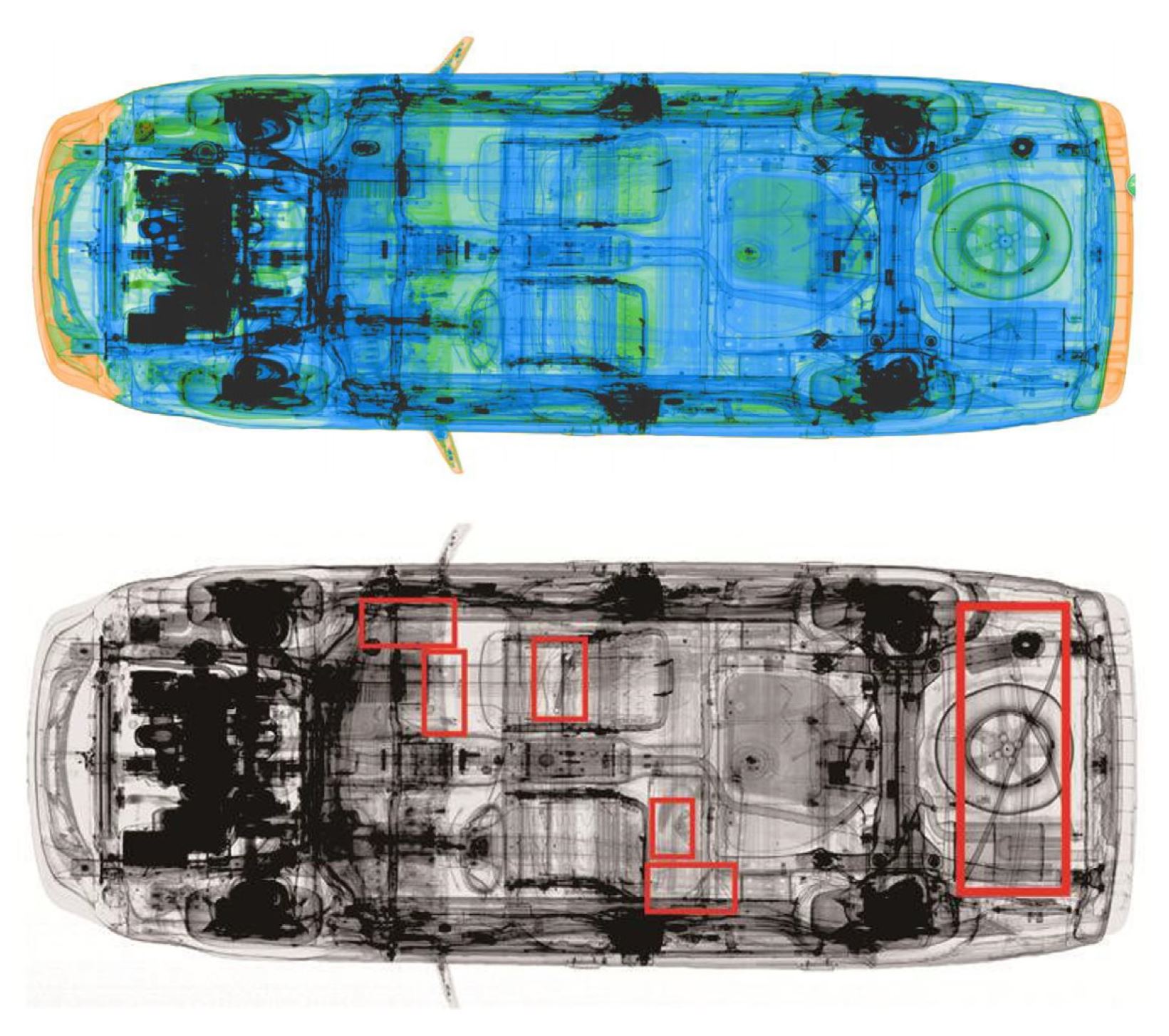

car xrays images

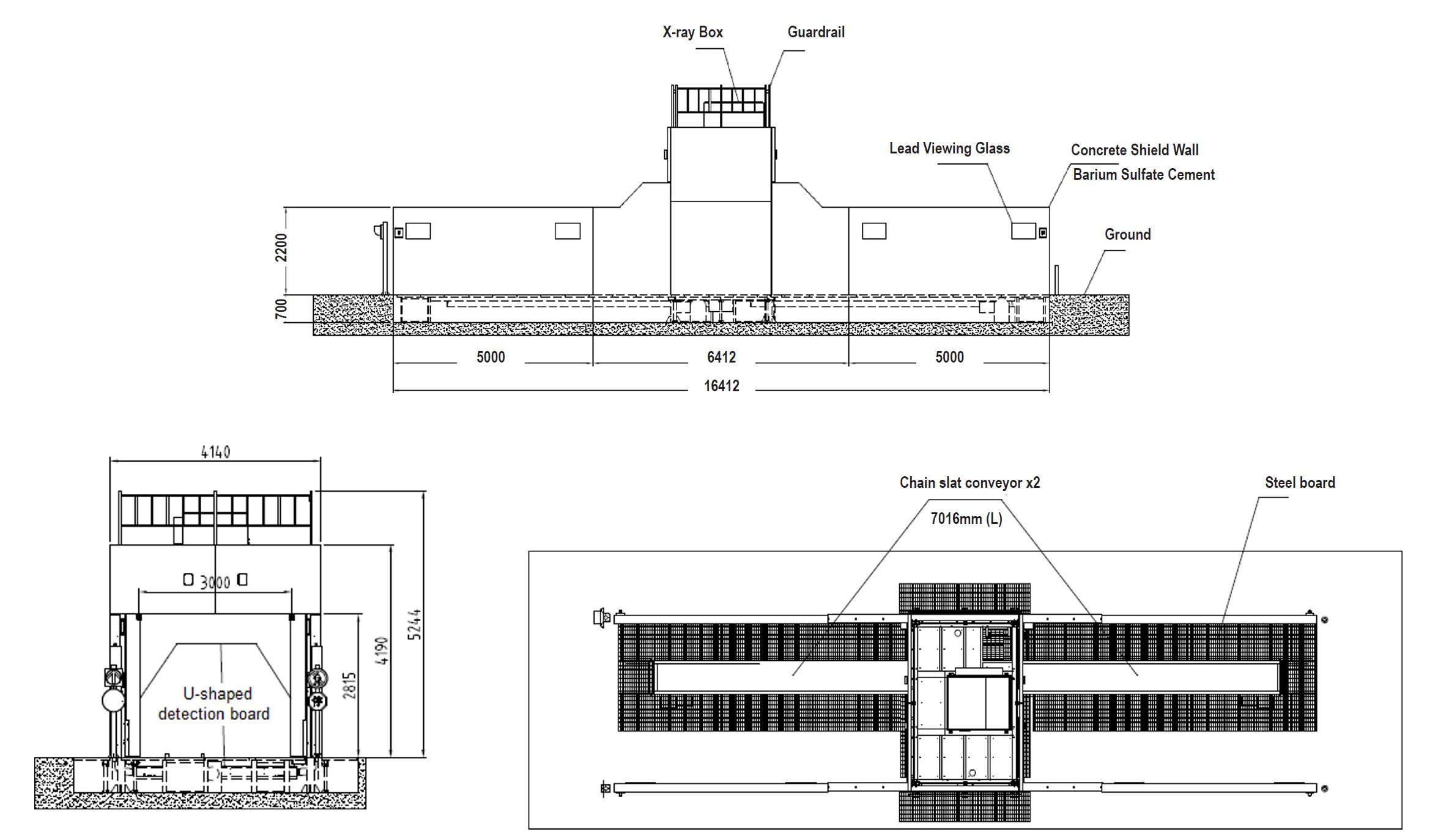

Dimensions:

PHYSICAL
Tunnel Size3 (W) * 3 (H) m (can be customized)
Load Capacity Of Conveyor4000 kg
Scanning Speed0.3 m/s
Typical Pass Rate30 cars / hour
Steel PenetrationTypical 70mm, guarantee 40mm
Wire Resolution38AWG
Penetration Resolution32AWG
Spatial Resolution1.3mm
X Ray Dose Per Inspection<3μSv
X Ray Leakage<0.5μSv/h, anywhere 1.5m away from the exit of the system
Noise<65dB(A) , anywhere 1m away from the system
Detector ShapeHigh resolution U-shaped detector line
Safety StandardMeet the requirements of GB15208.0-2005
Power ConsumptionMaximum 15KVA
Console24-inch display
Film SafetyGuarantee ASA/ISO1600 Film
X-RAY GENERATOR (DUAL ENERGY)
X-ray generator320KV, sealed oil cooling
Ray directionDownward
OPERATING ENVIRONMENT
Operating Temperature5°C ~ 40°C
Operating Humidity0% ~ 90% (non-condensing)
Storage Temperature-23°C~ 60°C
Storage Humidity10% ~ 90% (non-condensing)
Power supply380 VAC ± 15%, 3-phase 50~60Hz ±3Hz
