2MX-291300-300KVL Vehicle Inspection System

  • Password protected login.
  • Checked vehicle information list, data query, user management, real-time curve, playback, etc.
  • Image function: color / black and white, increase, over increase, inverse color, highlight / darken, local enhancement, super enhancement, organic stripping, inorganic stripping, brightening, darkening, zoom in/out (1-64), etc.
  • Real-time video; real-time capture (Optional).
  • Will scan up to 30 vehicles per hour.



Product Documents

Overview:

The 2M Technology vehicle security screening system can is designed to screen passenger vehicles, it can quickly detect dangerous goods and contraband hidden in vehicles, such as weapons, explosives, drugs, smuggled goods, etc. It features a track conveyor which moves the car through the scanner. The driver and passengers can wait outside the vehicle to fully protect them from radiation. Equipped with the latest x-ray generator on the top and U-shaped detectors, the scanner provides high penetration, optimized viewing angle and high definition images.

This vehicle security screening system can be customized to be in terminals, to scan cars, buses, box trucks, etc. The scanner may be used at the entrance of parking lots and important government buildings, road traffic checkpoints, customs, border inspection ports, large event venues. The system can be customized to meet customer requirements and conditions of the installation site. It can be integrated with our License Plate Recognition System, real-time video and real-time capture to meet different project requirements.

Features:

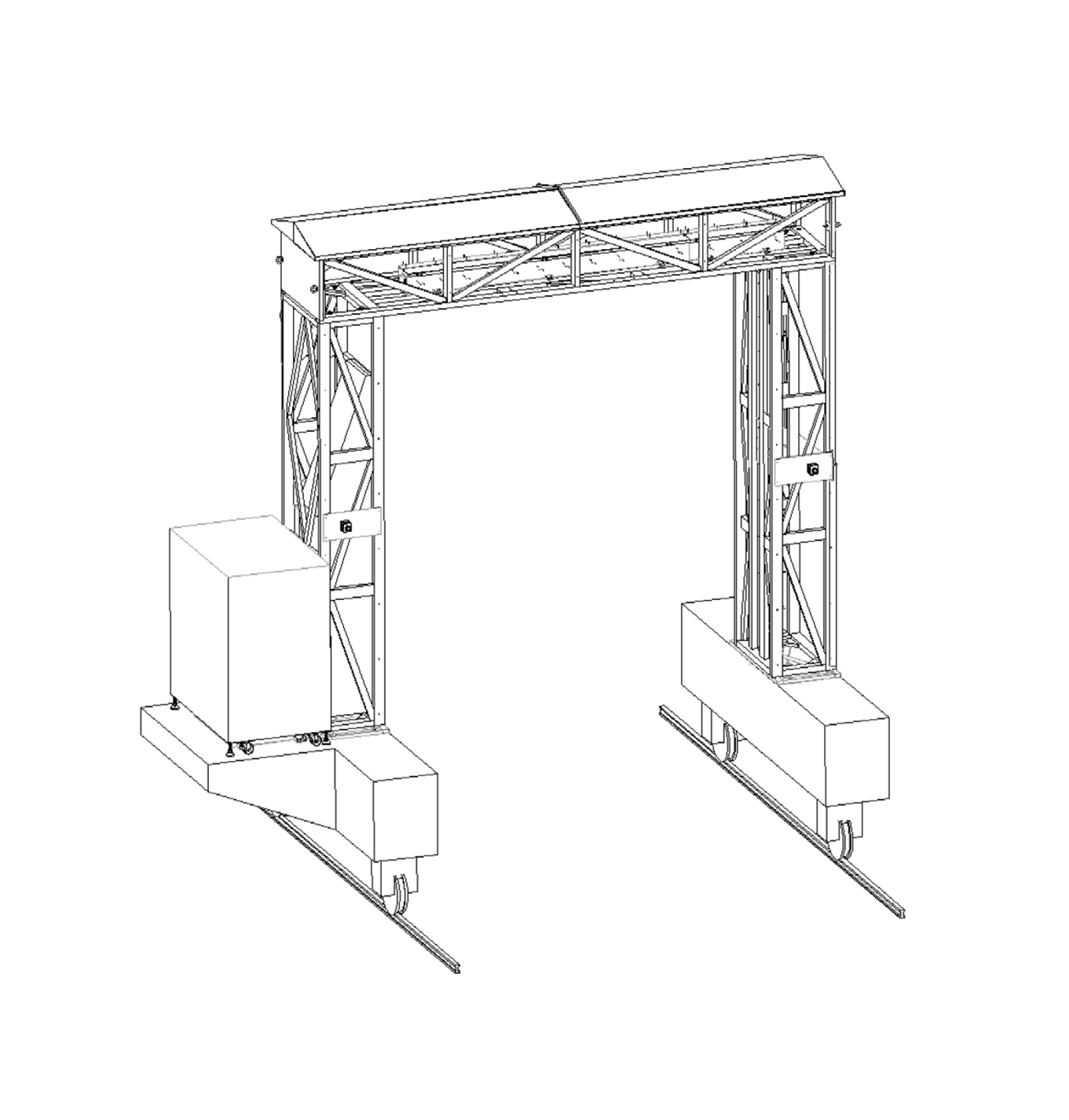

  • Mobile scanning: Mobile design to move the scanning system on rail without a driver to drive the vehicle.
  • Small footprint: The construction area of 2MX-291300-300KVL is very small, and no additional base construction is needed.
  • Dual-energy imaging: The 2MX-291300-300KVL can perform automatic substance identification, which can distinguish between organics, inorganic matters and difficult-to-penetrate metal objects. It helps operators quickly identify a variety of dangerous items.
  • Automatic License Plate Recognition(ALPR): License plate recognition can be integrated to meed a customers needs.

Imaging System:

  • Password protected login.
  • Checked vehicle information list, data query, user management, real-time curve, playback, etc.
  • Image function: color / black and white, increase, over increase, inverse color, highlight / darken, local enhancement, super enhancement, organic stripping, inorganic stripping, brightening, darkening, zoom in/out (1-64), etc.
  • Real-time video; real-time capture (Optional).

X-ray imaging Image

Radiation Safety:

Radiation Safety

  • Protection walls of barium sulfate plate, 3m(length) x 2.5m (height), moving with the system.
  • The size of the rain shed for vehicle inspection system is 15m (length) x 6m (width) x 6.5m (net height), with Cement shielding wall
  • Additional ramps, road barrier and vehicle height limit frame are installed on both sides of the detection channel.

Radiation safety image2

Dimensions:

Dimensions

PHYSICAL
Tunnel Size 3 (W) x 3 (H) m (can be customized)
Scanning Speed 0.2 m/s
Steel Penetration 70mm 300KV
Spatial Resolution Vertical 2mm/Horizontal 1.3mm
Vehicles Per Hour 30
X Ray Dose Per Inspection <7.2 μSv by 200KV
X Ray Leakage <5 μSv/h, anywhere 10m away from the generator of the system
Noise <65dB(A), anywhere 1m away from the system
Detector Shape High resolution L-shaped detector line
Safety Standard Meet the requirements of GB15208.0-2005
Power Consumption Maximum 4KVA
Console 24-inch display
Film Safety Guarantee ASA/ISO1600 Film
X-RAY GENERATOR (DUAL ENERGY)
X-ray generator sealed oil cooling, optional 320KV
Ray direction From side
SYSTEM
Monitor One 24-inch LCD monitor, 1920*1080
Console A console which can lock the display and keyboard
CPU Intel (R) i3 (R) 3.3GHz
RAM 4GB
Hard Disk 2T
Keyboard Special designed
Platform Windows 7 or Windows 10
OPERATING ENVIRONMENT
Operating Temperature 5°C ~ 45°C
Operating Humidity 0% ~ 90% (non-condensing)
Storage Temperature -25°C~ 50°C
Storage Humidity 10% ~ 95% (non-condensing)
Power supply AC220V ± 20%, 50~60Hz ±3Hz
