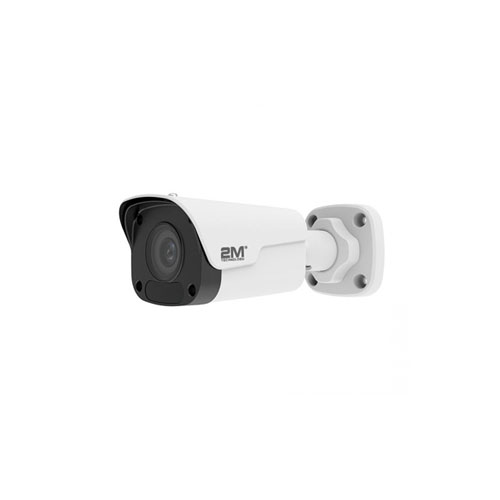

2M Technology 2MBIP-4MIR30-GS 4MP Mini Fixed Bullet Network Camera

REQUEST DEMO
  • Day/night functionality
  • Smart IR , up to 30 m (98 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)
  • NDAA Approved

Product Documents

The 2M Technology 2MBIP-4MIR30-GS outdoor IP bullet camera offers 2D/3D DNR (Digital Noise Reduction). This bullet camera offers day/night functionality and an IR anti-reflection window to increase infrared transmittance. The Smart IR system allows up to 30m (98ft) of infrared distance.

The IP camera offers Ultra 265, H.265, H.264, MJPEG compression, as well as triple streams. The 2M outdoor IP bullet cam also offers ONVIF Network conformance. The unit can support a wide temperature range (-30°C to 60°C / -22°F to 140°F). Further, it is IP67 certified and handles a voltage range of ±25%.



Features:

Optics

  • Day/night functionality
  • Smart IR, up to 30m (98ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265, H.265, H.264, MJPEG
  • ROI (Region of Interest)

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
  • Wide input voltage range of ±25%
  • IP67
  • 3-Axis
Weight 0.99 lbs
Dimensions 6.5 × 2.5 × 2.5 in
Resolution

4 Megapixel (2592 x 1520)

Signal Type

Night Vision Distance

30 Meters (100 feet)

Series

Essential Series

Night Vision Type

Infra Red (IR) LED

Lens

Fixed 2.8mm Lens

CAMERA
Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0


DORI

Distance

Lens Detect(m) Observe (m) Recognize (m) Identify (m)
84 63 25.2 12.6 6.3
Angle of View (H) 104.4
Angle of View (V) 54.4
Angle of View (O) 135.7
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Color: 0.03 Lux (F2.0, AGC ON) 0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital Noise Reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR D-WDR
VIDEO
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline Profile, Main Profile




Frame Rate



Main Stream:4MP (2592×1520): Max. 20 fps; Sub Stream:720P (1280×720): Max. 20 fps; Third Stream:D1 (720×576): Max. 20 fps

Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping NA
HLC Supported
BLC Supported
NETWORK


Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration ONVIF (Profile S, Profile T), API
Client EZStation, EZView, EZLive




Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
INTERFACE
Network 10/100M Base-TX Ethernet
CERTIFICATIONS
Certifications CE: EN 60950-1, FCC: FCC Part 15
GENERAL


Power

12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5W
Dimensions (L × W × H) 165 × 63.1 × 62.5mm (6.5” × 2.5” × 2.5”)
Net Weight 0.45kg (0.99lb)
Material Metal


Working Environment

-30°C ~ +60°C (-22°F ~ 140°F),

Humidity :≤95% RH(non-condensing)



Strorage Environment

-30°C ~ +60°C (-22°F ~ 140°F),

Humidity :≤95% RH(non-condensing)

Surge Protection 2KV
Ingress Protection IP67
Reset Button Supported
