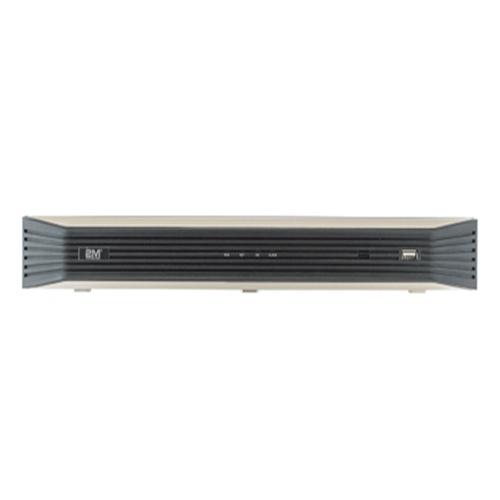

2M Technology 2MN-8004-P4-E 4-CH Network Video Recorder (DISCONTINUED)
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Plug & Play with 4 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Product Documents
The 2M Technology 2MN-8004-P4-E 4-CH Network Video Recorder is high quality NVR system. The device is equipped with HDMI and VGA Video Output. This allows the customer to incorporate a monitor for video display. The product has the ability to connect to a maximum of 4 network cameras with up to 2 Megapixels resolution. Lastly, the NVR device also supports IP cameras adaptive access.
| Weight | 2.05 lbs |
|---|---|
| Number of Channels | 4 |
| PoE Channels | |
| Signal Type | |
| Standalone Recorder | |
| Number of Channels | |
| Internal Hard Drives SATA Ports | 1 SATA Hard Drives |
| Series | Essential Series |
| Resolution | 4k – 8 Megapixel (3840 x 2160) |
| VIDEO & AUDIO | |
| IP Video Input | 4-ch |
| Network | |
| Incoming Bandwidth | 40Mbps |
| Outgoing Bandwidth | 40Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
|
HDMI/VGA Output |
HDMI:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution | 1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback | 4-ch |
| Corridor Mode Screen | 3/4 |
| Decoding | |
| Decoding format | Ultra 265, H.265, H.264 |
| Live view/ Playback | 1080p/960p/720p/D1/2CIF/CIF |
| Capability | 4 x 1080p@20, 4 x 720p@30 |
| Hard Disk | |
| SATA | 1 SATA interfaces |
| Capacity | up to 10TB for each disk |
| External Interface | |
|
Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 1 x USB2.0; Rear panel: 1 x USB2.0 |
| PoE | |
| Interface | 4 independent 100 Mbps PoE network interfaces |
| Max Power | Max 30W for single port
Max 54W in total (13.5W for each) |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| GENERAL | |
|
Power Supply |
48V DC
Power Consumption: ≤5 W (without HDD) |
|
Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90%
RH(non-condensing) |
|
Dimensions |
260 x 240 x 43 (mm) (10.2″ x 9.4″ x 1.7″) (in) |
