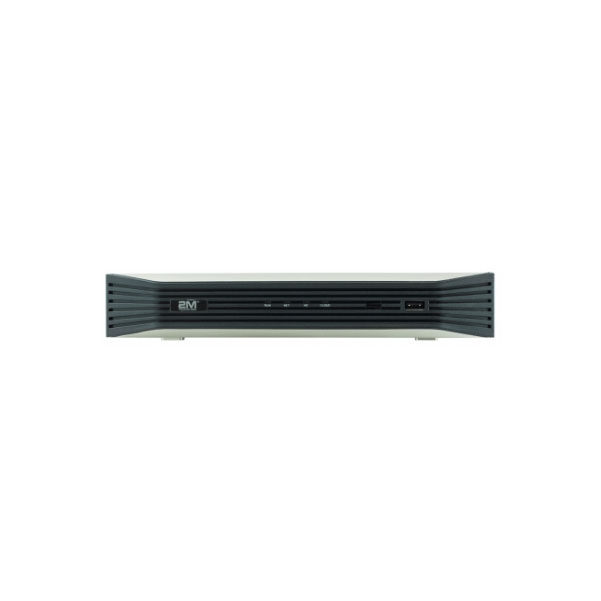

2M Technology 2MN-8008-E 8-CH Network Video Recorder

  • Support Ultra 265/H.265/H.264 video formats
  • 8-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output

Product Documents

2M Technology 8-CH Network Video Recorder Features:

  • Support Ultra 265/H.265/H.264 video formats
  • 8-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 2MP resolution recording
  • 1 SATA HDD up to 10 TB
  • Support cloud upgrade
PoE Channels

Signal Type

Number of Channels

Internal Hard Drives SATA Ports

1 SATA Hard Drives

Series

Essential Series

Resolution

4k – 8 Megapixel (3840 x 2160)

VIDEO & AUDIO
IP Video Input8-ch
Network
Incoming Bandwidth40Mbps
Outgoing Bandwidth40Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output




HDMI/VGA Output

HDMI:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz,

1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz,

1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

Recording Resolution1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback8-ch
Corridor Mode Screen3/4/5/7/9
Decoding
Decoding formatUltra 265, H.265, H.264
Live view/ Playback1080p/960p/720p/D1/2CIF/CIF
Capability4 x 1080p@20, 4 x 720p@30
Hard Disk
SATA1 SATA interfaces
Capacityup to 10TB for each disk

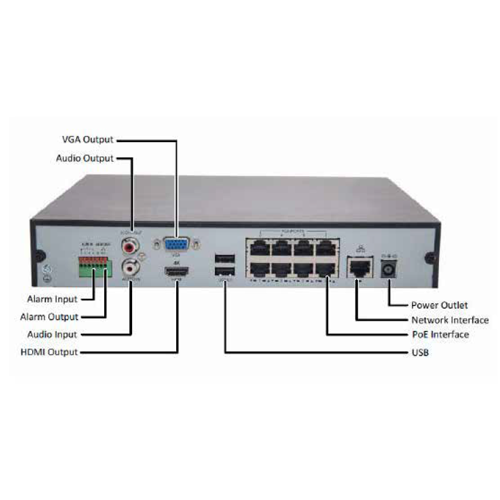

External Interface


Network Interface



1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface

USB InterfaceFront panel: 1 x USB2.0, Rear panel: 1 x USB2.0
GENERAL


Power Supply

12V DC

Power Consumption: ≤3.2 W (without HDD)



Working Environment

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90%

RH(non-condensing)



Dimensions



260 x 240 x 43 (mm) (10.2″ x 9.4″ x 1.7″) (in)
