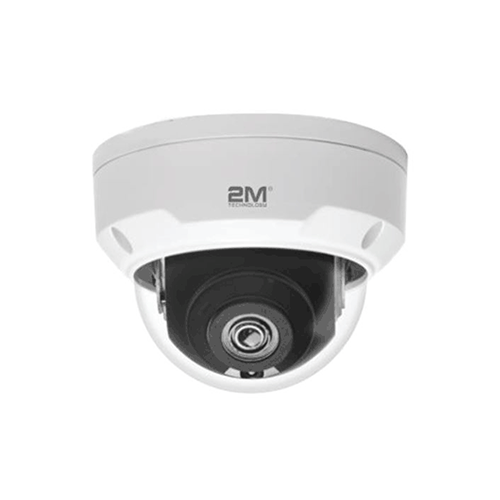

2M Technology 2MVIP-2MIR30V-E Vandal-resistant Network IR Fixed Dome Camera (DISCONTINUED)
- Smart IR
- 2D/3D DNR
- Triple Streams Compression
- ONVIF Conformance
- IK10 Vandal-resistant
- IP67
Note: Due to our continued product research and development, 2mtechnology Inc. reserves the right to amend all the technical specifications without prior notice.
Product Documents
The 2M Technology 2MVIP-2MIR30V-E Vandal-resistant Network IR Fixed Dome Camera comes with a 2MP lens. Additionally, the camera features Smart IR technology. This allows for up to 30m or 98ft of IR distance. The camera also follows ONVIF conformance. Further, the network camera is IK10 vandal-resistant and has an IP67 rating.
| Weight | 1.7 lbs |
|---|---|
| Resolution | 2 Megapixel (1920 x 1080) |
| Signal Type | |
| Lens | Fixed 2.8mm Lens |
| Series | Essential Series |
| Night Vision Distance | 30 Meters (100 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Features | Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI |
| Behavior Detection |
| Camera | ||||||||
| Sensor | 1/2.7″, 2.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8 ~ 12mm, manual zoom lens | 2.8 ~ 12mm, motorized zoom lens | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 42 | 16.8 | 8.4 | 4.2 | ||||
| 12 | 180 | 72 | 36 | 18 | ||||
| Angle of View (H) | 116.5° ~ 31.1° | |||||||
| Angle of View (V) | 58.8° ~ 17.3° | |||||||
| Angle of View (O) | 151.5° ~ 38.2° | |||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour: 0.01Lux (F1.6, AGC ON) 0Lux with IR |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| Defog | Digital Defog | |||||||
| WDR | DWDR | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile | |||||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (704*576), Max 30fps |
|||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 2 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
| Interface | ||||||||
| Network | 10M/100M Base-TX Ethernet | |||||||
| Edge Storage | MicroSD, up to 256GB | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 6.5W | ||||||||
| Dimensions (Ø x H) | Φ148 x 111.3mm (Ø5.8” x 4.4”) | |||||||
| Weight | 0.92kg (2.0lb) | |||||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Ingress Protection | IP67 | |||||||
| Vandal Resistant | IK10 | |||||||
| Reset Button | Supported | |||||||
