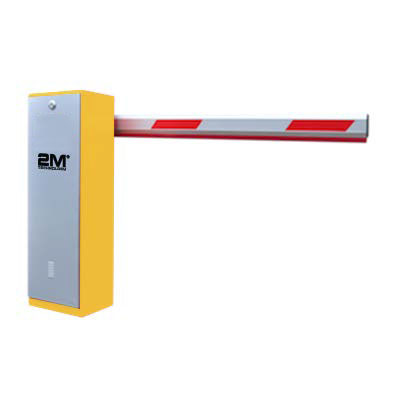

2MAGB-NSL-E Intelligent Barrier Gate (AC Turbine Vortex Pole Motor)

  • Normal-speed of open / close: 3/6 seconds
  • Straight arm with rubber bar
  • Arm direction is interchangeable but motor and reducer will need to be changed

Product Documents

2MAGB-NSL-E Intelligent Barrier Gate with an AC Turbine Vortex Pole Motor

Features:

  • Normal-speed of open / close: 3/6 seconds

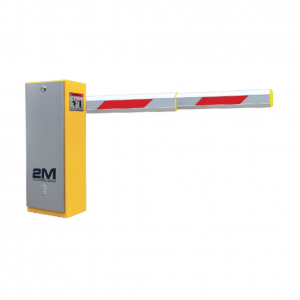

  • Straight arm with rubber bar (telescopic arm optional), Max. length as below:
    • 3 sec. / Max.14.7ft
    • 6 sec. / 19.6ft
  • Includes of arm ×1, push button ×1, remote ×2, boom bracket×1
  • Exclusive LED arrow display on housing (sold separately)
  • Housing color optional: yellow silver (default)/red silver/dark silver
  • Arm direction is interchangeable but motor and reducer will need to be changed
Dimensions13 in
GATE FEATURE
Power SupplyAC 85~264V, 50~60HZ, 480W
Motor240W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle
Remote (Optional)Distance﹥65ft
Spring1~2 pcs. spring balance
Controller80C51 MCU, 20MHz, PWM variable frequency servo controller board
Loop Detector Inputpulse width 100﹥ ms
IR detector Inputpulse width 100﹥ ms
Up & Down Inputpulse width 100﹥ ms
Traffic Light OutputAC220V output power (passive), current Max. 3A/AC220V
Loop detector Syn. outputRelay NO output, Current Max.0.5A/AC220V, or Max. 1A/DC12V
RS485 Interface9600bps, ASCII decimal encoded
Arm3.38″×1.72″ Aluminum alloy octagonal arm with rubber bar, Max.19.6ft Round arm with foam, Max. 11.4ft
Housing1.8mm cold-roller sheet, IP54
Housing Size (HxWxD)355 x 267 x 1035 (mm) / 13.9″ x 10.5″ x 40.7″ (in)
Package Size405 x 346 x 1070 (mm) / 15.9″ x 13.6″ x 42.1″ (in)
Gross Weigtharound 46 KG / 101lb
Operating temperature-30°C to 55°C/ -22°F to 131°F
Humidity10%-95%
