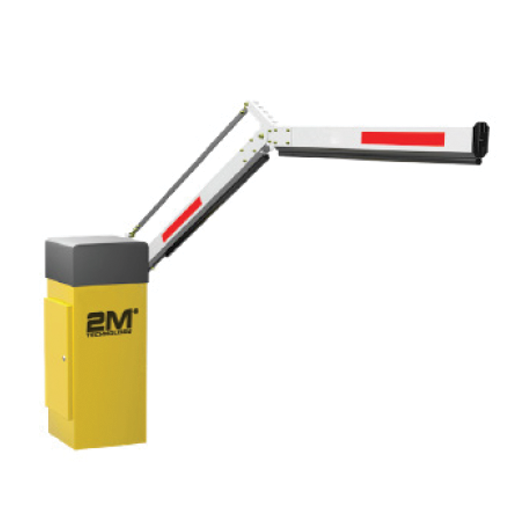

2MAGB-NCL Limited Ceiling Intelligent Barrier Gate with LED (DC Brushless servo torque motor)

  • Normal-speed of open / close: 2~6 sec. adjustable
  • Octagonal crank arm with rubber & LED light bar
  • Speed varies with bar length:
    • 2~3 sec. / up to 13.1′ ft
    • 4~6 sec. / up to 16.4′ ft
  • Housing color optional: yellow (default)/orange/white/red/blue
  • Arm direction left/right exchangeable without changing any parts

The pricing is subject to change with customization. Allow 4-6 weeks for delivery.

Product Documents

  • Normal-speed of open / close: 2~6 sec. adjustable
  • Octagonal crank arm with rubber & LED light bar, length following ( or
  • Max.11.5′ feet round arm):
    – 2~3 sec. / Max. 13.1′ ft
    – 4~6 sec. / Max. 16.4′ ft
  • Includes of arm x1, remote x2, air switch x1, push button x1 to open/close barrier
  • Boom bracket and power supply for LED bar is sold separately
  • Housing color optional: yellow (default)/orange/white/red/blue
  • Arm direction left/right exchangeable without changing any parts
Dimensions55.1 × 11.8 × 39.4 in
Ingress Protection

IP54

GATE FEATURE
Power SupplyAC 85~264V, 50~60HZ, 50W
Motor50W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle
Remote (Optional)Distance ﹥ 65.6' ft
Spring1~3 pcs. spring balance
Controller80C51 MCU, 20MHz, PWM variable frequency servo controller board
Loop Detector Inputpulse width 100﹥ ms
IR Detector Inputpulse width 100﹥ ms
Up & Down Inputpulse width 100﹥ ms
Traffic Light OutputAC220V output power (passive), current Max. 3A/AC220V
Loop Detector Syn. OutputRelay NO output,; Current Max.0.5A/AC220V, or Max. 1A/ DC12V
RS485 interface9600bps, ASCII decimal encoded
  ArmOctagonal crank arm with rubber & LED light bar, length following (or Max. 11.5' feet round arm): 2~3 sec. / Max. 13.1' ft 4~6 sec. / Max. 16.4" feet
Housing2mm cold-roller sheet, IP54
Housing Size (HxWxD)950 x 320 x 329 (mm) / 37.4" x 12.5" x 12.9" (in)
Package Size1100 x 480 x 430 (mm) / 43.3" x 18.8" x 16.9" (in)
Gross Weight~ 46kg / 101lb
Operating Temperature-30°C to 55°C / -22°F to 131°F
Humidity10%-95%
