2MAGB-NCN-E Normal Speed Intelligent Barrier Gate (AC Turbine Vortex Pole Motor)
REQUEST QUOTE (for best price)
- Normal-speed of open / close: 6 second
- 90 degree Crank arm with rubber bar, Max. length 6m
- Inclusive of arm ×1,push button ×1,remoter ×2, boom bracket×1
- Can`t be equipped with anti-collision
- Exclusive of LED arrow display on housing : need to buy additionally
- Housing color optional: yellow silver(default)/red silver/dark silver
- Arm direction is interchangeable but the motor & reducer will need to be adjusted accordingly.

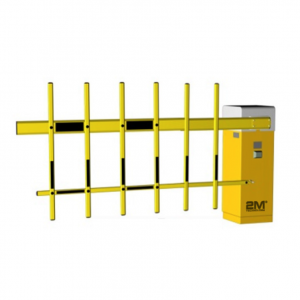

- Crank arm can be changed into fence arm very easily
The pricing is subject to change with customization. Allow 4-6 weeks for delivery.
Product Documents
Downloads
- Normal-speed of open / close: 6 second
- 90 degree Crank arm with rubber bar, Max. length 6m
- Inclusive of arm ×1,push button ×1,remoter ×2, boom bracket×1
- Can`t be equipped with anti-collision
- Exclusive of LED arrow display on housing : need to buy additionally
- Housing color optional: yellow silver(default)/red silver/dark silver
- Arm direction is interchangeable but the motor & reducer will need to be adjusted accordingly.
- Crank arm can be changed into fence arm very easily
Want to see this product in action? Schedule a live demo now!
REQUEST QUOTE (for best price)
| Dimensions | 55.1 × 11.8 × 39.4 in |
|---|---|
| Stainless Steel Types | |
| Ingress Protection | IP67 |
| IR Distance | 30m (98ft) |
| Country of Origin | China |
| GATE FEATURE | |
| Power Supply | AC 85~264V,50~60HZ, 480W |
| Motor | 240W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle |
| Remote (optional) | Distance﹥20m |
| Spring | 1~2 pcs. spring balance |
| Controller | 80C51 MCU, 20MHz, PWM variable frequency servo controller board |
| Loop detector input | pulse width 100﹥ ms |
| IR detector input | pulse width 100﹥ ms |
| Up & Down input | pulse width 100﹥ ms |
| Traffic light output | AC220V output power (passive), current Max. 3A/AC220V |
| Loop detector Syn. output | Relay NO output,; Current Max.0.5A/AC220V, or Max. 1A/DC12V |
| RS 485 interface | 9600bps, ASCII decimal encoded |
| Arm | 86×44mm Aluminum alloy octagonal arm with rubber bar, Max.6m Round arm with foam, Max. 3.5m |
| Housing | 1.8mm cold-roller sheet, IP 54 |
| Housing size (HxWxD) | 355×267×1035mm / 13.9" x 10.5" x 40.7" |
| Package size | 405×346×1070mm / 15.9" x 13.6" x 42.1" |
| Gross Weight | around 46 KG / 101lb |
| Operating temperature | -30oC , 55oC / -22oF , 131oF |
| Humidity | 10%-95% |
