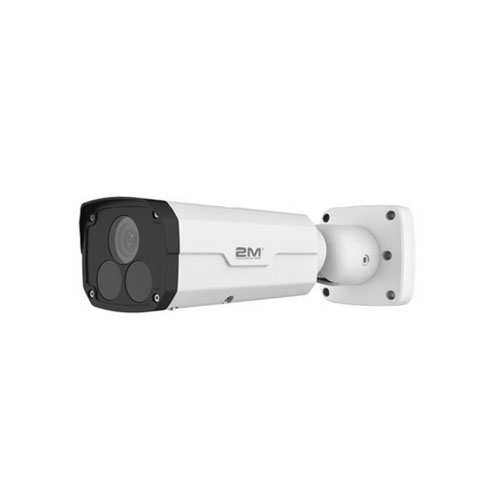

2MBIP-2MIR50SL-P 2MP Super Starlight Fixed Bullet Network Camera
Sensor: 1/2.8?, progressive scan, 2.0 megapixel, CMOS
Shutter: Auto/Manual, 1~1/100000 s
Power Supply: 12 V DC±25% / PoE (IEEE802.3 af)
Power Consumption: Max 9W
Product Documents
The 2MP Super Starlight Fixed Bullet Network Camera offers 2 megapixel resolution recording and up to 120 dB WDR (Wide Dynamic Range). This helps produce better images in indoor or outdoor environments. In addition, the 2D/3D DNR (Digital Noise Reduction) feature provides great video recording without any background noise. Lastly, the device is vandal resistant and has proven durability with a rating of IP67.
Key Features
Optics
- Starlight illumination
- Day/night functionality
- Smart IR , up to 50 m (164 ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor format
Network
- ONVIF Conformance
Structure
- Wide temperature range: -35°C to 60°C (-31°F to 140°F
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
| Weight | 2.2 lbs |
|---|---|
| Series | Professional Series |
| Resolution | 2 Megapixel (1920 x 1080) |
| Signal Type | |
| Night Vision Distance | 50 Meters (165 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Features | Ultra WDR 120DB, Starlight, Audio Input |
| Lens | Fixed 2.8mm Lens |
| Motion Detection | Up to 4 areas |
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Intrusion | Enter and loiter in a pre-defined virtual region |
| cross line | Cross a pre-defined virtual line |
| motion detection | Moving within a pre-defined virtual region |
| Recognition | Face detection |
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Network | |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S), API |
| Interface | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|
Power |
12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 6.4 W | |
| Dimensions (L × W × H) | 157.3 ×63 ×62.4mm (6.2” × 2.5” × 2.5”) |
| Weight | 0.45 kg (0.99 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing) |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Reset Button | Supported |
