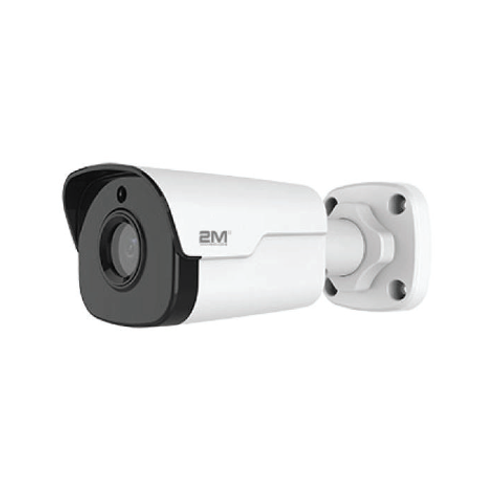

2MBIP-4KIR1004XUA-C 4K WDR Ultra-HD Vari-focal Bullet Network Camera (DISCONTINUED)

Ultra 265, H.265, H. 264, MJPEG

Embedded smart algorithm

Triple streams

ROI (Region of Interest)

REQUEST DEMO

Product Documents

Optics:

  • Day/Night functionality
  • Smart IR, up to 100m (328 ft) IR distance
  • Up to 120db Optical WDR (Wide Dynamic Range)
  • 2D/3D DNR (Digital Noise Reduction)
  • Optical glass window with higher light transmittance

Compression

  • Ultra 265, H.265, H. 264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest)
  • 9:16 corridor mode
  • Customized OSD

Network

  • ONVIF Conformance

Structure:

  • Wide temperature range: -40°C to 60°C (-40°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
Weight 3.6 lbs
Series

Corporate Series

Resolution

4k – 8 Megapixel (3840 x 2160)

Signal Type

Night Vision Distance

100 Meters (320 feet)

Lens

4x Optical Zoom

Night Vision Type

Infra Red (IR) LED

Features

Ultra WDR 120DB, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input, 2 Way Audio

Audio Compression

Edge Storage

,

Behavior Detection

, ,

Ingress Protection

IP67

Alarm I/O

Camera
Sensor 1/2.5″, 8.0 megapixel, progressive scan, CMOS
Lens 2.8 ~ 12mm@F1.6, P-Iris, AF automatic focusing and motorized zoom lens
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 77.8 31.1 15.6 7.8
12 333.3 133.3 66.7 33.3
Angle of View (H) 118.5° ~ 30.4°
Angle of View (V) 64.0° ~ 16.6°
Angle of View (O) 154.1° ~ 37.4°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.02Lux (F1.6, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >55dB
IR Range Smart-IR, up to 100m (328ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 8MP (3840*2160), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, Up to 256GB
·         Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/O Audio cable
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 2/1
Serial Port 1 RS485
Network 1 RJ45, 10M/100M Base-TX Ethernet
Video Output 1 BNC, impedance 75Ω; amplitude 1V [p-p]
General
Power DC 12V±25%, AC 24V±25%, PoE (IEEE 802.3at)
Power consumption: Max 13.7W
Dimensions (L × W × H) 305.5 × 104.1 × 97.3mm (12.0” × 4.1” × 3.8”)
Weight 1.65kg (3.6lb)
Working Environment -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
Reset Button Supported
