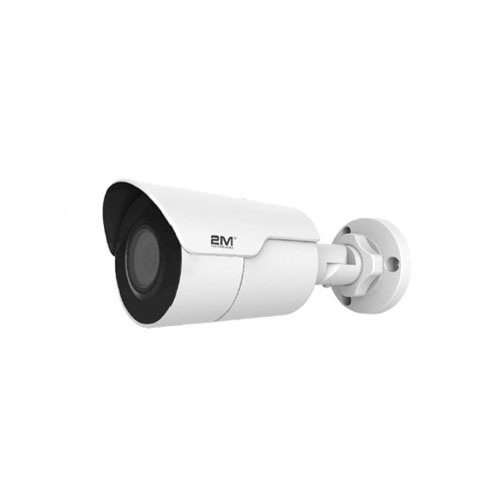

2MBIP-4KIR30U-P 4K Mini Fixed Lens Bullet IP Camera

Key Features:

  • Day/Night Functionality
  • Smart IR (up to 30m IR distance)
  • 2D/3D DNR
  • Tripple Steams Compression
  • ONVIF Conformance

Note: Due to our continued product research and development, 2mtechnology Inc. reserves the right to amend all the technical specifications without prior notice.

Product Documents

The 2M Technology 2MTIP-2MIR30-E Fixed Dome Network Camera comes with a 2MP lens. Additionally, the camera comes with Smart IR and day night functionality. This gives the camera an IR range of 30m or 98ft. The network camera has 2D/3D digital noise reduction for optimal quality footage. Futher, the camera follows ONVIF conformance and offers triple steam compression.



Key Features

Optics

  • Day/night functionality
  • SmartIR, up to 30m (98ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)
  • Up to 120dB WDR (Wide Dynamic Range

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor format

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
  • Wide voltage range of ±25%
  • IP67
  • 3-Axis
Weight1.1 lbs
Series

Professional Series

Resolution

4k – 8 Megapixel (3840 x 2160)

Signal Type

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Lens

Fixed 2.8mm Lens

Features

Audio Input

Dimensions

191.3×72.6×70.9mm (7.5”×2.9”×2.8”)

Ingress Protection

IP67

Operating Temperature

-30℃ ~ 60℃ (-22°F ~ 140°F)

Operating Humidity

≤95% RH (non-condensing)

Power

DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8W

Camera
Sensor1/2.5″, 8.0 megapixel, progressive scan, CMOS
Lens4.0mm@F2.06.0mm@F2.0




DORI Distance

Lens (mm)Detect(m)Observe(m)Recognize(m)Identify(m)
4.07228.814.47.2
6.010843.221.610.8
Angle of View(H)91.6°54.2°
Angle of view(V)47.2°32.5°
Angle of view(O)112.7°66.7°
Adjustment RangePan: 0°~360°Tilt: 0° ~ 90°Rotation: 0° ~ 360°
ShutterAuto/Manual, 1~1/100000s


Minimum Illumination

Colour: 0.05Lux (F2.0, AGC ON)

0Lux with IR on

Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile


Frame Rate

Main Stream:8MP (3840*2160), Max 20fps; Sub Stream:1080P (1920*1080), Max 30fps;

Third Stream:D1(720*576), Max30fps

9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line





motion detectionMoving within a pre-defined virtual region
RecognitionFace detection
Intelligent IdentificationDefocus, Scene Change, Object Left, Object Moving
Statistical AnalysisPeople counting


General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
ProtocolsIPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL,QoS
Compatible IntegrationONVIF(Profile S, Profile T), API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General


Power

DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8W
Dimensions (L × W × H)191.3×72.6×70.9mm (7.5”×2.9”×2.8”)
Weight0.5kg (1.1lb)
Working Environment-30(  ~ 60(  (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
