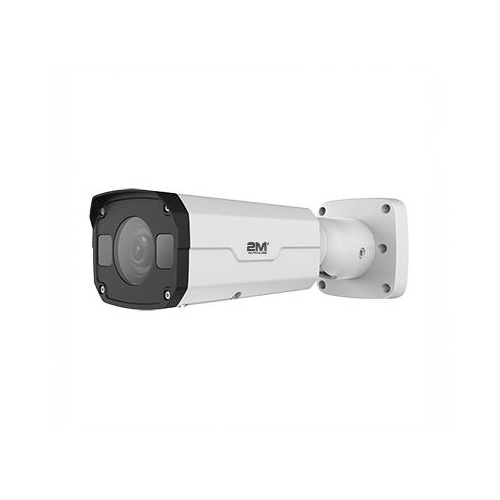

2M Technology 2MBIP-4KIR50Z-P 8MP VF Network IR Bullet Camera
REQUEST QUOTE
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Smart IR, up to 50m (164 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- 2D/3D DNR(Digital Noise Reduction)
Product Documents
The 2M Technology 8MP IP IR Bullet Camera is a top notch security device. The product comes with Smart IR illumination in areas up to 50 meters IR Distance. This feature helps optimize the user experience by providing crystal clear HD images. In addition, the IR anti-reflection window helps increase infrared transmittance in the camera. Lastly, the camera supports PoE power supply and has durability rating of IP67.
| Weight | 1.28 lbs |
|---|---|
| Series | Professional Series |
| Resolution | 4k – 8 Megapixel (3840 x 2160) |
| Signal Type | |
| Lens | Motorized 2.8-12mm Lens |
| Night Vision Distance | 50 Meters (165 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Features | Audio Input |
| Audio Compression | |
| Alarm I/O | |
| Edge Storage | |
| Behavior Detection | |
| Ingress Protection | IP67 |
| Camera | |||||||
| Sensor | 1/2″, 8.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | |||
| 12 | 270 | 108 | 54 | 27 | |||
| Angle of View (H) | 114.8° ~ 47.3° | ||||||
| Angle of View (V) | 75.3° ~ 20.4° | ||||||
| Angle of View (O) | 141.2° ~ 55.8° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.003Lux (F1.5, AGC ON) 0Lux with IR on |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >52dB | ||||||
| IR Range | Up to 50m (164ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (2592*1944), Max 30fps; 5MP (2944*1656), Max 30fps; 4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
||||||
| 9:16 Corridor Mode | Supported | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Two-way audio | Supported | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
| Interface | |||||||
| Audio I/O | Audio cable | ||||||
| Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 10W | |||||||
| Dimensions (L × W × H) | 253.4 × 86.4 × 78.7mm (57.6” × 3.4” × 2.8”) | ||||||
| Weight | 1.0kg (2.2lb) | ||||||
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Ingress Protection | IP67 | ||||||
