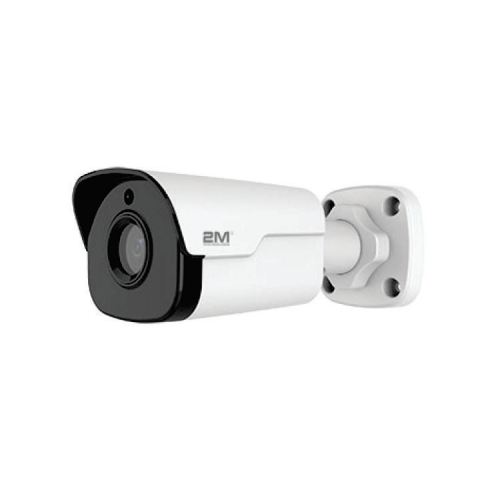

2MBIP-4MIR30UA-P 4MP Mini Fixed Bullet IP Camera
- Smart IR, up to 30m (98ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- ONVIF Conformance
- IP67
Product Documents
Compare
The 2M Technology 4MP Mini Fixed Bullet IP Camera comes with many advanced features. The camera comes with day/night functionality that allows the user to shoot in total darkness using Smart IR illumination. The 2D/3D DNR (Digital Noise Reduction) gives the device the ability to remove noise interference from the camera signal. In addition to the IR anti-reflection window used to increase the infrared transmittance, the product also includes an Optical glass window with higher light transmittance. Lastly, the Mini Bullet has a weatherproof durability rating of IP67.
Key Features
Optics
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265, H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- 9:16 corridor format
Network
- ONVIF Conformance
Structure
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| Weight | 0.99 lbs |
|---|---|
| Series | Professional Series |
| Resolution | 4 Megapixel (2592 x 1520) |
| Signal Type | |
| Night Vision Distance | 30 Meters (100 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Lens | Fixed 2.8mm Lens |
| Features | Ultra WDR 120DB, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input |
| Alarm I/O | |
| Behavior Detection | |
| Ingress Protection | IP67 |
| Camera | ||||
| Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS | |||
| Lens | 4.0mm@F2.0 | 6.0mm@F2.0 | ||
| Angle of View (H) | 78.9° | 49.9° | ||
| Angle of View (V) | 39.6° | 27° | ||
| Angle of View (O) | 97.1° | 61.4° | ||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||
|
Minimum Illumination |
Color: 0.03Lux (F2.0, AGC ON)
0Lux with IR on |
|||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| Digital noise reduction | 2D/3D DNR | |||
| S/N | >52dB | |||
| IR Range | Up to 30m (98ft) IR range | |||
| Defog | Digital Defog | |||
| WDR | 120dB | |||
| Video | ||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||
|
Frame Rate |
Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps |
|||
| 9:16 Corridor Mode | Supported | |||
| HLC | Supported | |||
| BLC | Supported | |||
| OSD | Up to 8 OSDs | |||
| Privacy Mask | Up to 8 areas | |||
| ROI | Up to 8 areas | |||
| Motion Detection | Up to 4 areas | |||
| Smart | ||||
| Behavior Detection | Intrusion, cross line, motion detection | |||
| Intrusion | Enter and loiter in a pre-defined virtual region | |||
| cross line | Cross a pre-defined virtual line | |||
| motion detection | Moving within a pre-defined virtual region | |||
| Recognition | Face detection, Audio detection | |||
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | |||
| Statistical Analysis | People counting | |||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP | |||
| Authentication, User Authentication | |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Network | |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile T), API |
| Interface | |
| Alarm I/O | 1/1 |
| Built-in Mic | Supported |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 6W | |
| Dimensions (L × W × H) | 157.3 × 62.4 × 63mm (6.2” × 2.5” × 2.5”) |
| Weight | 0.45kg (0.99lb) |
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Ingress Protection | IP67 |
| Reset Button | Supported |
