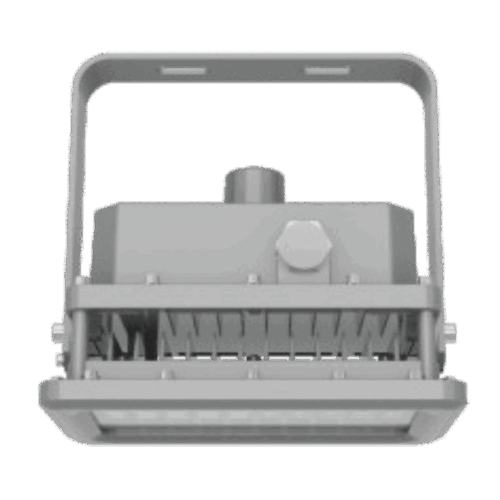

2MEXL-FA2 Explosion Proof LED Floodlight (20–60W)

SKU: 2MEXL-FA2
  • Available Power Ratings: 20W / 40W / 60W
  • Lumen Output: 2800 Lm / 5600 Lm / 8400 Lm
  • Luminous Efficacy: 140 Lm/W
  • Protection Ratings: IP66 / IP67 / IK08 (glass cover) / IK10 (wire guard)
  • Mounting Options: Ceiling, Wall, Hook, Pole, Stanchion, Trunnion (CID2 only)

Features

Compact Illumination for Hazardous Environments

The 2MEXL-FA2 Explosion-Proof LED Floodlight (20–60W) is designed for hazardous locations such as chemical facilities, offshore rigs, industrial grain silos, and flammable storage areas. Certified for use in Class I, Division 2 (CID2) and Zone 2/21/22, this fixture delivers high-efficiency lighting in compact form.

Its die-cast aluminum body, tempered glass lens, and stainless steel hardware provide long-lasting durability in extreme environments. With IP66/IP67 protection and IK08 (glass) or IK10 (wire guard) impact resistance, it performs reliably in both indoor and outdoor industrial settings.

Efficient and Focused Lighting

Available in 20W, 40W, and 60W, this fixture delivers up to 8400 lumens with an exceptional 140 lm/W luminous efficacy.

It supports multiple beam angles (40°, 60°, 90°, 120°) to meet a variety of lighting needs—from narrow spotlights to wide flood coverage. A color temperature range of 3000K–6500K and CRI >70 ensure visibility and safety in dim or complex workspaces.

Optional 0–10V dimming provides adjustable brightness to support energy management strategies.

Reliable in Harsh Operating Conditions

This explosion-proof floodlight is built to perform in a wide range of temperatures:

  • CID2 Areas: -40°C to +40°C (-40°F to +104°F)
  • Zone 2/21/22 (T3 Rated): -40°C to +55°C (-40°F to +131°F)

With L70-rated lifespan over 78,000 hours at 55°C, the fixture minimizes maintenance in remote or difficult-to-access areas.

Mounting Flexibility and Safe Cable Access

The fixture offers a wide range of mounting options for easy integration into different layouts:

  • CID2: Ceiling, wall, hook, trunnion, pole, and stanchion
  • Zone 2/21/22: Ceiling, wall, hook, pole, and stanchion

Cable Entry Options:

  • CID2: Side (3/4″ NPT standard; optional M20, M25, 1/2″ NPT), Top (3/4″ NPT standard)
  • Zone 2/21/22: Side (M20 standard; optional M25, 1/2″ NPT, 3/4″ NPT), Top (3/4″ NPT standard)

A gray RAL7040 finish and optional glare visor make this compact floodlight suitable for a wide variety of rugged industrial zones.

Key Specifications:

  • Wattage Options: 20W / 40W / 60W
  • Lumen Output: 2800 / 5600 / 8400 lumens
  • Efficacy: 140 lm/W
  • CCT Range: 3000K – 6500K
  • Beam Angles: 40°, 60°, 90°, 120°
  • CRI: >70
  • Dimming: 0–10V optional
  • Housing: Die-cast aluminum
  • Lens: Tempered glass & polycarbonate
  • Protection: IP66 / IP67 / IK08 / IK10
  • Ambient Temperature:
    • CID2: -40°C to +40°C
    • Zone 2/21/22: -40°C to +55°C
  • Mounting: Ceiling, Wall, Hook, Trunnion, Pole, Stanchion
  • Cable Entry Options: Side/Top NPT or M-thread (varies by rating)
  • Lumen Maintenance: L70 >78,000 hours @55°C
  • Warranty: 5-Year Standard Warranty

Applications:

  • Chemical storage facilities
  • Offshore platforms
  • Paint spray booths
  • Refineries and fuel depots
  • Grain silos and mills
  • Tunnel and mining sites

Specifications

Light Type

LED

Hazardous Area Type

Class I, Div 2, Class II, Div 1, Class II, Div 2, Zone 2, Zone 21, Zone 22

Light Power

20W, 40W, 60W

Lumen Output

2,800 Lm, 5,600 Lm, 8,400 Lm

Luminous Efficacy

140 Lm/W

Ingress Protection

IP66, IP67

Vandal Resistant

IK10, IK08

Country of Origin

China
