Explosion Proof, Explosion Proof Cameras
Compare
2MEWC04-IP4KZ 8MP IP Motorized Infrared Bullet Camera with Water Cooling Explosion Proof Housing – 304 Stainless Steel
REQUEST QUOTE (for best price)
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Smart IR, up to 50m (164ft) IR distance
Note: This is a special order camera. Allow 4-6 weeks for delivery.
Product Documents
Downloads
Features:
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Smart IR, up to 50m (164ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- ONVIF Conformance
- Support PoE power supply
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide voltage range of ±25%
- 3-Axis Constructed of stainless steel 304
- IP68 ingress protection
- Water cooling system
- 2x G3/4 or NPT3/4 cable entries
- Can be wall or pole mounte
| Dimensions | 9.98 × 3.4 × 2.8 in |
|---|---|
| Stainless Steel Types | |
| Ingress Protection | IP68 |
| Night Vision Distance | 50 Meters (165 feet) |
| Country of Origin | China |
| CERTIFICATES | |||||

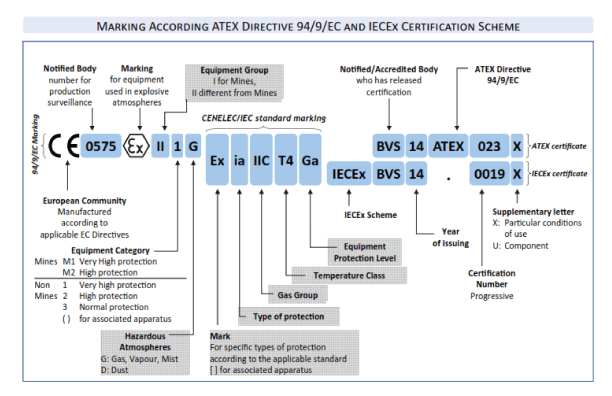

| Certificate Mark | ExdIIC T5 GB/DIP A20 TA, T5 | ||||
| MECHANICAL | |||||
| Housing | Stainless steel 316L (also available in 304) | ||||
| IP | IP68 | ||||
| Cable Thread Hole | 2pcs G3/4 or NPT3/4 | ||||
| ELECTRICAL | |||||
| Voltage | AC85V~AC265V or DC24V or AC24V | ||||
| Power | 15W | ||||
| AMBIENT | |||||
| Ambient Temperature | Water cooling: 0°C – to +250°C [32 °F – 250°F] | ||||
| Air Pressure | 80Kpa to 106Kpa | ||||
| Relative Humidity | ≤95% (no condensation) | ||||
| GENERAL | |||||
| Size | 374 x 163 x 185 (mm) 14.8" x 6.4" x 7.3" (in) | ||||
| Housing Inner Size | 260 x 80 x 80 (mm) 10.2" x 3.1" x 3.1" (in) | ||||
| Weight | 9.1kg (20.1 lbs) | ||||
| Mounted | wall, pole | ||||
| Wall Bracket | 2MEWB04 (304); 2MEWB16 (316L) | ||||
| CAMERA SPECIFICATIONS | |||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8~12 mm, motorized zoom lens | ||||
| DORI Distance | Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8mm | 63 | 25.2 | 12.6 | 6.3 | |
| 12mm | 270 | 108 | 54 | 27 | |
| Angle of View (H) | 91.0°~27° | ||||
| Angle of View (V) | 54.4°~13.7° | ||||
| Angle of View (O) | 118.3°~33.2° | ||||
| Adjustment Angle | Pan: 0°~360°; Tilt: 0°~90°; Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||
| Minimum Illumination | Color: 0.02 Lux (F1.6, AGC ON); 0 Lux with IR on | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| S/N | >52dB | ||||
| IR Range | Up to 30m (98 ft) IR range | ||||
| WDR | DWDR | ||||
| VIDEO | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (2592*1944), Max 30fps; 5MP (2944*1656), Max 30fps; 4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
| 9:16 Corridor Mode | Supported |
| HLC | Supported |
| BLC | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| AUDIO | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| STORAGE | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
| NETWORK | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Audio I/O | Audio cable |
| Input: impedance 35kΩ; amplitude 2V [p-p] | |
| Output: impedance 600Ω; amplitude 2V [p-p] | |
| Alarm I/O | 1/1 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] |
| NETWORK | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 10W |
| Dimensions (L × W × H) | 253.4 × 86.4 × 78.7mm (57.6” × 3.4” × 2.8”) |
| Weight | 1.0kg (2.2lb) |
| Working Temperature | -35°C ~ 60°C (-31°F ~ 140°F), |
| Working Humidity | ≤95% RH (non-condensing) |
| Ingress Protection | IP67 |
