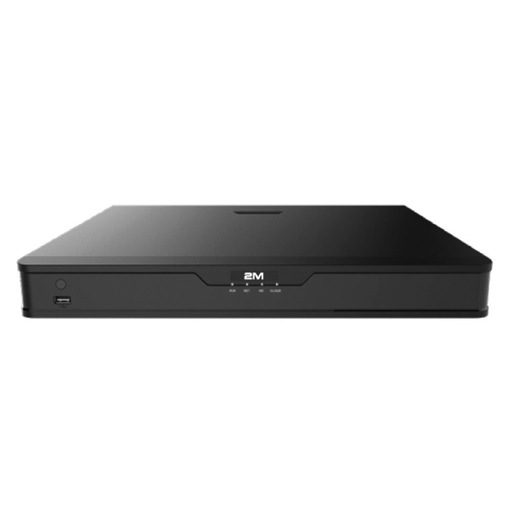

2MN-8116P16-GS 16ch Network Video Recorder w/ 1 SATA Capacity and 16 POE

  • 16-channel input
  • Plug & Play with 16 independent PoE network interfaces
  • Up to 8 Megapixels resolution recording
  • 2 SATA HDDs, up to 10TB for each HDD
  • MStar Chip
  • NDAA Compliant

Product Documents

  • Support Ultra 265/H.265/H.264 video formats
  • 16-channel input
  • Plug & Play with 16 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF
  • Profile S, Profile G, Profile T
  • Support HDMI and VGA simultaneous output
  • Up to 8 Megapixels resolution recording
  • 2 SATA HDDs, up to 10TB for each HDD
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • NDAA Compliant
  • MStar chip compliant
Weight5.29 lbs
Dimensions14.9 × 12.4 × 2.1 in
PoE Channels

Standalone Recorder

VIDEO/AUDIO INPUT
IP Video Input16-ch
Two-way Audio Input1-ch, RCA
NETWORK
Incoming Bandwidth160Mbps
Outgoing Bandwidth64Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
VIDEO




HDMI/VGA Output

HDMI: 4K (3840×2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60,

1280X720@60, 1024X768@60

VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60

Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Synchronous Playback16-ch
Corridor Mode Screen3/4/5/7/9/10/12/16
DECODING
Decoding FormatUltra265/H.265/H.264
Live View/Playback8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30,

16 x 720P@30

HARD DISK
SATA2 SATA interfaces
CapacityUp to 10TB for each disk
EXTERNAL INTERFACE
Network Interface1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB InterfaceFront panel: 1 x USB2.0, Rear panel: 1 x USB3.0
Alarm In4-ch
Alarm Out1-ch
POE
Interface16 independent 100Mbps PoE network interfaces
Max PowerMax 30W for single port Max 240W in total
Supported StandardIEEE 802.3af/at
GENERAL
Power Supply100 ~ 240 V AC

Power Consumption: ≤10W (without HDD)

Working Environment-10°C~+ 55°C (+14°F~+131°F),

Humidity ≤ 90% RH (non-condensing)

Dimensions (W×D×H)380 x 315 x 53 (mm) / 14.9″ × 12.4″ ×2.1″ (in)
Weight (without HDD)≤2.6kg (5.29lb)
