2MRDIP-D2 Mini Bi-spectrum Radiometric Thermal Detector

  • On-board temp-detection algorithm
  • Effective pixels 256×192
  • Sensitivity ≤65mK
  • Wide-angle lens
  • 20 spots / 2 lines / 16 areas temperature detection
REQUEST DEMO

Product Documents

Features:

  • On-board temp-detection algorithm
  • Effective pixels 256×192
  • Sensitivity ≤65mK
  • Wide-angle lens
  • 20 spots / 2 lines / 16 areas temperature detection
  • 17 color control
  • DVE image enhance
  • Multi-bracket easy to install

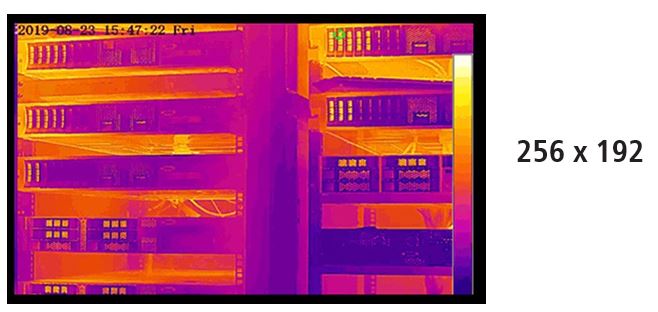

High Resolution:

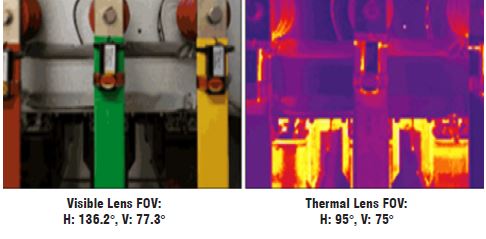

Wide Angle:

High Resolution Widest Angle



APPLICATION:

High Voltage Cabinet
Charging Pile

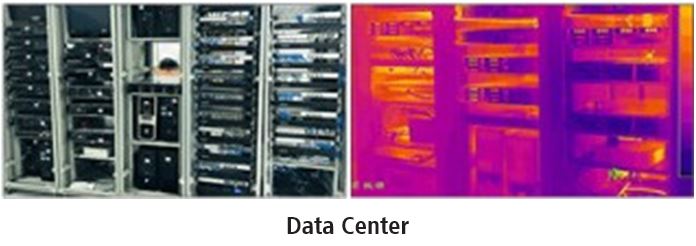

Data Center

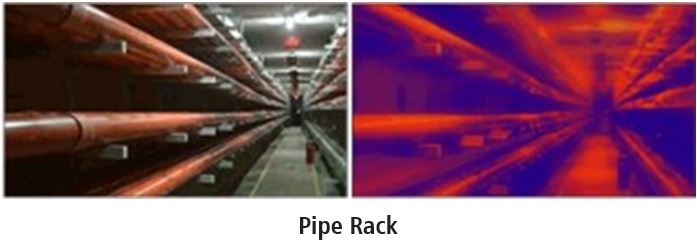

Pipe Rack





THERMAL CAMERA
Detector TypeUncooled IRFPA Microbolometer
Effective Pixels256(H) ×192(V)
Thermal Sensitivity (NETD)≤65mK @F1.0, 300K
Spectral Range8~14um
Image SettingPolarity LUT/ DVE/ Mirror/ FCC/ /3D DNR
Brightness/Contrast/ ROI
Color PalettesBlack-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes
Lens TypeFixed
Focus ControlManual Focus
F No.F1.0
Angle of ViewH: 95°, V:75°
VISIBLE CAMERA
Image Sensor1/2.8″ Sony CMOS
Effective Resolution1920 (H)×1080(V)
Shutter Speed1/5 ~ 1/20,000s
Min. IlluminationColor: 0.01Lux @(F1.2, AGC ON), B/W: 0.1Lux
S/N RatioMore than 55dB
W-LED1pcs
Max ApertureF2.0
Angle of ViewH: 136.2°, V: 77.3°
Focus ControlFixed
VIDEO AND AUDIO
CompressionH.265, H.264, MJPEG




Frame Rate

Main Stream:

Thermal: D1 @25/30fps Visible: 1920×1080 @25/30fps Sub

Stream:

Thermal: CIF @25/30fps

Visible: D1/VGA/640×360/CIF/QCIF/QVGA @25/30fps

Bit Rate ControlCBR/VBR


Bit Rate

Thermal: 100Kbps~6Mbps Visible: Main stream: 500Kbps~12Mbps; Sub stream: 100Kbps~6Kbps
Digital Zoom16x
MirrorSupport
DefogSupport
Motion DetectionSupport
Privacy MaskingOff / On (4 Area, Rectangle)
DVE Image EnhanceSupport
Audio CompressionN/A
INTELLIGENCE
Intelligent FunctionsMotion detection, Disk alarm, I/O alarm, Temperature alarm
IVSPerimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed
TEMPERATURE DETECTION
Detection ModeSpot, Line, Areav
Detection PresetSupport 3 temperature measurement rule types,

20 rules (20 points / 2 lines / 16 regions)

Temperature AlarmOver temperature alarm, Temperature difference alarm
Accuracy±2°C / ±2%
Response Time≤30ms
Effective temperature working environment-20°C~60°C(-4°F~140°F)
Theory of temperature measurement range-20°C~150°C(-4°F~302°F)


Temperature display mode

Temperature target >5°C, Display absolute temperature value, Temperature target ≤5°C, Display relative temperature value (temperature difference DEV = highest value – average)
NETWORK
EthernetRJ-45 (10/100Base-T)
ProtocolsIPv4 / IPv6, HTTP, RTSP / RTP / RTCP, TCP / UDP, DHCP, DNS, PPPOE, SMTP, SIP
InteroperabilityONVIF, CGI, SDK
Streaming MethodUnicast
Max. User Access10 Users
Edge StorageMicro SD card 128GB
Web Viewer<IE11, Chrome, Firefox
Web LanguageEnglish, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian
INTERFACE
Ethernet1 Ethernet (10/100 Base-T) RJ-45 Connector
AudioN/A
Alarm1ch Alarm Input, 1ch Alarm Output
RS485Support
USB InterfaceSupport
CVBS OutputSupport
Reset ButtonSupport(Built-in)
GENERAL
Power SupplyDC12V
Power ConsumptionMax 10W
Operating Temperature-20°C~60°C(-4°F~140°F)
Storage Conditions0~ 90% RH
CertificationsCE /FCC
Ingress ProtectionIP66
CasingMetal
Dimensions63 x 43 x 92 (mm)
Net Weight450g
