Solar Powered CCTV
Compare

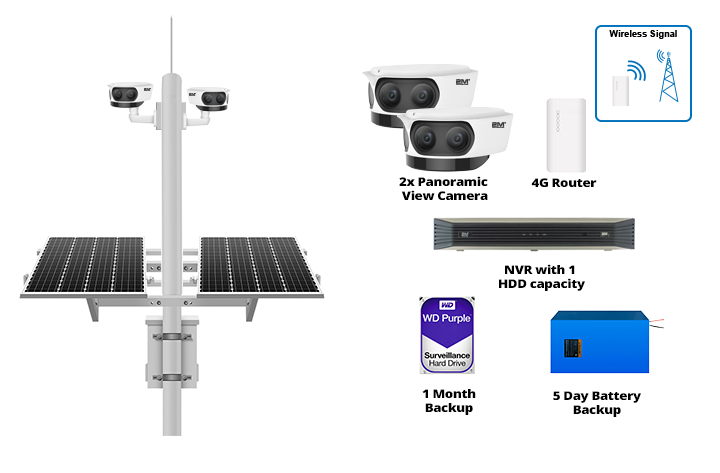

2MS2PAN-4G3D Solar Solution with 2 Starlight 4K Panoramic Cameras, NVR and 4G Router Standby 24hr x3 Days
REQUEST QUOTE (for best price)
- 4K Panoramic Cameras
- NVR
- 4G Router
- Standby 24hr x3 Days
- 5th generation infrared technology
- Smart IR
- 180°/360° panoramic image
- Intelligent flow people tracking
- Smart temperature control technology
- IR anti-reflection window to increase the infrared transmittance
Product Documents
Downloads
2MS2PAN-4G3D Solar Solution with 2 Starlight 4K Panoramic Cameras, NVR and 4G Router Standby 24hr x3 Days
Starlight Panoramic Network Camera: 2MPANIP-4KIR50-P
- Two 4K Panoramic Cameras
- 180° horizontal viewing angle for each camera. Full 360° coverage with 2 cameras
- Customized OSD
- 5th generation infrared technology, up to 50m (164ft)
- Video Recorder : 2MN-8004-P4
- 8 channel IP camera input
- 8 PoE channels
- 1 TB hard drive included
Solar Power System
- Monocrystalline silicon solar cell module with a 25 year service life
- Durable Lithium iron phosphate battery with an 8 year service life
- Standby time: 24 hours for 3 days
- Easy to manage controller
- Integrated power cabinet
Note: More cameras can be added. Further customization is available. Price will change accordingly.
| Country of Origin | China |
|---|
| CAMERA: 2MPIP-2MIR505X | |||||
| Sensor | 1/1.8″ progressive scan, 2.0 megapixel, CMOS | ||||
| Lens | 4 x 4.2mm lens | ||||
|
DORI Distance |
Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.2mm | 50.4 (165.4ft) | 20.2(66.3ft) | 10.1(33.1ft) | 5.0(16.4ft) | |
| Angle of View (H) | 180° | ||||
| Angle of View (V) | 80° | ||||
| Angle of View (O) | 221.4° | ||||
| Adjustment Angle | Pan: -90°~90°; Tilt: -45°~60° | ||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
| Minimum Illumination | Color: 0.002lux (F1.8,AGC ON)
0lux with IR |
||||
| Iris | F1.8 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| S/N | >55 dB | ||||
| IR Range | UP to 50m (164ft) | ||||
| WDR | 120dB | ||||
| VIDEO | |
| Video Compression | Ultra H.265, H.265, H.264, MJPEG |
|
Frame Rate |
Main Stream: 4096×1800:Max. 30 fps; Sub Stream: 1920×832:Max. 30 fps; Third Stream: 1280×560: Max. 30 fps |
| HLC | Supported |
| BLC | Supported |
| OSD | Up to OSD’s |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| SMART | |
|
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| AUDIO | |
| Audio Compression | G.711 |
| Two-way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| STORAGE | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| NETWORK | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| INTERFACE | |
|
Audio I/O |
1 Input: impedance 35 kΩ; amplitude 2 V [p-p] |
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2/1 |
| Network | 1x100M/1000M Base-FX SFP + 2x10M/100M/1000M Base-TX
Ethernet |
| GENERAL | |
| Power | AC24V/DC24V±25% |
| Power Consumption | 48W Max |
| Dimensions | 259 x 211 x 115 (mm) |
| Weight | 2.4kg (5.3lb) |
| Working Environment | –40°C ~ +70°C (-40°F ~ 158°F),
Humidity: 10%~95% RH (non-condensing) |
| Ingress Protection | IP67 |
| Reset Button | Supported |
| RECORDER MODEL: 2MN-8008-P8 | |
| VIDEO INPUT/ OUTPUT | |
| IP Video Input | 8CH |
| Two-way Audio Input | 1CH, RCA |
| NETWORK | |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| VIDEO/AUDIO OUTPUT | |
|
HDMI/VGA Output |
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI: 4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 8-ch |
| Corridor Mode Screen | 3/4/5/7/9 |
| DECODING | |
| Decoding format | Ultra 265, H.265, H.264 |
| Liveview/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
3 x 12MP@25, 4 x 4K@30, 8 x
4MP@30 |
| HARD DISK | |
| SATA | 2 SATA interfaces |
| Capacity | up to 10TB for each disk |
| EXTERNAL INTERFACE | |
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| POE | |
| Interface | 8 independent 100 Mbps PoE network interfaces |
|
Max Power |
Max 30W for single port
Max 130W in total (16.25W for each) |
| Supported Standard | IEEE 802.3af/at |
| GENERAL | |
| Power Supply | 100 ~ 240 V AC |
| Power Consumption | ≤ 12 W (without HDD) |
|
Working Environment |
-10°C~+ 55°C (+14°F~+131°F)
Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 380 mm × 315mm × 53 mm (15″ × 12.4″×2.1″) |
| Weight (without HDD) | ≤2.42kg (5.34lb) |
| SOLAR MODULE SPECIFICATIONS | |||
| MODULE DATA | |||
| Standard Power (W) | 170 | 300 | 380 |
| Working Voltage (V) | 18.86 | 32.01 | 38.41 |
| Working Current (A) | 8.51 | 8.86 | 8.86 |
| Open Circuit Voltage (V) Voc | 22.35 | 37.27 | 44.72 |
| Short-circuit Current (A) Isc | 9.02 | 9.373 | 9.895 |
| Cell Efficiency (%) CE | 19.3 | 19.9 | 19.9 |
| Module Efficiency (%) ME | >16.13 | >17.43 | >17.52 |
| Tolerance (%) | ±3% | ||
| Nominal Operating Cell Temperature | 47°C (+/- 2°C) | 116.6°F (+/- 35.6°F) | ||
| TEMPERATURE COEFFICIENTS | |||
| Short Circuit Current Coefficient Isc (%) | 0.04°C / 32.1°F | ||
| Open Circuit Voltage Coefficient Voc (%) | -0.38°C / 31.3°F | ||
| Nominal Power Factor Pm (%) | -0.47°C / 31.2°F | ||
| Working Current Coefficient Im(%) | 0.04°C / 32.1°F | ||
| Working Voltage Coefficient Vm (%) | -0.38°C / 31.3°F | ||
| COMPONENTS & MECHANICAL DATA | |||
| Solar Cell | 156 x 156 Mono-crystalline silicon | ||
| Number of Cell (pcs) | 4 x 9 series connection | 6 x 10 series connection | 6 x 12 series connection |
| Size of Module | 1485 x 668 mm/
4.9′ x 2.2′ ft |
1640 x 990 mm/
5.4′ x 3.2′ ft |
1960 x 990/
6.4′ x 3.2′ ft |
| Front Glass Thickness | 3.2mm | 0.1″ in | ||
| Surface Maximum Load Capacity | 2400-5400Pa | ||
| Allowable Hail Load | 23m/s, 7.53g | 23m/s, 0.3oz | ||
| Weight Per Piece (kg) | 15.26kg/33.6 lbs | 18.86/41.6 lbs | 22.16/48.9 lbs |
| Junction Box Type | Pass the TUV or CE Certificate | ||
| Bypass Diode Rating (A) | 12 or None | ||
| Cable & Connector Type | Pass the TUV or CE Certificate | ||
| Frame
(Material Corners,etc.) |
30# / 35# | 40# / 35# | |
| Back Board Type (Brand Type) | TPT, PET or KPF | ||
| Working Temperature | -40°C to 85°C | -40°F to 185°F | ||
| Standard Test Conditions | AM1.5 1000W/m2 25°C/77°F | ||
| CONTROLLER SPECIFICATIONS | |
| System Voltage | 12V/24V/48V/96V automatic recognition |
| Max Charging Current | 40A |
| Fast Charging Voltage | 14.0/28.0V/56V/112V(25°C)/(77°F) |
| Boost Charging Voltage | 14.5/29.0V/58.0V/116V(25°C)/(77°F) |
| Equalization Charging Voltage | 14.8/29.6V/59.2V/118.4V(25°C)/(77°F) |
| Float Charging Voltage | 13.7/27.4V/54.8V/109.6V(25°C)/(77°F) |
| Low Voltage Alarm | 11.0/22.0/44.0/88.0V |
| Low Voltage Disarming | 12.5/25.0V/50.0V/100.0V |
| Storage Cell Type | Liquid, Gel, Lithium |
| Temperature Compensation | -4.17mV/K per cell (boost charging, equalization charging);
-3.33mV/K per cell (float charging) |
| Solar Power
End Max Voltage |
55V/100V/150V/300V |
| Storage Cell Max Voltage | DC280V |
| Cable Length | 120mm/80mm | 4.7″ in/3.1″ in. |
| High Protection Voltage For Storage Cell | 15.5/31.0/62V/124V |
| Communication Protocol | RS232/RS485/TCP/IP transmission wired or wireless by GPRS/3G/4G etc. |
| Recommended Wire Diameter | 6mm2 |
| Max Current Consumption | 8mA /16mA /24mA |
| Working Temperature | -40°C ~ 60°C |
| Protection Level | IP30~IP68 |
| Altitude (for reference) | 4000~5000m | 2.5~3.1 miles |
| BATTERY SPECIFICATIONS | |
| Voltage | 12.8V |
| Max Capacity | 230AH |
| Discharge Stop Voltage | 11.2V |
| Charge Stop Voltage | 14.4V |
| Working Temperature | -10°C~70°C | 14°F to 158°F |
| Service Life | 2000-2500 circle life |
|
Features |
Deep discharge depth, no memory, environmental protection, portable, long life |
