Displays, Interactive, LED

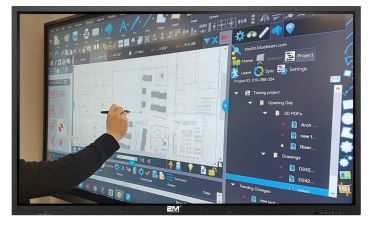

2MSID-XX Smart Interactive Display
- Ultra-HD display available in 3 sizes 65″, 75″ and 86″.
- IR (Infrared Red) touch technology, supports 20 points writing
- Smart sidebar menu
- Wireless screen sharing, convenient in a presentation situation
- Double-directional operation creates flexible and efficient interaction
- Works with Windows® and Android® operating
Product Documents
Downloads
Features:
- Ultra-HD display available in 3 sizes 65″, 75″ and 86″.
- Metal housing, 4mm AG anti-glare tempered glass, and ultra-thin design
- IR (Infrared Red) touch technology, supports 20 points writing
- Writing height below 2mm will display smoother
- All-channel annotating, with built-in Android® writing software
- Smart sidebar menu
- Wireless screen sharing, convenient in a presentation situation
- Optional: Pluggable PC Module
- Double LAN bridging, supports Android®, Pluggable PC Module (Windows system) and external PC to make the connection to a network easier
- Public USB port auto switch
- Integrated antenna
- All channels can be loop-outed by HDMI
- Support shortcut gesture; two-finger zoom, three-finger drag, back of hand to erasure and
- Enter comment mode in any interface and sign your idea at any
- The meeting record can be sent by email or saved via QR code
- Share photos and documents on the big screen wireless through PC, smartphones and PAD.
- Supports up to 4 devices mirroring simultaneously and provide you clear comparison.
- Double-directional operation creates flexible and efficient interaction
- Works with Windows® and Android® operating
| DISPLAY | |
| Screen Size | Available in 65″, 75″ and 86″ in. |
| Backlight | D-LED |
| Pixel Pitch | 0.4935×0.4935 |
| Resolution | 3840×2160 |
| Brightness | 400 cd/m2 |
| Contrast | 1200:1 |
| Response Time | 8 ms |
| Color | 1.07B |
| Viewing Angle | Horizontal 178°, Vertical 178° |
| View Area | Varies depending on the display size |
| ANDROID SYSTEM | |
| CPU Architecture | ARM A73+A53 |
| CPU Working Frequency | 1.5GHz |
| CPU Core | Quad Core |
| RAM | 3GB DDR4 |
| ROM | 16GB |
| OS | Android 8.0 |
| TOUCH | |
| Sensing Type | Infrared Touch Frame |
| Touch Accuracy | ±1mm |
| Surface Protection | 4mm Toughened Glass |
| Response Time | ≤10ms |
| Theory Clicks | Unlimited |
| Minimum Touch Object | ≥2mm |
| INTERFACE | |
|
Input Interface |
HDMI x3, DP x1, VGA x1, LAN x2, PC-AUDIO IN x1,
YPBPR x1, AV x1, TOUCH-USB x2, OPS x1, Android® USB x2, Public USB x2 |
| Output Interface | HDMI x1, AV x1, S/PDIF x1, Audio Out x1 |
| Control Interface | RS232-IN x1 |
| SPEAKER | |
| Speaker | 2×15W |
| OSD | |
|
Multi- Language |
22 (English, Turkish, Danish, Norwegian-Bokmol, Romanian, Greek, Arabic, France, Spanish, Portuguese, German, Italian, Dutch, Swedish, Finnish, Polish, Czech, Russia, Korea, Simplified Chinese, Traditional Chinese, Japanese ) |
| VESA | |
| VESA | 4-M8 Screw Hole 600 x 400 (mm) |
| GENERAL | |
| Power Supply | 100 to 240 V AC |
|
Consumption |
≤ 500 W (on without OPS)
< 0.5 W (Standby) |
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Operating Humidity | 20%~80% (No Condensation) |
| Storage Temperature | 14°F ~ 140°F / -10°C to 60°C |
| Storage Humidity | 10% ~ 80%(No Condensation) |
| ACCESSORY | |
|
Standard |
Remote Control×1, Power Cable×1, HDMI Cable×1, USB A-B Cable×1, Touch Pen×2, Qualified Certificate Lable×1, User Manual×1, Quick Guide×1, Warranty Card×1, Wall Mount×1, Wireless Screen Sharing Dongle×1, USB WiFi Adapter×1 |
This product is available in 65″ 75″ and 86″:
| 2MSID-65 – 65″ INTERACTIVE WHITEBOARD | |
| Number of People | ≤10 |
| Meeting Room Size | 8~15m2 |
| Product Size (WxHxD) | 59.3″ x 35.5″ x 3.8″ (in) / 1506.3 x 901.3 x 96.1(mm) |
| Packing Size (WxHxD) | 65.4″ x 41.1″ x 9.6″ (in) / 1660 x 1045 x 245 (mm) |
| Net Weight | 92.6lbs / 42Kg |
| Gross Weight | 125.7lbs / 57Kg |
| 2MSID-75 – 75″ INTERACTIVE WHITEBOARD | |
| Number of People | 10 ~ 15 |
| Meeting Room Size | 15 ~ 25m2 |
| Product Size (WxHxD) | 78.3″ x 42.5″ x 4.7″ (in) / 1735.98 x 1034.52 x 103.75 (mm) |
| Packing Size (WxHxD) | 74″ x 45.7″ x 11″ (in) / 1880 x 1160 x 280 (mm) |
| Net Weight | 127.9lbs / 58Kg |
| Gross Weight | 165.3lbs / 75Kg |
| 2MSID-86 – 86″ INTERACTIVE WHITEBOARD | |
| Number of People | 15 ~ 25 |
| Meeting Room Size | 25~40m2 |
| Product Size (WxHxD) | 78.3″ x 42.5″ x 4.7″ (in) / 1989.18 x 1080.22 x 119.7 (mm) |
| Packing Size (WxHxD) | 84.3″ x 52.8″ x 11″ (in) / 2140 x 1340 x 280 (mm) |
| Net Weight | 169.8lbs / 77Kg |
| Gross Weight | 219.36lbs / 99.5Kg |
