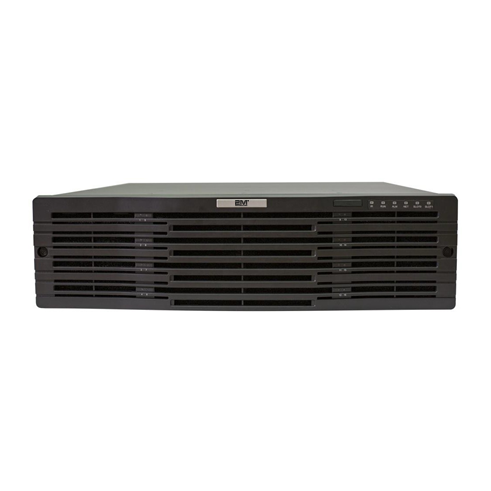

2MN-882000 Super NVR Smart Integrated Surveillance Platform with Video Input

  • Connection: 1000 device connections, up to 2000 channels of high-definition network videos
  • Storage: Max 16 hard disks and 2 disk enclosures; expandable up to 48 disks with 384TB storage
  • Decoding: Max 16×1080P decoding outputs in three screens, expandable up to 112×1080P in 15 screens with 2 decoding cards inserted

Product Documents

Features

  • Stability: Linux OS, dual-BIOS, redundant power
  • Compatibility: Third-party IP Cameras supported with standard ONVIF
  • Access: Browser/Server, Client/Server and mobile clients (both iOS and Android)
  • Connection: 1000 device connections, up to 2000 channels of high-definition network videos
  • Management: Unified management of NVR, IPC, encoder, decoder, network keyboard, cloud devices, alarm control panel and door access control, support devices’ configuration import/export
  • Storage: Max 16 hard disks and 2 disk enclosures; expandable up to 48 disks with 384TB storage
  • Decoding: Max 16×1080P decoding outputs in three screens, expandable up to 112×1080P in 15 screens with 2 decoding cards inserted
  • Service: Live view, playback, sequence, video wall, E-map, two-way audio, and alarm plan
  • VCA: Support of receiving VCA alarms, configuring alarm-linkage operations, and displaying people counting statistics in reports
  • Reliability: Support of HTTPS, 802.1x authentication, ARP protection, Telnet enabling/disabling, network fault tolerance, multi-IP configuration and load balancing
SKU: 2MN-882000 Super NVR Category: Tags: , , , , , , , ,
Weight22 lbs
Dimensions18.8 × 19 × 5.1 in
VIDEO MANAGEMENT
Number of Connected Cameras per ServerUp to 2000 IP Cameras


Device Management

IPC, NVR, encoder, decoder(standard/expanded), network keyboard, cloud devices, alarm control panel and door access control
Numbers of Online Users300
Numbers of roles per user16
Bandwidth of video input per server512 Mbps
Bandwidth of video output per server384 Mbps
DECODING
Video compressionUltra265, H.265, H.264
Decoding4×4K@30, 16×1080p@30, 36×720p@30, 64×D1
Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/960H/ D1/2CIF/CIF/QCIF
Display on video wallHDMI (×2) and VGA(×1) output; HDMI output supports 4K resolution
Audio compressionG.711
Decoding card (optional)Max 2 cards supported; models: HDMI4-C and HDMI6-C
HDMI4-C

decoding card

4-ch HDMI outputs, with decoding of 4*4K@60 or 8*4K@30 or 32*1080P@30 or 64*720P@30
HDMI6-C

Decoding Card

6-ch HDMI outputs, with decoding of 6*4K@60 or 12*4K@30 or 48*1080P@30 or 96*720P@30
STORAGE
HDD InstallationHot-swappable HDDs Support 16HDDs (3.5″, up to 8TB for each )
RAID ModeRAID1, RAID5,RAID6,RAID10,RAID50,RAID60
Bandwidth of Video Storage per Server512Mbps
Disk Enclosure (optional)Max 2 disk enclosures supported
2MDE1008 Disk

enclosure

8xSATA interfaces, up to 8TB storage per interface
2MDE1016 Disk

Enclosure

16xSATA interfaces, up to 8TB storage per interface
PLAY


Play Control

1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 16 / 17 / 25 / 32 / 36 / 64 window display Corridor format

Up to 3 auxiliary monitors



Playback

Play NVR recordings

Up to 24 channels for multiple clients; synchronous play- back up to 16 channels for single client

SYSTEM
Main ProcessorIntel(R) CPU
Memory4GB DDR3L
Power supply100-240 VAC (with power on/off switch) Dual-power redundancy
INTERFACE
Network4×10M/100M/1000M Base-T adaptive Ethernet interfaces 2×1000M SFP optical interfaces
USB4×USB3.0
HDMI2×HDMI
VGA1×VGA
Serial1×RS-232 (RJ45), 1×RS-485 (RJ45)
Alarm Input/Output24×alarm inputs, 8×alarm outputs
Power Output12 V DC
Audio AlarmBuzzer


Expansion

1×eSATA interface 2×miniSAS interfaces 2×decoding cards
GENERAL


Power Consumption

≤ 50W (not including HDD)

≤ 165W (including HDD)

Operating Temperature-10°C to 55°C (14°F to 131°F)
Operating Humidity10% to 90% (noncondensing)
Weight≤ 10.0 Kg


Dimensions (D×W×H)

Height: 3U, support mounting in standard 19″ cabinet 477.1 mm × 481.6 mm × 130.5 mm (18.8”×19”×5.1”)

(including front panel)
