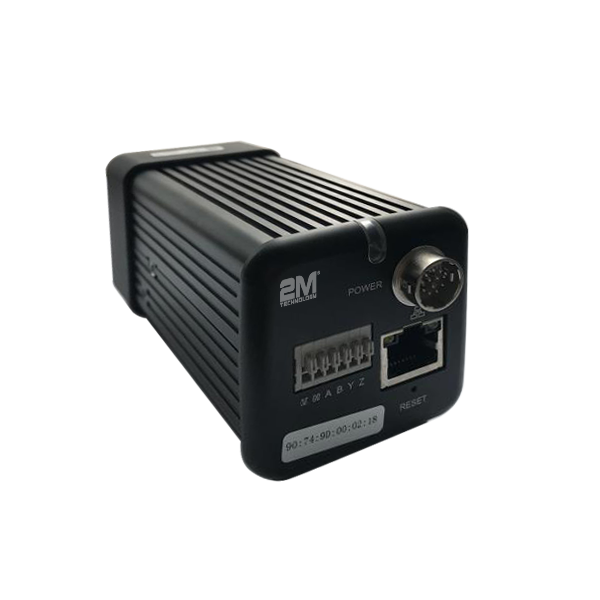

2MTH2-3828 Precise Cost Effective Corona Fighter Temperature Measurement Thermal Camera

  • Real-time temperature data transmitting
  • Auto focus, fast and precise temperature measuring Spot/line/area/isotherm analysis tools,
  • Compact size: easy to install in small spaces

Product Documents

The corona precision thermal camera fighter designed to detect high fever from mass movement of people. Designed for airport terminal and gate. Corona thermal fighter can be installed at international entry terminal in airports accross the nation to detect any individual with high fever. Once a person with high fever is detected they can be isolated from the crowd to eliminate or minimize cross infection. The CDC have stated a high fever is the most common symptom among the people infected with COVID-19 virus. Therefore, using thermal imagery to isolate people for further testing will drastically help spreading the covid-19 virus around. 2M Tehcnology designed thermal camera specifically for the ongoing dangerous pandemic of COVID-19 A.k.A the corona virus.

The challenge with using thermal cameras is the camera capability to track multiple faces simultaneously. Such applications are necessary with high traffic areas such as airports, subway stations, railway, bus stations etc. 2MTH2-3828 2nd generation was designed for that requirement.

Features:

  • Frequency 50Hz, Gigabit network: support temperature data transmitting real-time
  • Auto focus, fast and precise temperature measuring Spot/line/area/isotherm analysis tools, simpler and more flexible to retrieve temperature data
  • Compact size: easily install in small space
  • Support multi-protocols: TCP, UDP, ICMP, DHCP, RTSP
  • Patented intelligent compensated temperature measurement algorithm: accuracy of ±0.3°C

Imaging:

Weight4 lbs
IMAGING
DetectorVOx uncooled thermal FPA
Resolution384×288
TEMPERATURE MEASUREMENT
Measurement Range0°C~60°C
Accuracy±0.3°C@ 33°C~42°C of target temperature
Flux>100 people/minute
Measurement ModeIntelligent human face tracking and measuring
High Temperature AlarmPop out window, audible alarm, capture alarm
CONNECTOR
Network ProtocolTCP, UDP, ICMP, IGMP, DHCP, RTSP
Network ConnectorRJ45
LENS
Focal Length7.8mm
FocusAuto focus/manual focus
POWER SUPPLY






Network

Power voltage10~36V DC
@25°C Typical Consumption≤3W
Power ProtectionSupport over-voltage, under-voltage, reverse connection protection
POESupport
SOFTWARE
SDKSupport
Professional Analysis SoftwareSupport
GENERAL
Dimension55 x 55 x 119 (mm)(L x W x H)
Working temperature-10°C -+60°C
Storage temperature-20°C – +65°C
Shock30g, 11ms, all axes
Vibration4.3grandom vibration, all axes
Humidity5~95%, non-condensing
