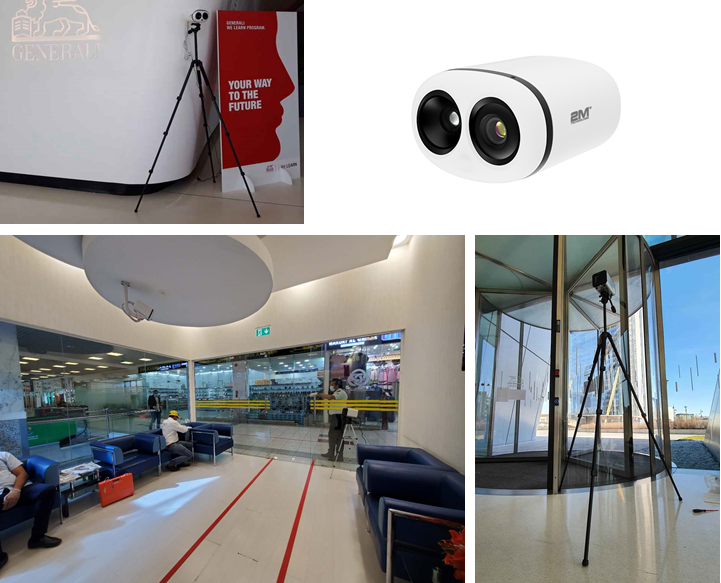

2MTHBB-4030 Body Temperature Detection Network Camera

  • On-board temp-detection algorithm
  • Sensitivity 40mK
  • Thermal: 8mm Fixed lens, Visible: 2.7-12mm motorized lens
  • Accuracy 0.3°C
  • Body detection, up to 16 Targets
  • Response Time 30ms

Product Documents

Features:

  • On-board temp-detection algorithm
  • One IP address two channels
  • Effective pixels 400×300
  • Sensitivity 40mK
  • Thermal: 8mm Fixed lens, Visible: 2.7-12mm motorized lens
  • Accuracy 0.3°C
  • Body detection, up to 16 Targets
  • Response Time 30ms
  • 17 color control
THERMAL CAMERA
Detector Type Uncooled IRFPA Microbolometer
Effective Pixels 400(H) ×300(V)
Pixel Size 17um
Thermal Sensitivity (NETD) 40mK @F1.0, 300K
Spectral Range 8~14um
Image Setting Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Con- trast/ ROI
Color Palettes Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes
THERMAL LENS
Lens Type Fixed
Focus Control Manual Focus
Focal Length 8mm
F No. F1.0
Angle of View H: 46°, V:35.3°
VISIBLE CAMERA
Image Sensor 1/1.9″ Sony CMOS
Effective Resolution 1920(H)×1080(V)
Shutter Speed 1/50 ~ 1/64,000s
Wide Dynamic Range True WDR 120dB
Min. Illumination Color: 0.01Lux @(F1.2, AGC ON) B/W: 0.001Lux @(F1.2, AGC ON)
S/N Ratio More than 55dB
Focal Length 2.7 ~ 12mm
Max Aperture F1.6~ F2.9
Angle of View 105°~ 32°
Focus Control Motorized
VIDEO AND AUDIO
Compression H.265, H.264, MJPEG




Frame Rate

Main Stream:

Thermal: D1 @25/30fps

Visible: 1920×1080/1280×720 @25/30fps Sub Stream:

Thermal: CIF @25/30fps

Visible: D1/VGA/640×360/CIF/QCIF/QVGA @25/30fps

Bit Rate Control CBR/VBR




Bit Rate



Thermal: 100Kbps~6Mbps Visible:

Main stream: 500Kbps~10Mbps; Sub stream: 100Kbps~6Kbps

Region of Interest Off / On (8 Zone, Rectangle)
Digital Zoom 16x
Mirror Support
Defog Support
Motion Detection Support
Privacy Masking Off / On (4 Area, Rectangle)
DVE Image Enhance Support
Audio Compression G.711, AMR, RAW_PCM (Optional)
INTELLIGENCE
Intelligent Functions Motion detection, Disk alarm, I/O alarm, Temperature alarm
IVS Smart Body Detection, Perimeter ,Single Virtual Fences

,Double Virtual Fences ,Object Left ,Object Removed

TEMPERATURE DETECTION
Detection Mode Body temperature monitoring
Detection Preset Max 16 goals
Temperature Alarm Over temperature alarm, Temperature difference alarm
Accuracy ≤ 0.3 °C (Emission rate, distance, ambient temperature,

etc.)

Response Time ≤30ms
Operating Temperature -20 °C ~ 60 °C (-4°F ~ 140°F)


Temperature display mode

Temperature target >5°C, Display absolute temperature value;

Temperature target ≤5°C, Display relative temperature value

(temperature difference DEV = highest value – average)

NETWORK
Ethernet RJ-45 (10/100Base-T)
Protocols: IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x
Interoperability ONVIF, CGI, SDK
Streaming Method Unicast
Max. User Access 10 Users


Edge Storage

NAS

Local PC for instant recording Micro SD card 128GB

Web Viewer <IE11, Chrome, Firefox
Web Language English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian
INTERFACE
Ethernet 1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface 1ch Audio In,1ch Audio Out
Alarm 2ch Alarm In,2ch Alarm Out
RS485 Support
BNC Output N/A
Reset Button Support (Built-in)
INTERFACE
Power Supply DC12V/POE (IEEE 802.3af)
Power Consumption Max 10W
Operating Temperature -30°C~60°C(-22°F~140°F)
Storage Conditions 0~ 90% RH
Certifications CE /FCC
Ingress Protection IP66
Casing Metal

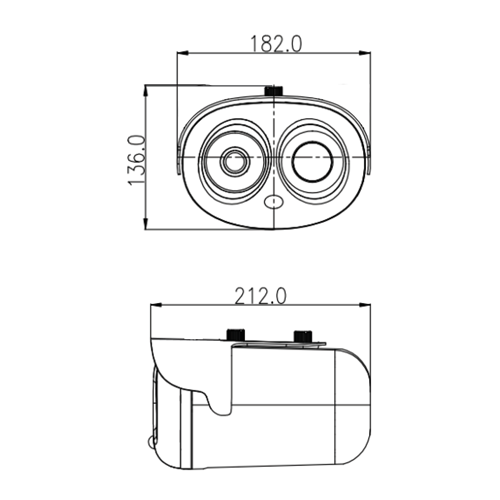

Dimensions 212×182×136mm
Net Weight 2Kg
