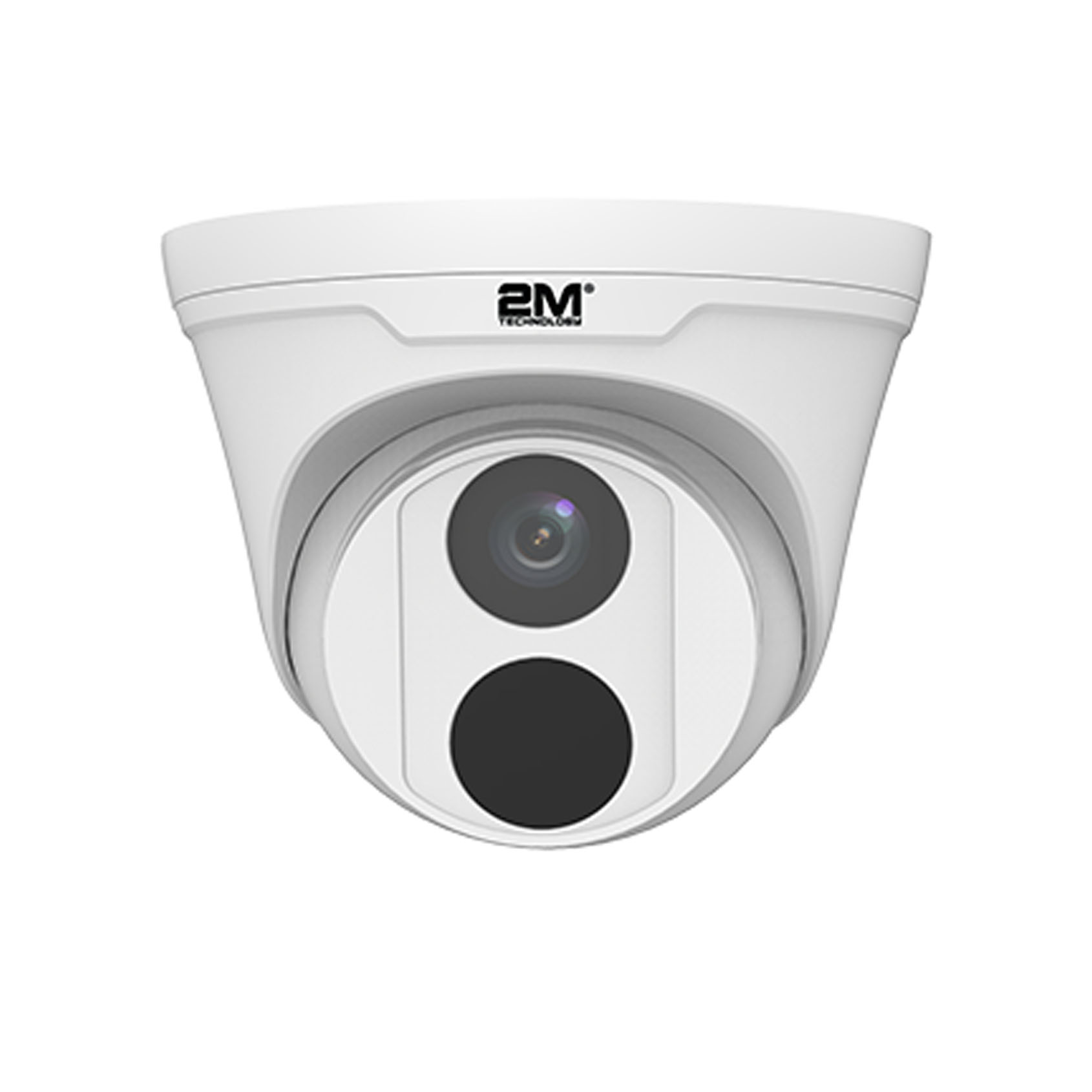

2MTIP-2MIR30U-P 2MP Fixed Dome Network Camera

  • Day/night functionality
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Smart IR, up to 30 m (98 ft) IR distance
  • 2D/3D DNR (Digital Noise Reduction)

Product Documents

2M Technology 2MP Fixed Dome Network Camera

Optics:

  • Day/night functionality
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Smart IR, up to 30 m (98 ft) IR distance
  • 2D/3D DNR (Digital Noise Reduction)

Compression:

  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor mode

Network:

  • ONVIF Conformance

Structure:

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • 4 KV surge protection designed for network interface
  • IP67

*Optional Plastic Body
*Optional 2.8mm lens and metal base

Weight0.73 lbs
Series

Professional Series

Resolution

2 Megapixel (1920 x 1080)

Signal Type

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Lens

Fixed 2.8mm Lens

Features

Audio Input

Behavior Detection

, ,

Ingress Protection

IP67

Camera
Sensor1/2.7″, 2.0 megapixel, progressive scan, CMOS
Lens2.8mm@F1.64.0mm@F1.6
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.84216.88.44.2
4.06024126
Angle of view (H)112.7°86.5°
Angle of View (V)60.1°44.1°
Angle of View (O)146.5°106.4°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 90°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.005Lux (F1.6, AGC ON)
0Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
HLCSupported
BLCSupported
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, QoS
Compatible IntegrationONVIF (Profile S, Profile T), API
Interface
Network1 RJ4510M/100M Base-TX Ethernet
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.5W
Dimensions (Ø x H)Φ126 x 94mm (Ø5.0” x 3.7”)
Weight0.33kg (0.73lb)
Working Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
