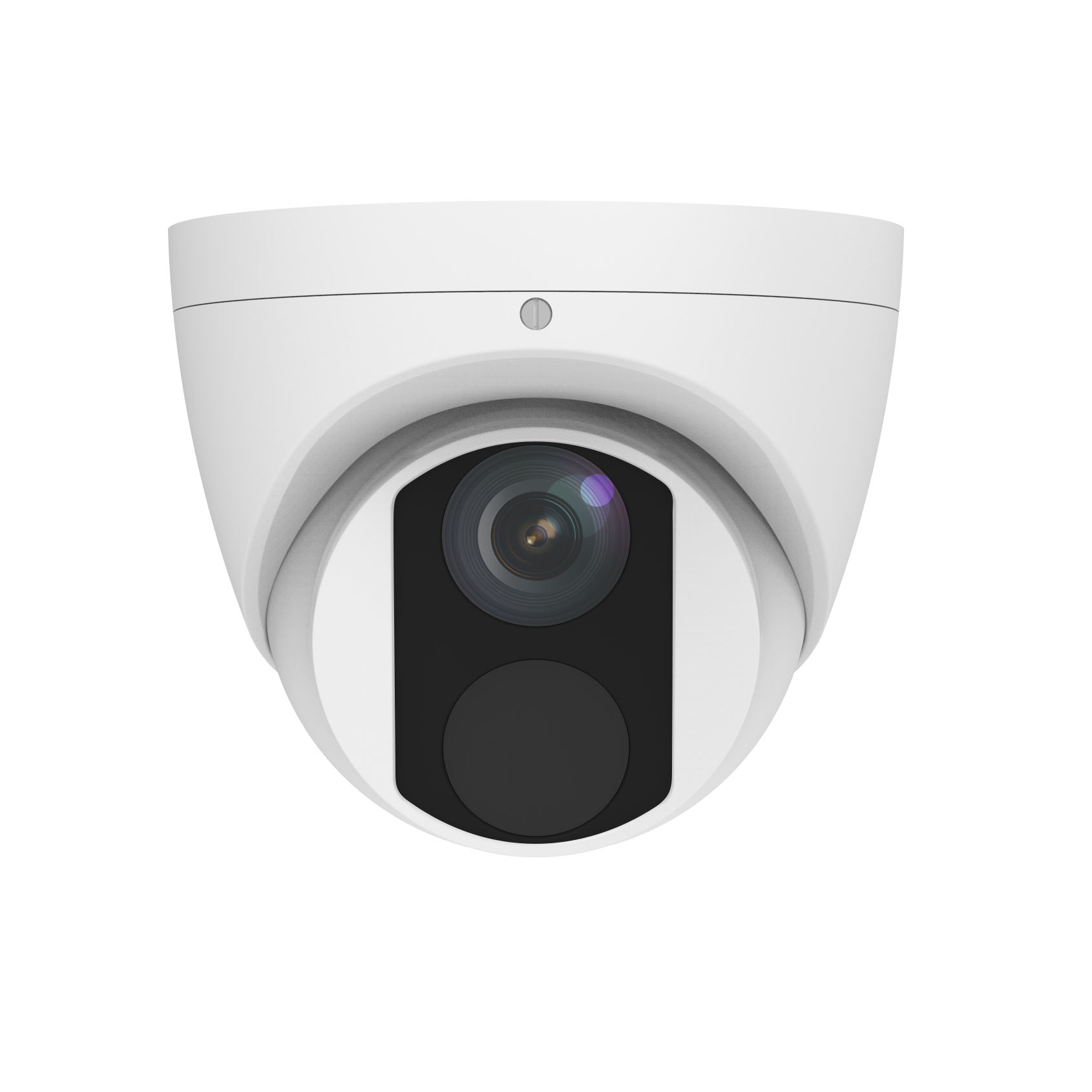

2MTIP-4KIR30-E 4K Fixed Dome Network Camera

REQUEST DEMO
  • 4K Resolution
  • Ultra 265,H.265,H.264,MJPEG
  • Up to 30m (98 ft) IR range
  • POE

Product Documents

Optics

  • Day/night functionality
  • Smart IR, up to 30 m (98 ft) IR distance
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265,H.265,H.264,MJPEG
  • Triple streams
  • ROI (Region of Interest)

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
  • Wide voltage range of ±25% IP67
  • 3-Axis



Weight .75 lbs
Dimensions 4.6 × 4.6 × 3.8 in
Lens

Fixed 2.8mm Lens

Ingress Protection

IP67

Night Vision Type

Infra Red (IR) LED

Resolution

4k – 8 Megapixel (3840 x 2160)

SPECIFICATIONS
CAMERA
Sensor 1/3″, 8.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0


DORI

Distance



Lens

Detect (m) Observe (m) Recognize (m) Identify (m)
2.8mm 84 33.6 16.8 8.4
Angle of view(H) 112.7°
Angle of View (V) 60.1°
Angle of View (O) 146.5°
Shutter Auto/Manual, 1~1/100000 s
Adjustment angle Pan: 0°~360°, Tilt: 0°~80°, Rotate:0°~360°


Min. Illumination

Color: 0.05 Lux (2.0, AGC ON)

0 Lux with IR

Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >56dB
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
VIDEO
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline Profile, Main Profile




Frame Rate

Main Stream:8MP (3840 x 2160): Max. 20 fps;5MP(2944 x 1656):

Max. 30 fps; 4MP(2560 x 1440): Max. 30 fps; 2MP(1920 x 1080):

Max. 30 fps

Sub Stream:720P (1280 x 720): Max. 20 fps

Third Stream:4CIF (704 x 576): Max. 20 fps

Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
DNR 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping NA
HLC Supported
BLC Supported
NETWORK


Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS
Compatible Integration ONVIF (Profile S+ Profile T), API


Client

EZStation EZView EZLive


Web Browser

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS
ONVIF (Profile S+ Profile T), API
INTERFACE
Network 10/100M Base-TX Ethernet
CERTIFICATIONS


Certifications

CE: EN 60950-1 FCC: FCC Part 15
GENERAL
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power Consumption Max 5W
Dimensions (Ø x H) Φ118×96mm (Φ4.6”×3.8”)
Net Weight 0.33kg (0.73lb)
Material Front cover: metal Rear cover: plastic Bracket: plastic Bottom plate: metal
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
Storage Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
Surge Protection 2KV
Ingress Protection IP67
