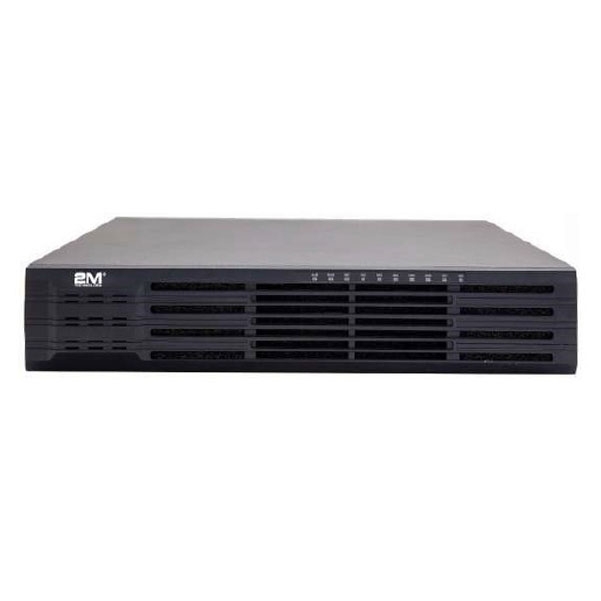

2M Technology 2MN-8432-P 4K PRO SERIES 32 Channel Network Video Recorder

• 32CH input
• Third-party IP cameras supported with ONVIF conformance
• 2CH HDMI, 1CH VGA, 1CH CVBS, HDMI2 at up to
• 4K (3840×2160) resolution
• Up to 12 Megapixels resolution recording
• H.265/H.264 video formats
• Accurate retrieval, instant playback

Product Documents

2M Technology 4K 32 Channel Network Video Recorder Features:

• 32CH input
• Third-party IP cameras supported with ONVIF conformance
• 2CH HDMI, 1CH VGA, 1CH CVBS, HDMI2 at up to
• 4K (3840×2160) resolution
• Up to 12 Megapixels resolution recording
• H.265/H.264 video formats
• Accurate retrieval, instant playback
• HDD hot swap with RAID1, 5 storage scheme configurable
• 8 SATA HDDs, Up to 8TB for each HDD
• VCA detection alarm and VCA search
• N+1 Hot spare
• 12V Power output
• P2P, UPnP, NTP, DHCP, PPPoE
• Support for mobile client access

Weight11.31 lbs
Signal Type

Number of Channels

PoE Channels

Internal Hard Drives SATA Ports

8 SATA Hard Drives

Resolution

4 Megapixel (2592 x 1520)

Series

Professional Series

VIDEO INPUT/ OUTPUT
IP Video Input 32CH
Two-way Audio Input 1CH, RCA
NETWORK
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 320Mbps
Remote Users 128
VIDEO/AUDIO OUTPUT

HDMI/VGA Output HDMI 1 / VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720
/60Hz, 1024×76/60Hz 8
HDMI 2: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz,1600×1200 /60Hz,
1280×1024 /60Hz, 1280×720/60Hz, 1024×768 /60Hz
CVBS Output 1CH, BNC
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1CH, RCA
Synchronous Playback 16CH
DECODING
Live View/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Compression H.265 / H.264
Capability 4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20,
16 x 1080P@25, 32 x 720P@25, 64 x D1
HARD DISK
SATA 8 SATA interfaces
Capacity up to 8TB for each HDD
DISK ARRAY
Array Type RAID1, RAID5
EXTERNAL INTERFACE
Network Interface 2 RJ -45 10M/100M/1000M self-adaptive Ethernet Interfaces
Serial Interface 1 x RS232, 1 x RS485
USB Interface Rear panel: 2 x USB2.0, 1 x USB3.0
Alarm In / Out 16CH / 4CH
Power Output 12 VDC
GENERAL
Power Supply 100 ~ 240VAC
Consumption (without HDD) ≤ 20W
Working Temperature -10°C ~ + 55°C (+14°F ~ +131°F)
Working Humidity 10% ~ 90%
Dimensions 86 x 442 x 531 (mm) [3.4″ x 17.4″ x 19.9″ (in.)]
Weight ≤ 5.13 Kg (11.31 lb)
