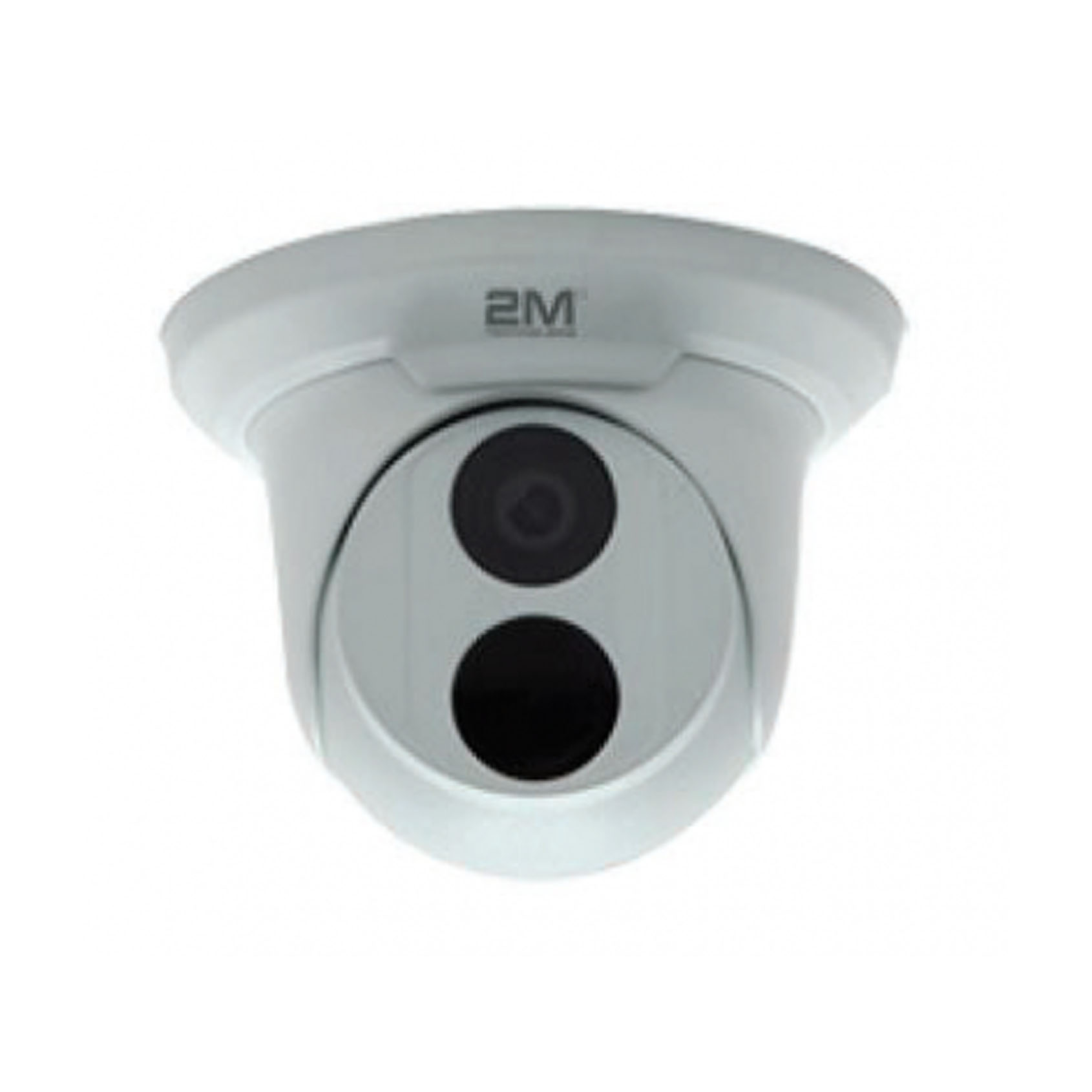

2MTIP-4MIR30U-P 4MP Network IR Fixed Turret Camera
Key Features:
-Smart IR
-WDR
-Ultra 265, H.265, H.264, MJPEG Compression
-ONVIF Conformance
-4 KV Surge Protection
-IP67
Product Documents
The 4MP Network IR Fixed Turret Camera is built with 4 KV surge protection designed for network interface. The product includes up to 120 dB WDR (Wide Dynamic Range) along with day/night functionality to produce better images in indoor or outdoor environments. In addition, the “Smart IR” illumination feature allows the camera to shoot up to 98 feet IR distance. Lastly, with a durability rating of IP67, the product can also withstand extreme weather conditions.
Optics
- Day/night functionality
- Up to 120 dB WDR (Wide Dynamic Range)
- Smart IR, up to 30 m (98ft) IR distance
Compression
- Ultra 265, H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- 9:16 corridor format
Network
- ONVIF Conformance
Structure
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- 4 KV surge protection designed for network interface
- IP67
| Weight | 0.73 lbs |
|---|---|
| Series | Professional Series |
| Resolution | 4 Megapixel (2592 x 1520) |
| Signal Type | |
| Night Vision Distance | 30 Meters (100 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Lens | Fixed 2.8mm Lens |
| Features | Audio Input |
| Ingress Protection | IP67 |
| Camera | |||||||
| Sensor | 1/3″, progressive scan,4.0 megapixel, CMOS | ||||||
| Lens | 2.8mm@F1.8 | 3.6mm@F1.8 | 6mm@F1.8 | ||||
|
DORI Distance |
Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||
| 2.8mm | 63 | 25.2 | 12.6 | 6.3 | |||
| 3.6mm | 81 | 32.4 | 16.2 | 8.1 | |||
| 6mm | 135 | 54 | 27 | 13.5 | |||
| Angle of view(H) | 104.4° | 86.4° | 49.9° | ||||
| Angle of View (V) | 67° | 53.2° | 32.9° | ||||
| Angle of View (O) | 135.7° | 112.3° | 61.4° | ||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, 1/6~1/100000 s | ||||||
|
Minimum Illumination |
Color: 0.02 Lux (F1.8, AGC ON)
0 Lux with IR |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >52 dB | ||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| AWB(Auto white balance) |
Auto/manual |
||||||
| Gain Control | Auto/manual | ||||||
| Video | |||||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||||
|
Frame Rate |
Main Stream: 4MP (2592×1520): Max. 20 fps,4MP (2560×1440): Max. 25 fps,3MP (2048×1520): Max. 30 fps;
Sub Stream: 2MP (1920×1080): Max. 30 fps; Third Stream: D1(720×576) : Max. 30fps |
||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Smart | |||||||
| Behavior Detection | Intrusion, cross line, motion detection | ||||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||||
| cross line | Cross a pre-defined virtual line | ||||||
| motion detection | Moving within a pre-defined virtual region |
| Recognition | Face detection Audio detection |
| Intelligent Identification | Defocus, Scene Change |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Network | |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S), API |
| Interface | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|
Power |
12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 5.5W | |
| Dimensions (Ø x H) | Φ126 x 94 mm (Ø5.0” x 3.7”) |
| Weight | 0.33 kg (0.73lb) |
| Operating Conditions | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~ 95% RH(non-condensing) |
| Ingress Protection | IP67 |
