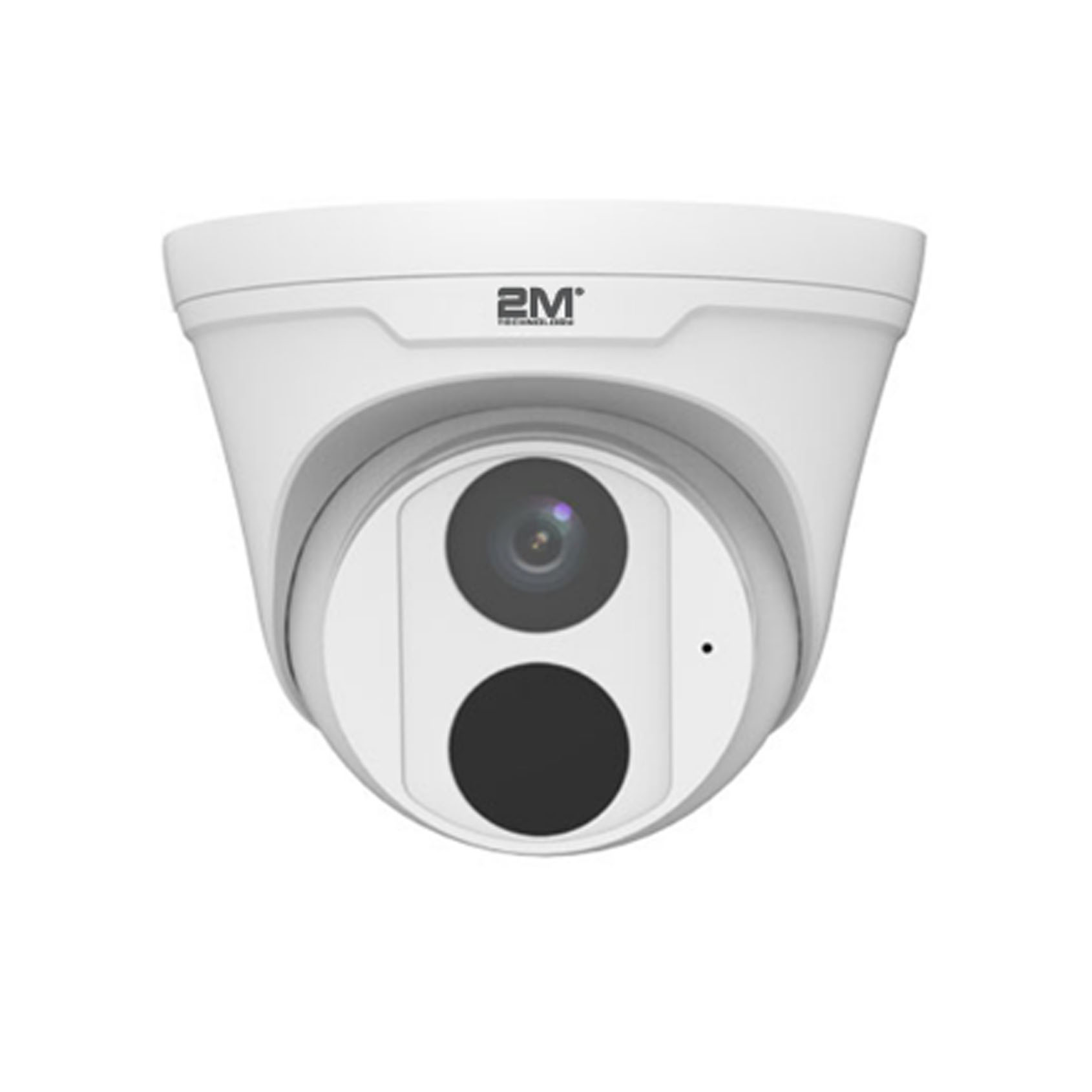

2MTIP-5MIR30-GS 5MP Fixed Dome Network Camera

  • Day/night functionality
  • Smart IR, up to 30m (98 ft) IR distance
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • ROI (Region of Interest)

Product Documents

Optics:

  • Day/night functionality
  • Smart IR, up to 30m (98 ft) IR distance
  • Up to 120 dB Optical WDR(Wide Dynamic Range)

Compression:

  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • ROI (Region of Interest)

Network:

  • ONVIF Conformance

Structure:

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
  • 3-Axis



Weight0.73 lbs
Dimensions4.6 × 4.6 × 3.8 in
CAMERA
Sensor1/3″, 5 megapixel, progressive scan, CMOS
Lens2.8mm@F2.0




DORI Distance

Lens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)


2.8mm



63



25.2



12.6



6.3

Angle of View(H)105.6°
Angle of View (V)69.9°
Angle of View (O)137.3°
Adjustment AnglePan: 0°~360°Tilt: 0°~80°Rotate: 0°~360°
ShutterAuto/Manual, 1~1/100000 s
Minimum IlluminationColor: 0.01 Lux (F2.0, AGC ON)

0 Lux with IR on

Day/NightIR-cut filter with auto switch (ICR)
Digital Noise Reduction2D/3D DNR
S/N> 52dB
IR RangeUp to 30m (98 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
WDR120dB
VIDEO
Video CompressionUltra 265, H.265, H.264, MJPEG




Frame Rate

Main Stream: 5MP (2592×1944), Max 25fps; 4MP(2560×1440), Max 30fps; 3MP (2304×1296), Max 30fps; 1080P(1920×1080),

Max 30fps; Sub Stream: 720P (1280×720), Max 25fps;

Third Stream: 4CIF (704×576), Max 25fps

H.264 code profileBaseline Profile, Main Profile
Video Bit Rate128 Kbps~16 Mbps
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 4 areas
Motion DetectionUp to 4 areas



White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°
DewarpingNA
HLCSupported
BLCSupported
AUDIO
Audio CompressionG.711
SuppressionSupported
Sampling Rate8KHZ
STORAGE
Edge StorageMicro SD, up to 128 GB
Network StorageANR
NETWORK
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible IntegrationONVIF (Profile S, Profile T), API


Client

EZStation EZView EZLive




Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
INTERFACE
Network1 RJ45 10M/100M Base-TX Ethernet


Built-in Mic

Supported
GENERAL


Power

DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Dimensions (Ø x H)Ø 118 x 96 (mm) / Ø 4.6” x 3.8” (in)
Net Weight0.33kg (0.73lb)
MaterialMetal + Plastic
Working Environment-30°C ~ 60°C (-22°F ~ 140°F),

Humidity: ≤95% RH (non-condensing)

Strorage Environment-30°C ~ 60°C (-22°F ~ 140°F),

Humidity: ≤95% RH (non-condensing)

Surge Protection2KV
Ingress ProtectionIP67
