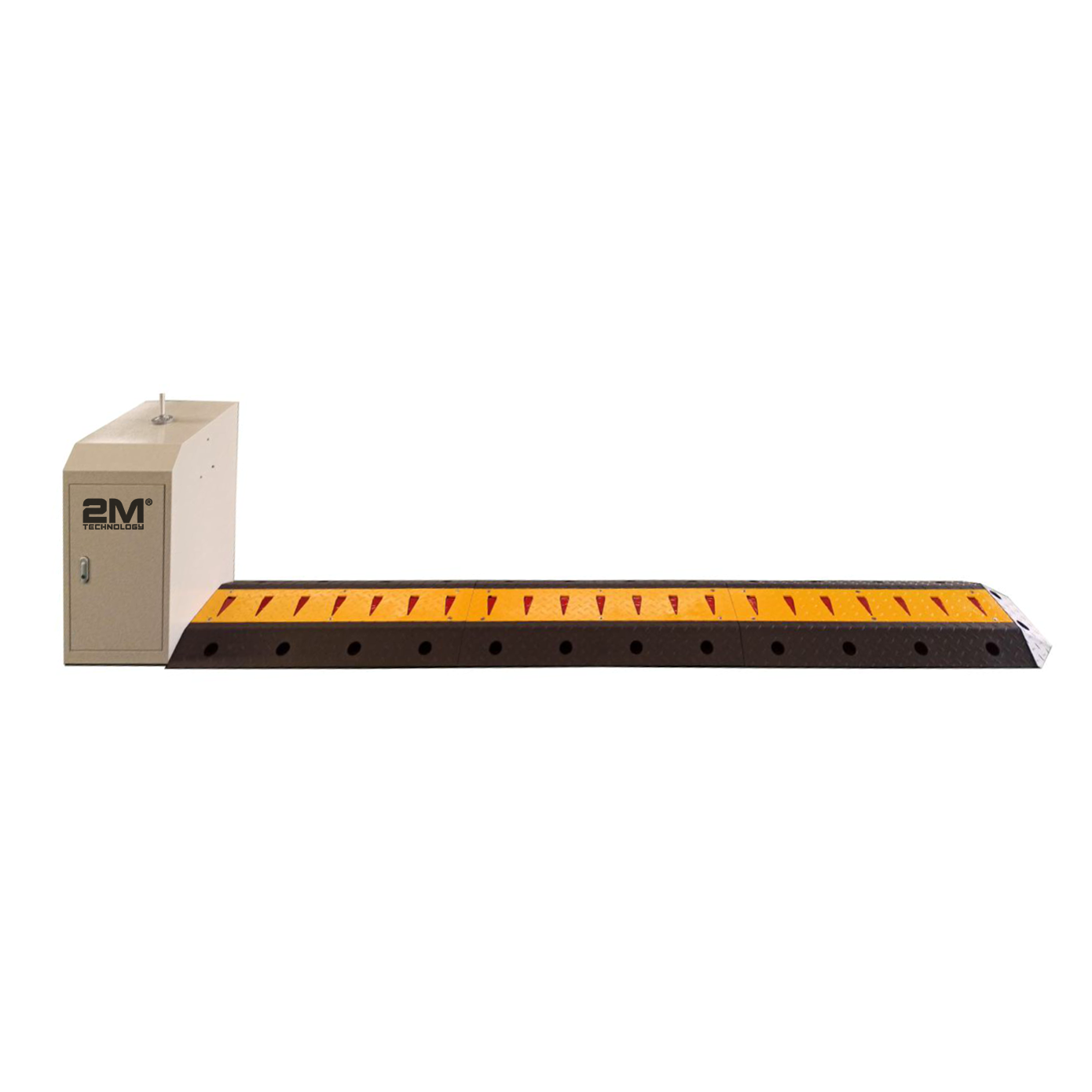

2MTK Tire Killer Speed Bump
- Available in several sizes fron 13ft to 26ft
- Intercept height is 2.2 inches
- Easy to set up and operate
Product Documents
Download
Tire killer, also known as the broken Tire device was originally designed to prevent vehicles avoiding toll stations. The product can be operated by manually or via remote control. The tire spikes can slow down vehicles with the tire puncture function, it is the essential in facilities to prevent vehicles forcibly entering. Ensures the safety for people and property. The tire killer’s
main framework is composed of A3 steel plate and steel plate blades, and has an integrated electronic-mechanical control device which helps intercept unauthorized vehicles and terrorists, and is reliable, safe and easy to operate.
Note: Product is priced higher with additional features. Contact our representative for more information.
Available Models
| MODEL NUMBER | DIMENSIONS (LxWxH) mm/ft |
| 2MTK-13 | 4000 x 500 x 63 (mm) Intercept Height: 55mm /
13.1 x 1.6 x 0.2 (ft) Intercept Height: 2.2″ in |
| 2MTK-17 | 5000 x 500 x 63 (mm) Intercept Height: 55mm /
16.4 x 1.6 x 0.2 (ft) Intercept Height: 2.2″ in |
| 2MTK-20 | 6000 x 500 x 63 (mm) Intercept Height: 55mm /
19.7 x 1.6 x 0.2 (ft) Intercept Height: 2.2″ in |
| 2MTK-23 | 7000 x 500 x 63 (mm) Intercept Height: 55mm /
22.9 x 1.6 x 0.2 (ft) Intercept Height: 2.2″ in |
| 2MTK-26 | 6000 x 500 x 63 (mm) Intercept Height: 55mm /
26.2 x 1.6 x 0.2 (ft) Intercept Height: 2.2″ in |

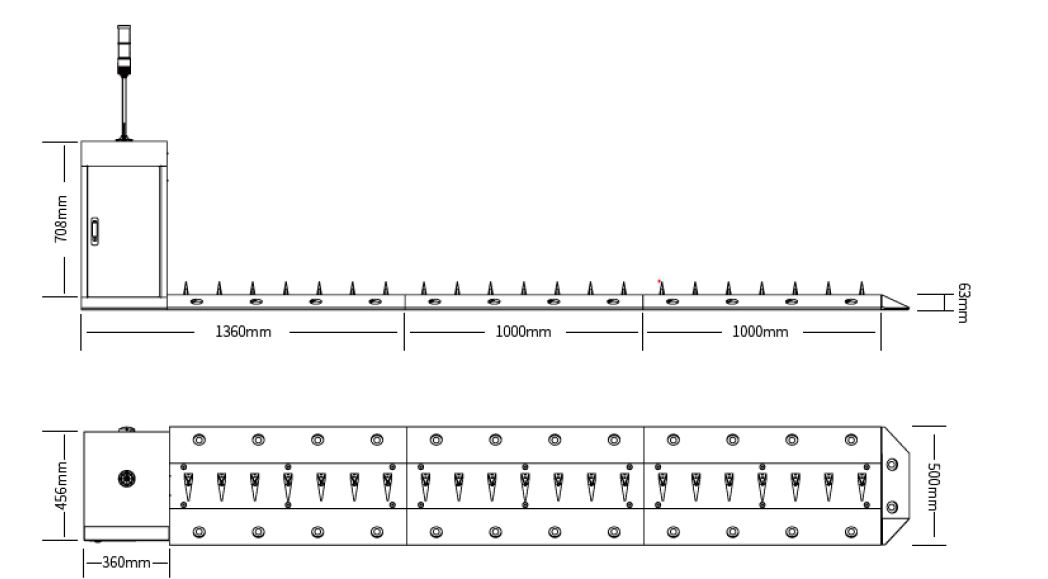

Dimensions
| Dimensions | 13.1 × 1.3 × 0.3 in |
|---|---|
| Country of Origin | China |
| Full Dimension | (Intercept Length+360mm) x 500 x 708 (mm) (Intercept Length+14.2″) x 19.7″ x 27.9″ (in) |
|---|---|
| Intercept Parts Dimension (LxWxH) | (Various Lengths Available) x 500 x 63 (mm) (Various Lengths Available) x 19.7″ x 2.5″ (in) |
| Controller Modular Dimension (LxWxH) | 1360 x 360 x 708 (mm) / 53.5″ x 14.2″ x 27.9″ |
| Controller Modular Weight | 170kg (included 1m/ Tire killer) |
| Tire Killer Length (Intercept Width) | 3m, 4m, 5m, 6m, 7m, 8m / 9.84ft, 13.1ft, 16.4ft, 19.7ft, 22.9ft, 26.2ft |
| Each Assembly Modular Length | 1 meters / 3.3ft |
| Each Assembly Modular Weight | 84kg if 4m/185.2lbs if 13.1 ft product total weight is 170kg + 84kg x 3m = 422kg / product total weight is 374lbs + 185.2lbs x 9.8ft = 930.4lbs |
| Expansion Screws | 8 pcs M14 expansion screws per meters |
| Materials | A3 steel |
| Distance between blocking spikes | 140mm /5.5″ in (i.e. Tire Killer 4m/13.1ft: 28 Blocking Spikes) |
| Blocking Spikes Intercept Height | 55mm/2.2″ in |
| Blocking Spikes Thickness | 10mm / 0.39″ in |
| Rising Time | ≤2s |
| Top Plate Thickness | 10mm/ 0.39″ in (Q235 Material anti-slip decorative pattern board) |
| Weight Capacity | Static load 100 tons, through load 200 tons |
| Surface Treatment | Anti-erosion / powder coated |
| Movement Principle | Electromechanical |
| Mode of Application | Assembly or Combination Type |
| Controller Cabinet (LxWxH) | 456 x 360 x 708 (mm) / 18″ x 14.2″ x 27.9″ (in) |
| Control Mode | Remote or Button |
| Remote Control Distance | ≥30m (≥98.4ft) |
| Traffic Light | Optional |
| Type of Use | Intensive |
| Operating Voltage | 220V (+/- 10%) 50/60HZ (Optional) |
| Rated Power | 260W |
| Emergency Manual Operation (Power Off) | Yes |
| Structure and Spike Color | Standard Yellow / Black, Spikes is Red, Optional |
| Operating Temperature | -40°C ~ 70°C |
| Operating Humidity | ≤90% |
