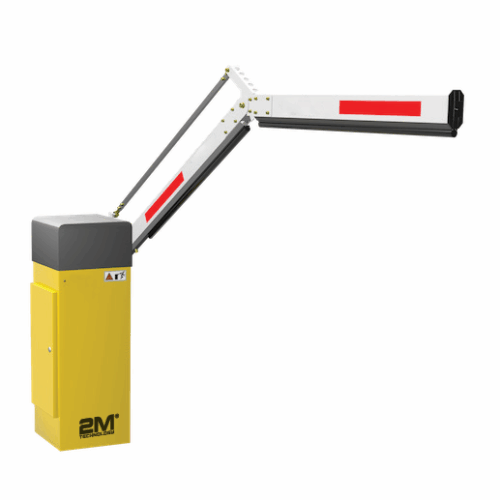

2MAGB-NCN Limited Ceiling Intelligent Barrier Gate (DC Brushless Servo Torque Motor)

  • Normal-speed of open / close: 2~6 sec. adjustable
  • Octagonal crank arm with rubber bar
  • Speed will vary due to bar length:
    • – 2~3 sec./ Max. 13.1′ ft
    • – 4~6 sec. / Max. 16.4′ ft
  • Includes of arm x1, swing-off, remote x2, air switch x1, push button x1 to open/close barrier

The pricing is subject to change with customization. Allow 4-6 weeks for delivery.

Product Documents

  • Normal-speed of open / close: 2~6 sec. adjustable
  • Octagonal crank arm with rubber bar, length following (or Max. 11.5′ ft round arm):
    • 2~3 sec./ Max. 13.1′ ft
    • 4~6 sec. / Max. 16.4′ ft
  • Includes of arm x1, swing-off, remote x2, air switch x1, push button x1 to open/close barrier
  • Boom bracket, swing-off and LED Bar are sold separately
  • Housing color optional: yellow (default)/orange/white/red/blue
  • Arm direction can be changed to left or right swing without changing parts
Dimensions37.4 × 12.5 × 12.9 in
Ingress Protection

IP54

Stainless Steel Types

GATE FEATURE
Power SupplyAC 85~264V, 50~60HZ, 50W
Motor50W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle
Remote (Optional)Distance ﹥ 65.6' ft
Spring1~3 pcs. spring balance
Controller80C51 MCU, 20MHz, PWM variable frequency servo controller board
Loop Detector Inputpulse width 100﹥ ms
IR Detector Inputpulse width 100﹥ ms
Up & Down Inputpulse width 100﹥ ms
Traffic Light OutputAC220V output power (passive), current Max. 3A/AC220V
Loop Detector Syn. OutputRelay NO output; Current Max.0.5A/AC220V, or Max. 1A/DC12V
RS485 Interface9600bps, ASCII decimal encoded
Arm1.8" x 3.9" in. aluminum alloy octagonal arm with rubber bar, Max. 19.7' ft Round arm with foam, Max. 11.5' ft
Housing6.6' ft cold-roller sheet, IP54
Housing Size (HxWxD)950×320×329mm / 37.4" x 12.5" x 12.9" (in.)
Package Size1100×480×430mm / 43.3" x 18.8" x 16.9" (in.)
Gross Weight~ 46kg / 101lb
Operating Temperature-30°C to 55°C / -22°F to 131°F
Humidity10%-95%
