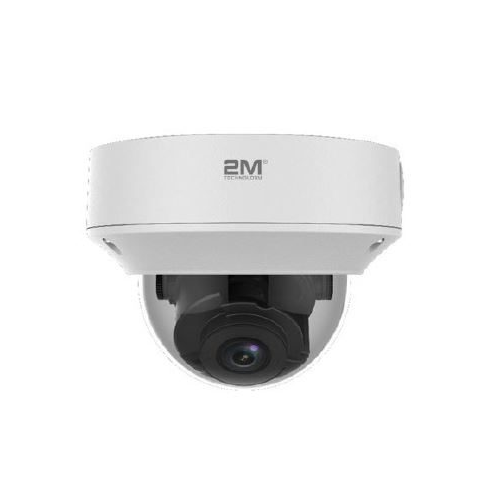

2MVIP-2MIR304XUASL-C 2MP WDR Starlight Vandal-resistant Network IR Fixed Dome Camera

  • •Day/night functionality
  • SmartIR, up to 30 m (98 ft) IR distance
  • •Up to 120 dB OpticalWDR(Wide Dynamic Range)
  • •Starlight illumination
  • •2D/3D DNR (Digital Noise Reduction)

Product Documents

Optics•

  • Day/night functionality
  • • SmartIR, up to 30 m (98 ft) IR distance
  • • Up to 120 dB OpticalWDR(Wide Dynamic Range)
  • • Starlight illumination
  • • 2D/3D DNR (Digital Noise Reduction)

Compression

  • • Ultra 265,H.265, H.264, MJPEG
  • • ROI (Region of Interest)
  • • Triple streams
  • • Customized OSD

Network

  • • ONVIF Conformance

Structure

  • • Support PoE power supply
  • • Built-in PoE splitter that outputs DC 12V
  • • Wide temperature range: -40°C to 60°C (-40°F to 140°F)
  • • Wide voltage range of ±25%
  • • IK10 vandal resistant
  • • IP67
  • • 3-Axis
Weight 2 lbs
Series

Corporate Series

Resolution

2 Megapixel (1920 x 1080)

Signal Type

Night Vision Distance

30 Meters (100 feet)

Lens

4x Optical Zoom

Night Vision Type

Infra Red (IR) LED

Features

Ultra WDR 120DB, Starlight, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input

Alarm I/O

Edge Storage

,

Ingress Protection

IP67

CAMERA
Sensor 1/2.8″, progressive scan ,2.0 megapixel, CMOS
Lens 2.8~12 mm@F1.4


DORI Distance

Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 41.9 16.8 8.4 4.2
12mm 209.5 83.8 41.9 20.9



Angle of View (H) 105°~33°
Angle of View (V) 58.4°~14.9°
Angle of View (O) 136.5°~40.6°


Adjustment
Angle

Pan: 0°~360°
Tilt: 0°~80°
Rotate:0°~360°
Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination Color: 0.001 Lux (F1.4, AGC ON)

0Lux with IR

Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
IR Range Up to 30m (98 ft) IR range
S/N >52dB
WDR 120dB
VIDEO
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile


Frame Rate

Main Stream:2MP (1920×1080): Max. 30 fps;

Sub Stream:2MP (1920×1080): Max. 30 fps;

Third Stream:D1 (720×576): Max. 30 fps

HLC Supported
BLC Supported
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 24 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
AUDIO
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8 KHZ
STORAGE
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
NETWORK
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF(Profile S, Profile G), API
INTERFACE


Audio I/O

Audio cable
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O 1/ 1
Network 10M/100M Base-TX Ethernet
Video Output 1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
Power Output DC12V Power Output With PoE
GENERAL


Power

DC12V±25%,PoE (IEEE802.3 af)
Power consumption: Max.7.2 W (PoE :Max.8.2 W)
Dimensions(Ø xH) Φ148 x 111.3 mm (Ø5.8” x 4.4”)
Weight 0.92 kg (2.0 lb)
Working Environment -40°C ~ +60°C (-40°F ~ 140°F), Humidity: ≤95% RH

(non-condensing)

Ingress Protection IP67
Vandal Resistant IK10
Reset Button Supported
