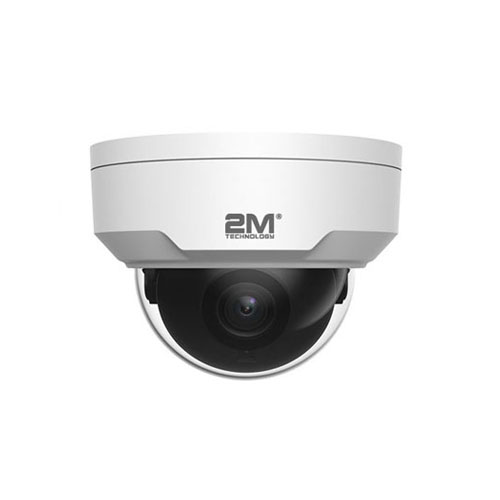

2MVIP-4MIR30-GS 4MP Network Vandal Dome Camera with Motorized Lens

REQUEST DEMO
  • Smart IR, up to 30m (98ft) IR distance
  • Up to 120 dB WDR (Wide Dynamic Range)
  • IK10 vandal resistant
  • IP67
  • MStar Chip
  • NDAA Compliant

Product Documents

Key Features:
Optics

  • Day/night functionality
  • Smart IR, up to 30m (98ft) IR distance
  • Up to 120 dB WDR (Wide Dynamic Range)
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265, H.265, H.264, MJPEG
  • ROI (Region of Interest)
  • Customized OSD

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
  • Wide input voltage range of ±25%
  • IK10 vandal resistant
  • IP67
  • 3-Axis
  • NDAA Approved
Weight 1.7 lbs
Resolution

4 Megapixel (2592 x 1520)

Signal Type

Lens

Motorized 2.8-12mm Lens

Series

Essential Series

Features

D-WDR, Motion Detection, Privacy Mask, Region of Interest ROI

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Ingress Protection

IP67

CAMERA
Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0


DORI

Distance

Lens Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3
Angle of View (H) 95.8°
Angle of View (V) 55.2°
Angle of View (O) 124.5°
Adjustment angle Pan: 3° ~ 360°, Tilt: 0° ~ 68°, Rotate: 3° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Color: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital Noise Reduction 2D/3D DNR
S/N >56dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
VIDEO
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main Profile




Frame Rate

Main Stream: 4MP (2688×1520), Max 30fps; 4MP (2560×1440), Max 30fps; 3MP (2304×1296), Max 30fps;1080P(1920×1080),Max30fps

Sub Stream: 4CIF (704×576), Max 30fps; Third Stream: CIF (352×288), Max 30fps

Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping NA
HLC Supported
BLC Supported
AUDIO
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
STORAGE
Edge Storage Micro SD, up to 256GB
Network Storage ANR
NETWORK


Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation, EZView, EZLive




Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
AUDIO


Audio I/O

Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
Network 10M/100M Base-TX Ethernet
CERTIFICATIONS
Certifications CE: EN 60950-1, FCC: FCC Part 15
GENERAL


Power

DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Dimensions (Ø x H) Φ108.7 x 81.1mm (Ø4.3” x 3.2”)
Net Weight 0.45kg (0.99lb)
Material Metal + Plastic


Working Environment

-35°C ~ 60°C (-31°F ~ 140°F)

Humidity: ≤95% RH (non-condensing)



Storage Environment

-35°C ~ 60°C (-31°F ~ 140°F)

Humidity: ≤95% RH (non-condensing)

Surge Protection 2KV
Ingress Protection IP67
Vandal Resistant IK10
