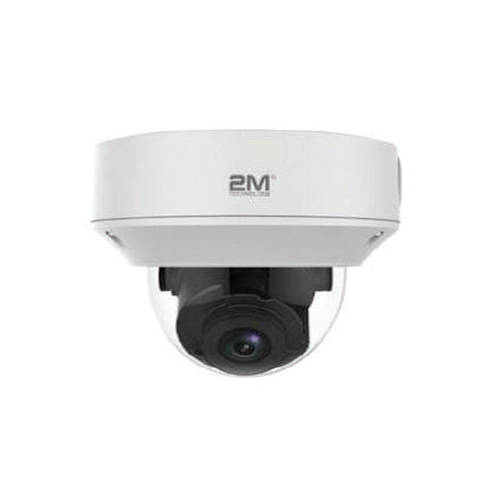

2MVIP-4MIR30VUA-P 4MP WDR Network IR Fixed Dome Camera (DISCONTINUED)
- Sensor: 1/3?, progressive scan ,4 megapixel, CMOS
- Pan Tilt Zoom Angle: Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
- IP Rating: IP67
- Camera Illumination: Color: 0.05Lux@( F1.4,AGC ON); B/W: 0.005Lux@( F1.4,AGC ON)
- WDR: 120 dB
Note: Due to our continued product research and development, 2mtechnology Inc. reserves the right to amend all the technical specifications without prior notice.
Product Documents
This Network IR Fixed Dome Camera is an effective optical security camera. For example, the product has 4 megapixels and is equipped with PTZ wide-angle lens capability of 2.8mm. With built-in Smart IR illumination, this professional equipment is great for indoors or outdoors in areas up to 98 feet. The camera also includes day/night functionality and low light surveillance. In addition, this IR Fixed Dome Camera comes with 2D/3D Digital Noise Reduction. It also has a durability rating of IP67 and up to 120db Wide Dynamic Range.
Key Features
Optics
- Day/night functionality
- SmartIR, up to 30m (98 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- Low light surveillance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
Network
- ONVIF Conformance
Structure
- Built-in PoE splitter that outputs DC 12V
- Wide temperature range: -40°C to 60°C (-40°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
| Weight | 2 lbs |
|---|---|
| Series | Professional Series |
| Resolution | 4 Megapixel (2592 x 1520) |
| Signal Type | |
| Lens | Fixed 2.8mm Lens |
| Night Vision Distance | 30 Meters (100 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Features | Ultra WDR 120DB, Audio Input |
| Alarm I/O | |
| Behavior Detection | |
| Edge Storage | |
| Ingress Protection | IP67 |
| Camera | |||||||
| Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8 ~ 12mm@F1.4 | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | |||
| 12 | 270 | 108 | 54 | 27 | |||
| Angle of View (H) | 91.0° ~ 27° | ||||||
| Angle of View (V) | 54.4° ~ 13.7° | ||||||
| Angle of View (O) | 118.3° ~ 33.2° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.005Lux (F1.4, AGC ON) 0Lux with IR on |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >55dB | ||||||
| IR Range | Up to 30m (98ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
| Frame Rate | Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Two-way audio | Supported | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
| Interface | |||||||
| Audio I/O | Audio cable | ||||||
| Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 7.2W | |||||||
| Dimensions (Ø x H) | Φ148 x 111.3mm (Ø5.8” x 4.4”) | ||||||
| Weight | 0.92kg (2.0lb) | ||||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Ingress Protection | IP67 | ||||||
| Vandal Resistant | IK10 | ||||||
| Reset Button | Supported | ||||||
